Short Scale StingRay Hero Image
Watch Videos Buy Now
Short Scale StingRay Logo

Short Scale StingRay Bassは、一般的なベースよりもフレットの間隔が短いショート・スケール(30インチ・スケール)を採用することで演奏性を高めています。そして小ぶりなこの筐体からは、アタックの効いた豪快なサウンドを出力します。ネオジム・マグネットを採用した高出力のパッシブ・ハムバッキング・ピックアップは、ショート・スケール・ベース用として特別に設計されており、特徴的かつ温かみのあるトーンを実現しました。エレクトロニクスには、パラレル/シングルコイル/シリーズ・モードを備えた3ウェイ・ロータリー・スイッチを採用。また、スティングレイ・スペシャルと同様に、モダン・クラシック・ブリッジをマウントし、22フレットを確保したステンレススチール製のフレットや、新開発となる、より細かいギア比を採用した軽量のペグを標準装備しています。

Short Scale StingRay Logo

オプション

Goldbar

Black Sparkle

Black Cherry Burst

Kiwi Green

Blood Orange

Vintage Blue Pearl

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Short Scale StingRay Highlights

Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Highlight
演奏時の快適さを確保するため、丸みを帯びたアーム・コンターを備えたアッシュ・ボディ。
Short Scale StingRay Highlight
プッシュ/プッシュによりゲイン・ブーストのオン/オフを切り替えるボリューム・ポットと、3ポジション・ロータリー・ピックアップ・スイッチを搭載。
Short Scale StingRay Highlight

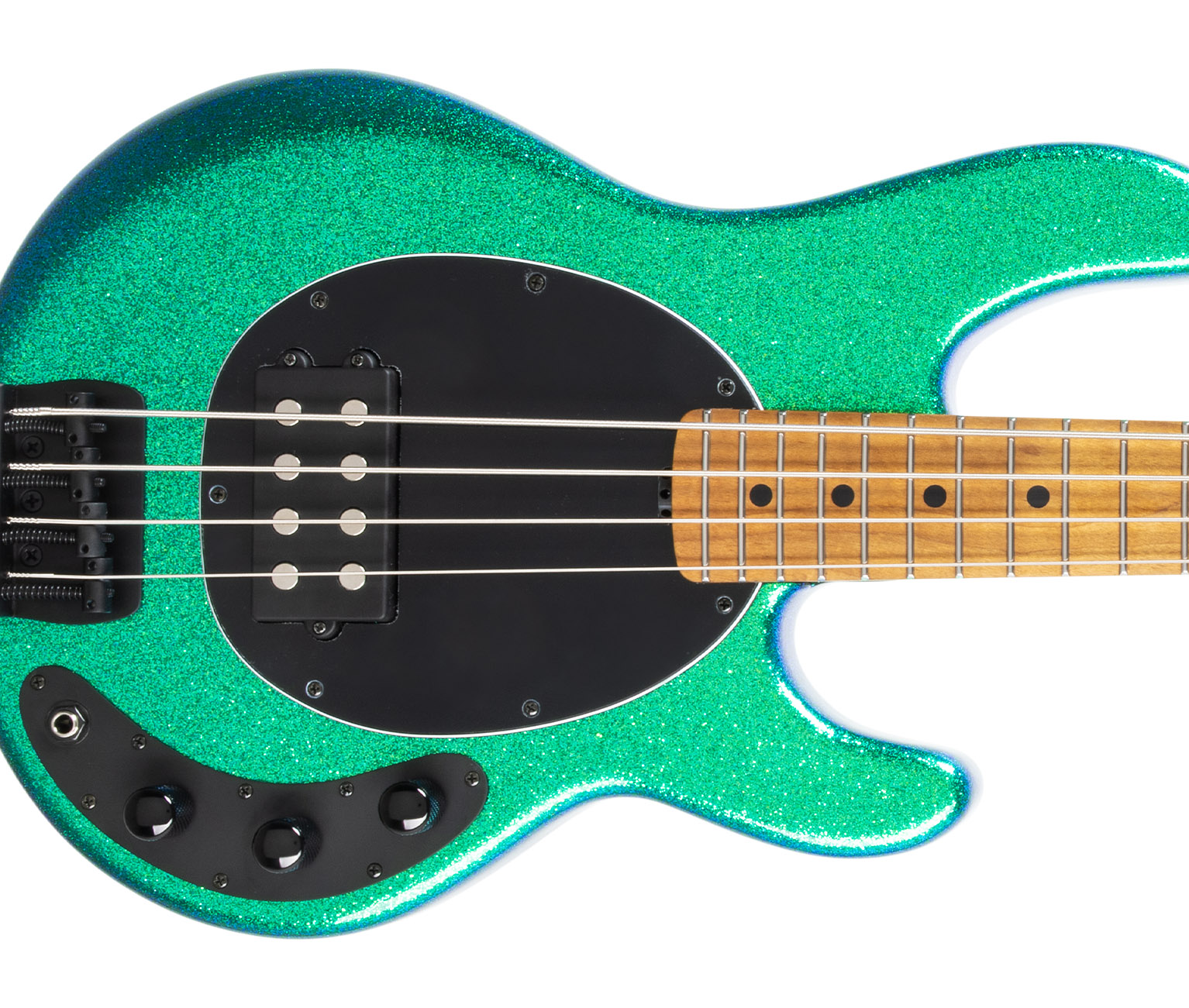

ネオジム・ハムバッキング・ピックアップを搭載したパッシブのエレクトロニクス。

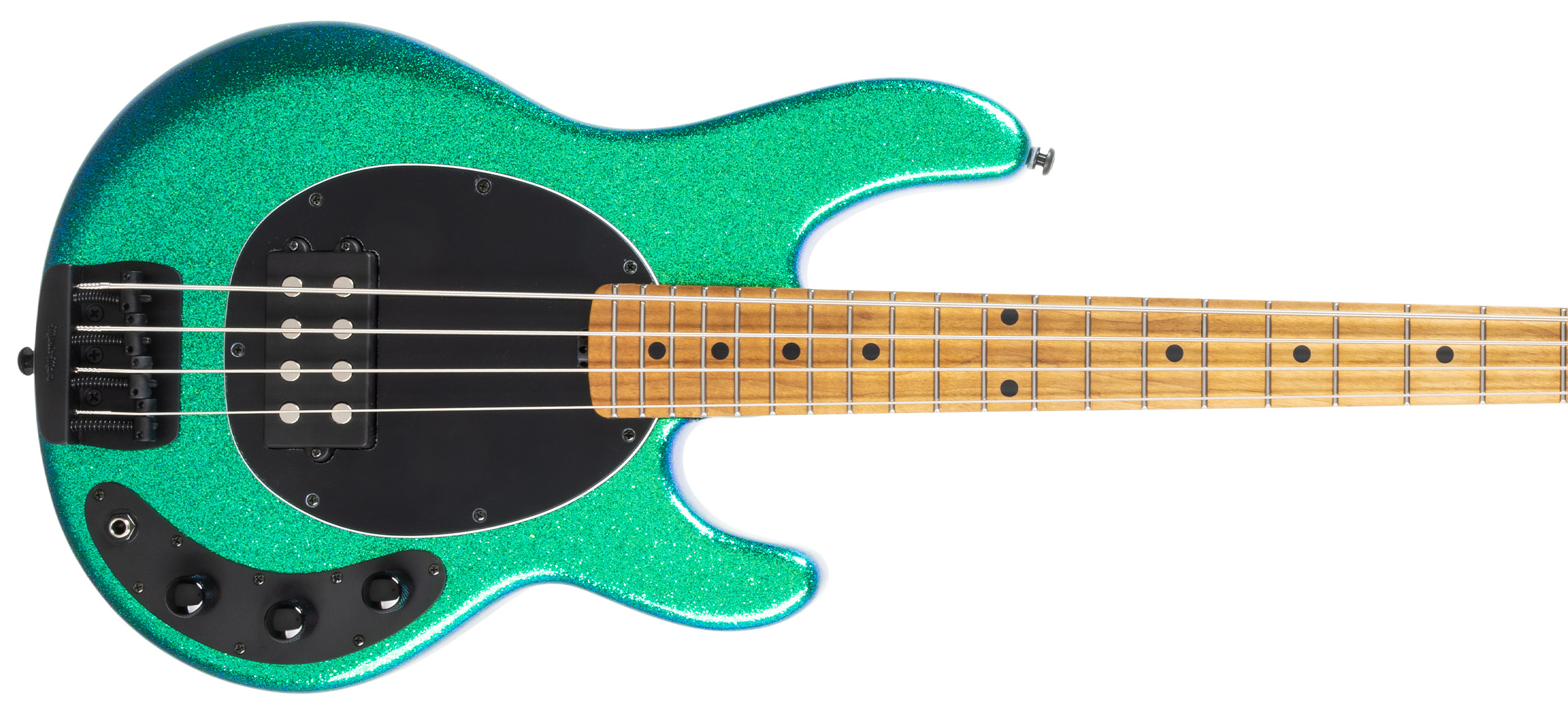

BUILT FROM THE GROUND UP

Optimized, modernized, yet so familiar, the new Short Scale StingRay bass is tailor-made for today's most discerning players

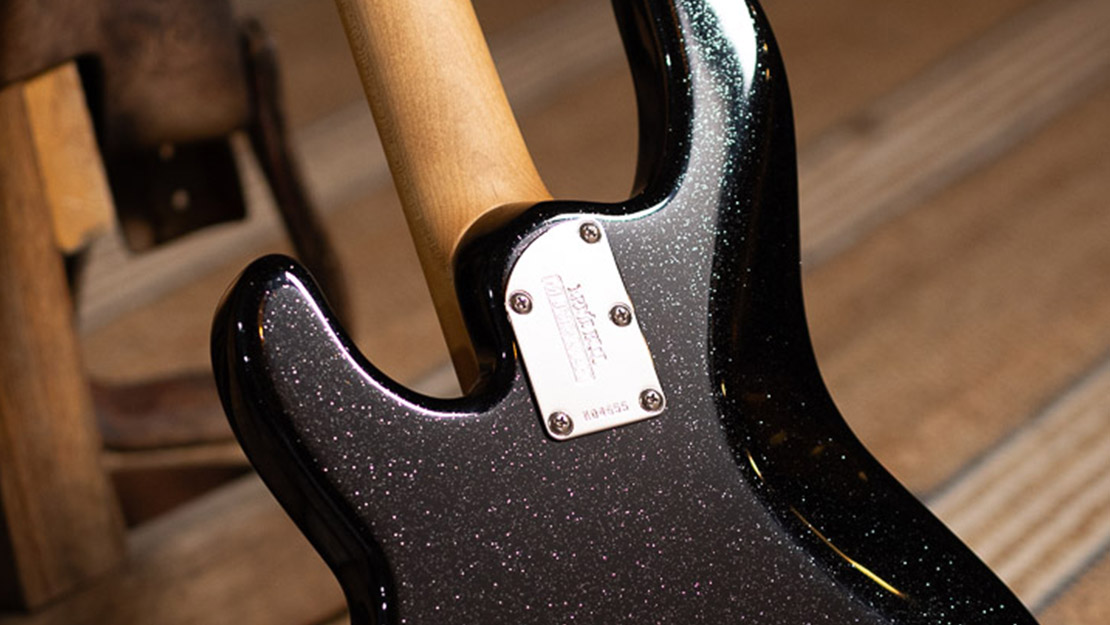

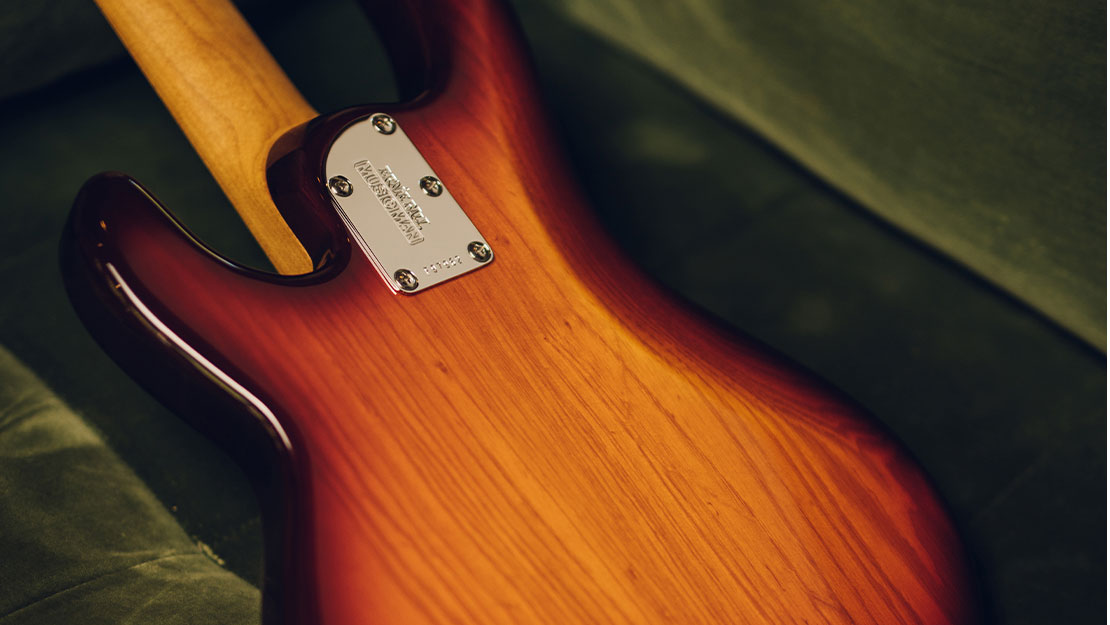

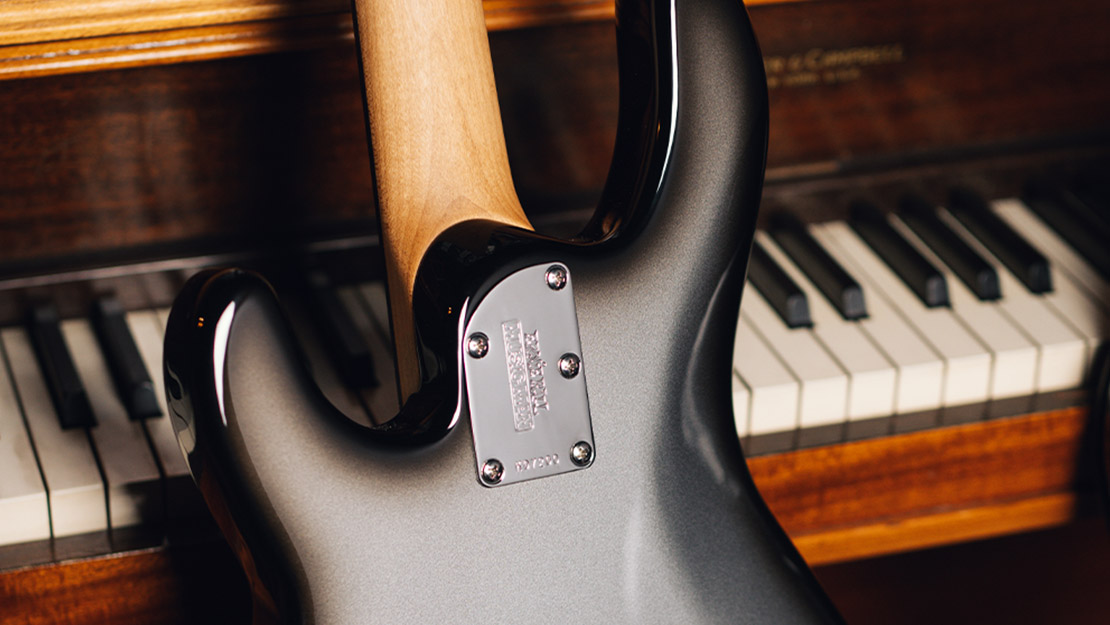

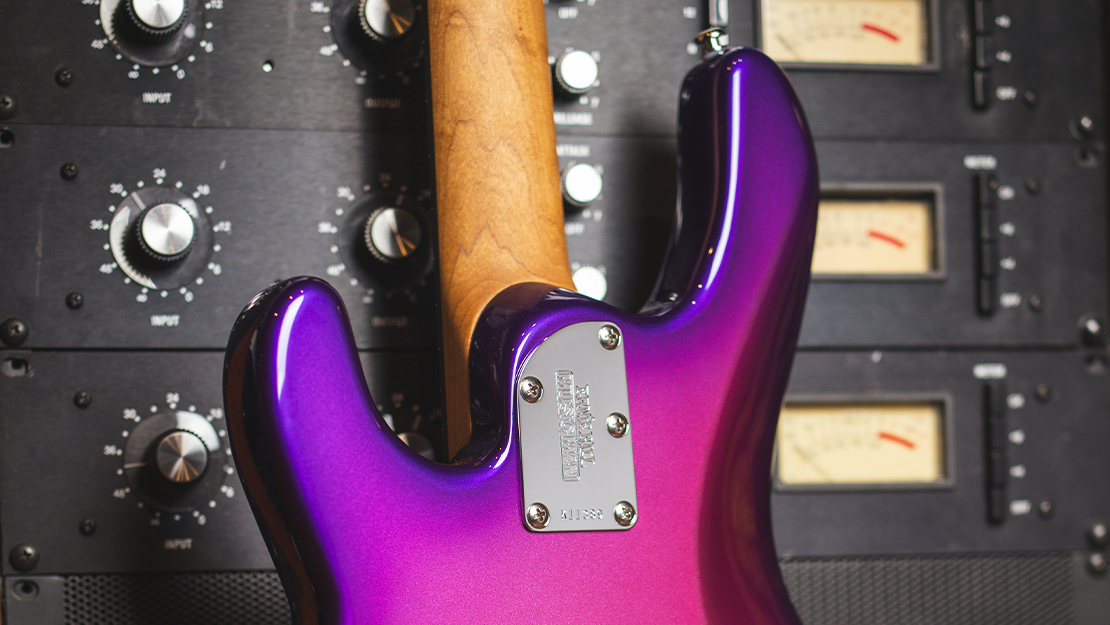

5-BOLT SCULPTED NECK JOINT

The sculpted neck joint provides uninhibited access to all 22 stainless steel frets atop roasted maple necks.

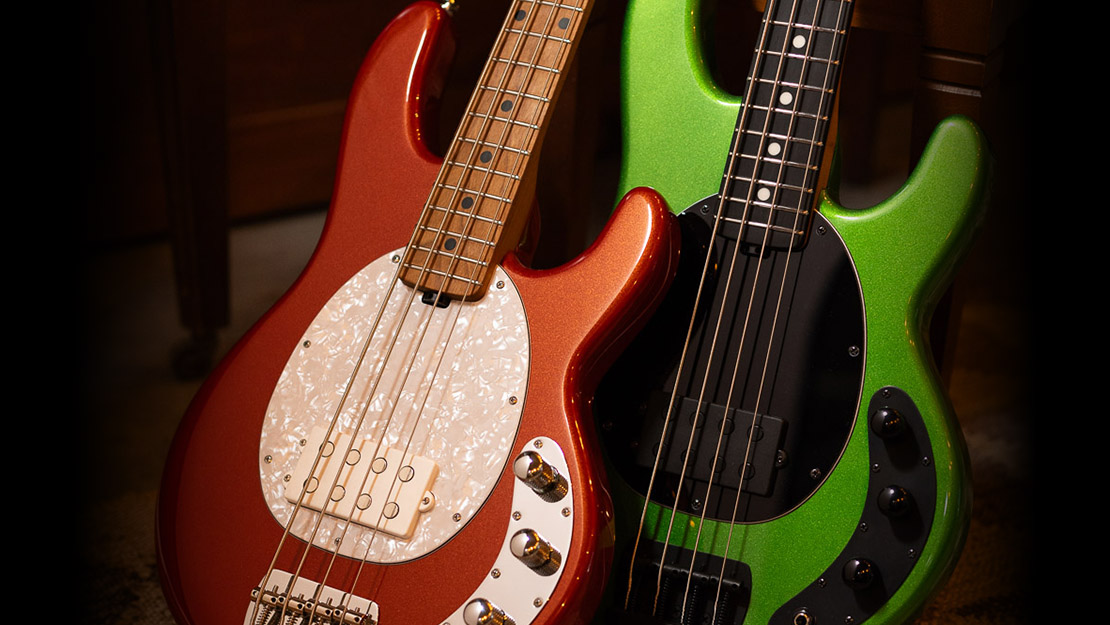

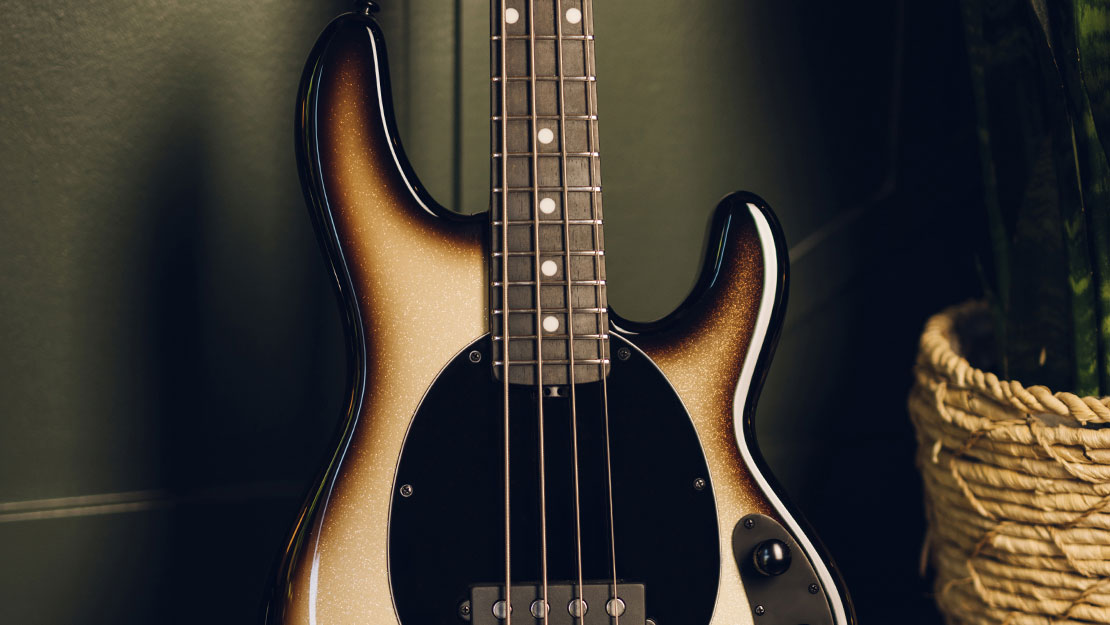

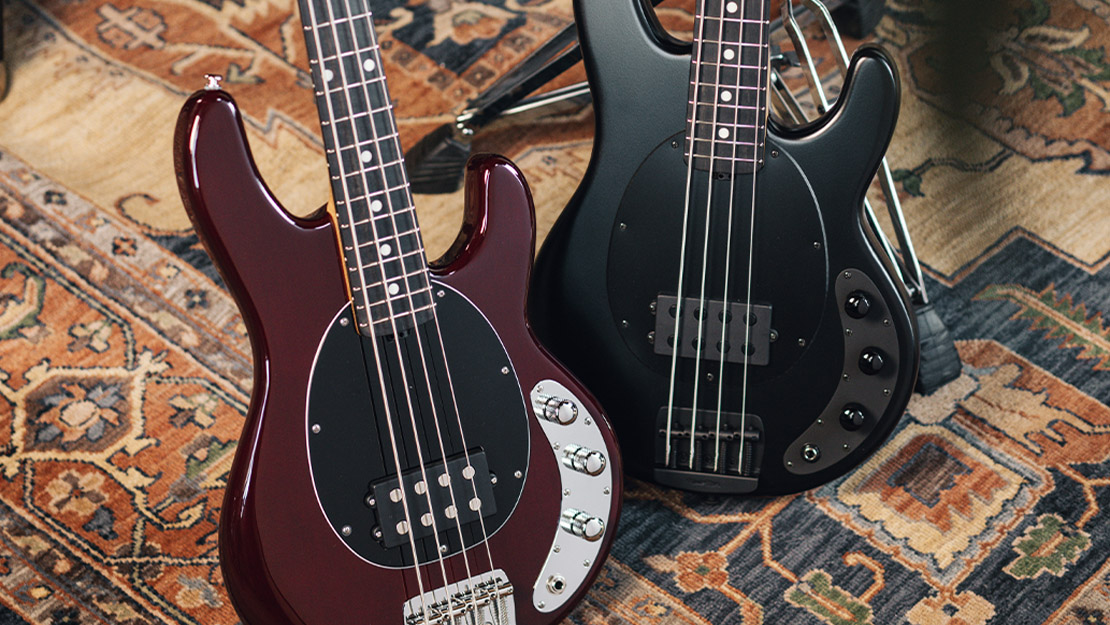

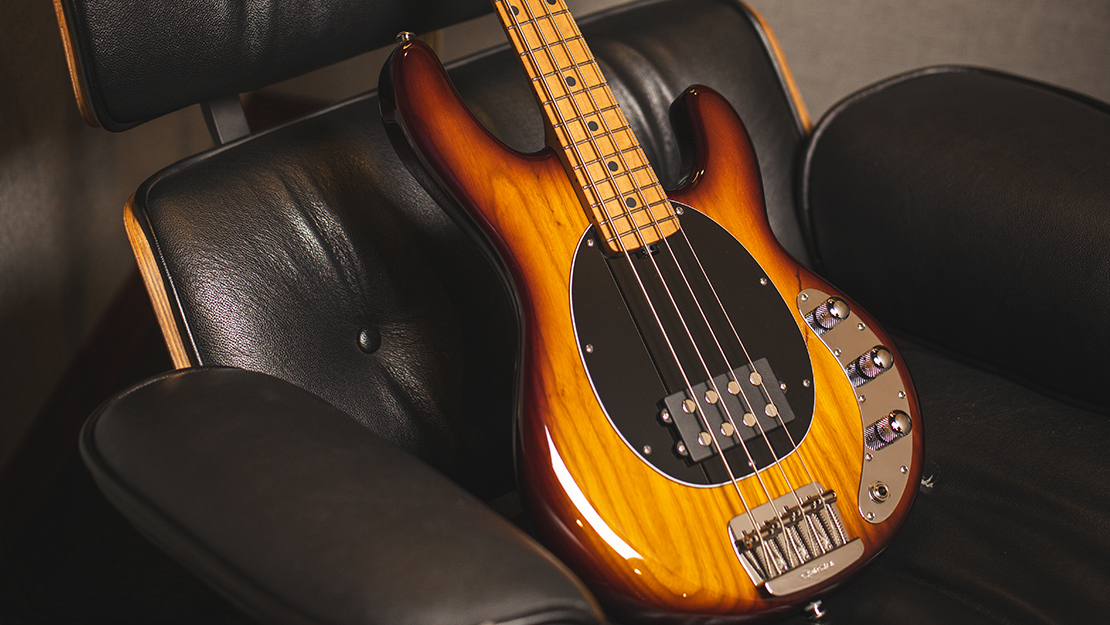

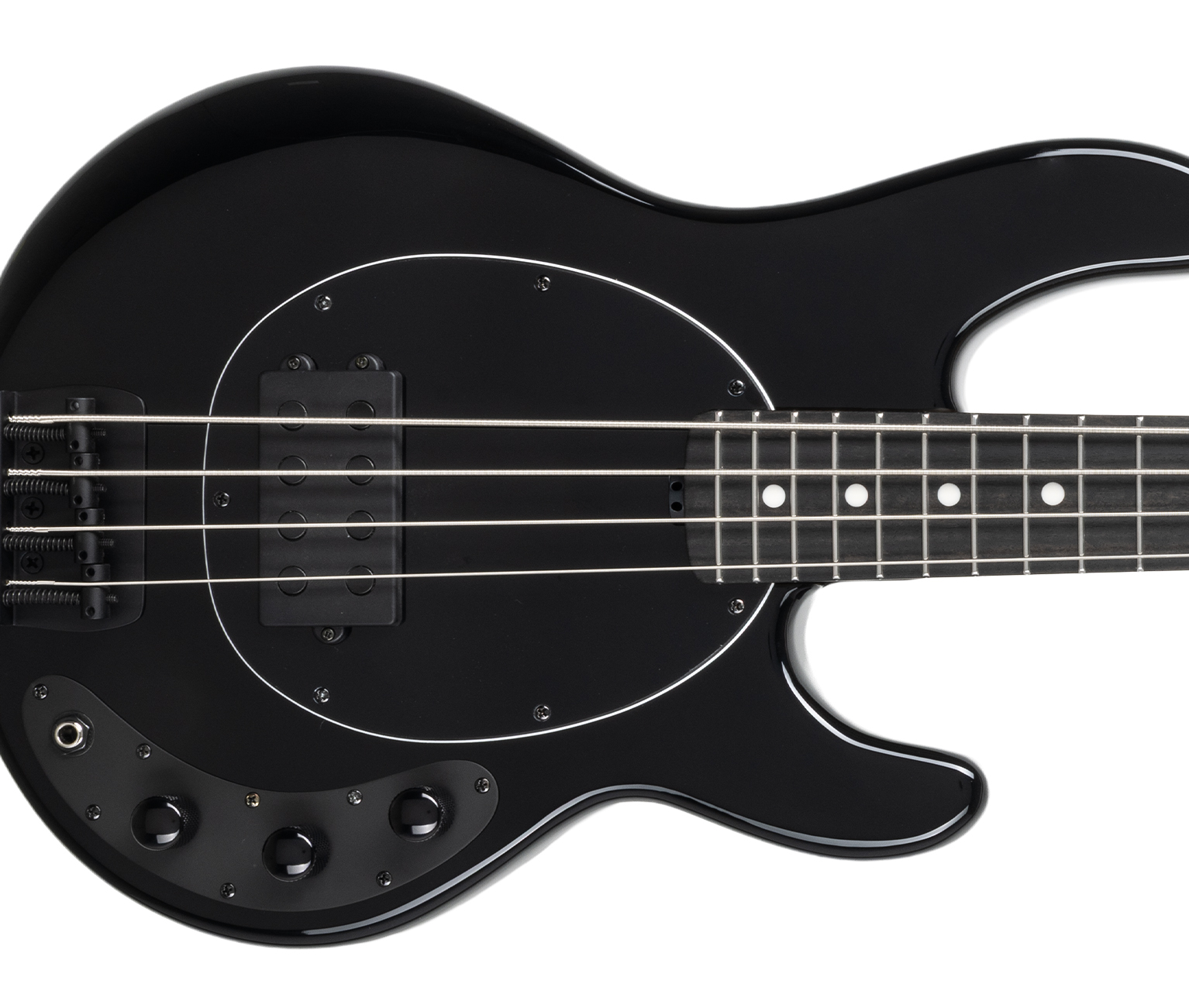

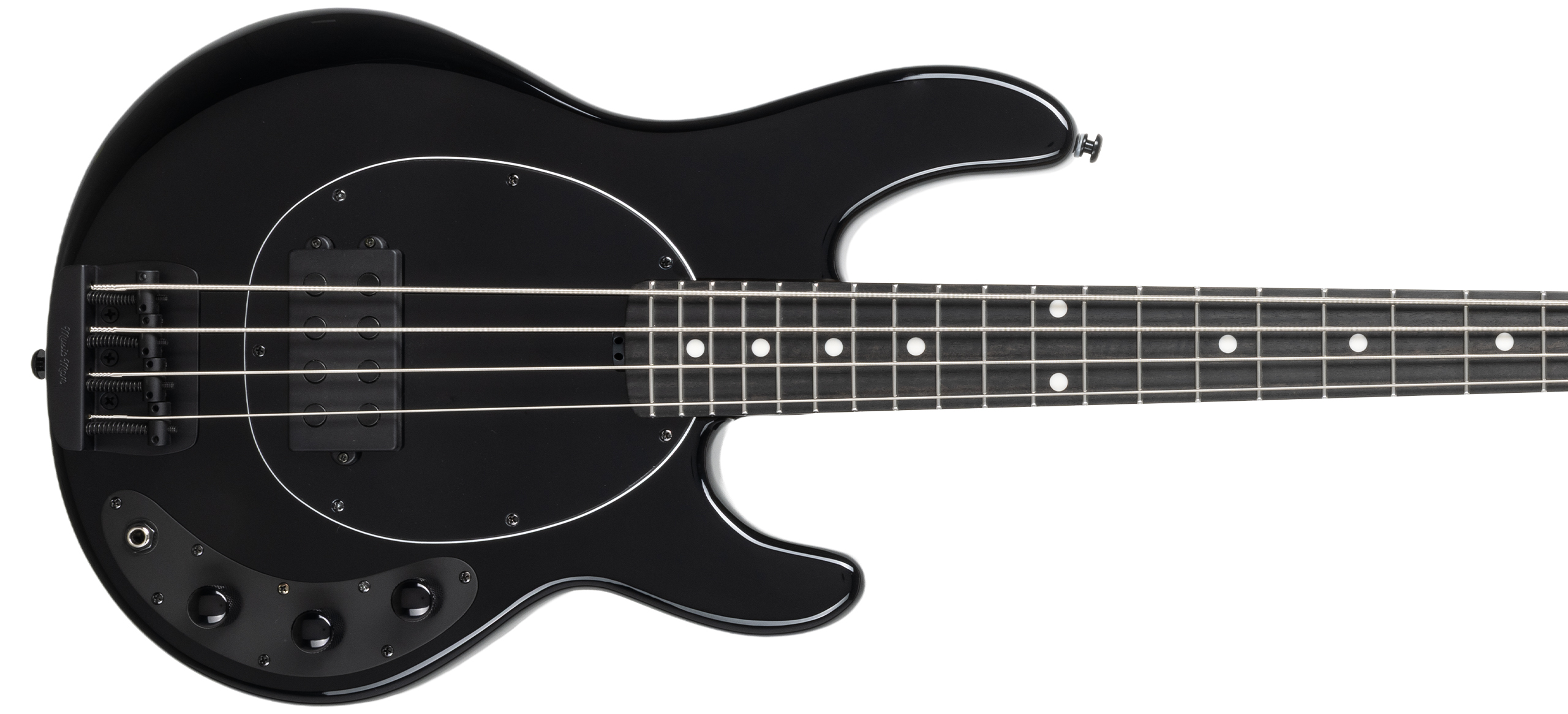

REFINED BODY CONTOURS

Enhanced body contours are rounded for more comfort in any playing position while retaining that revered, iconic StingRay sound.

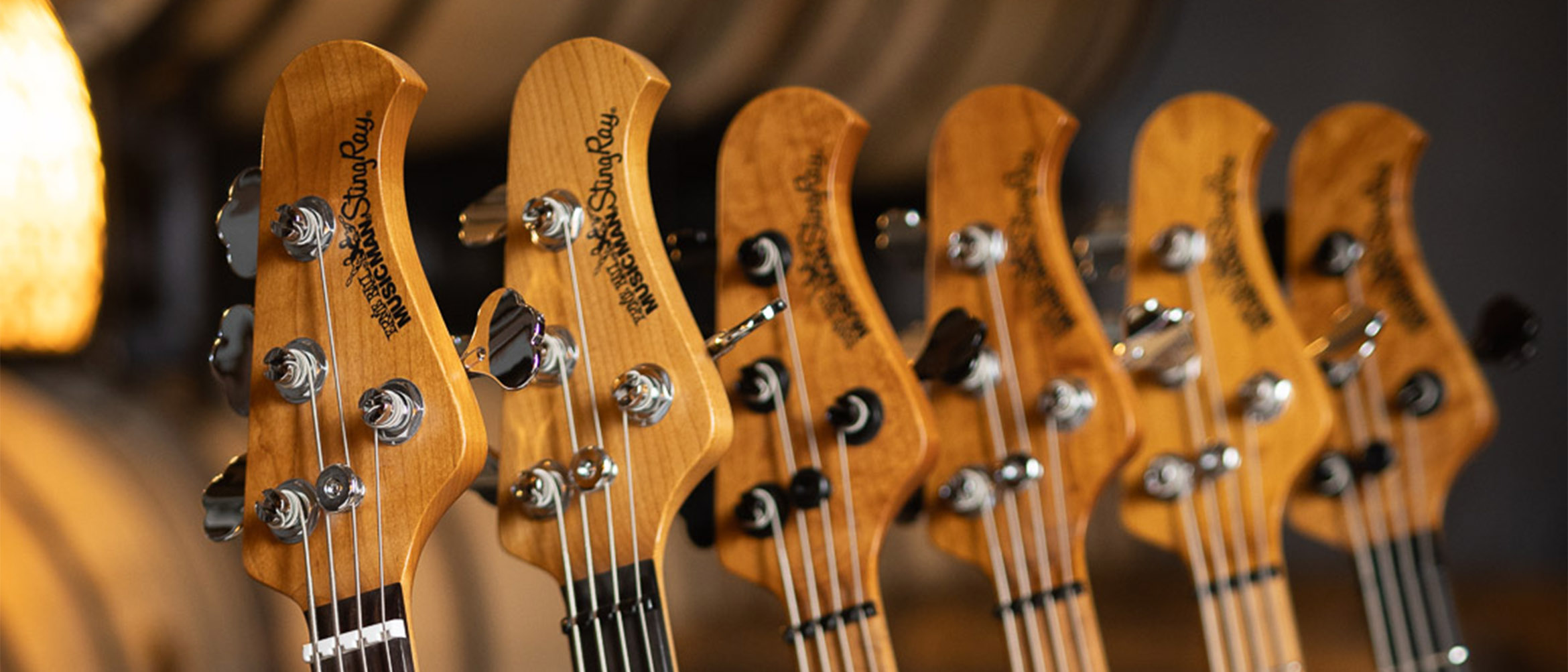

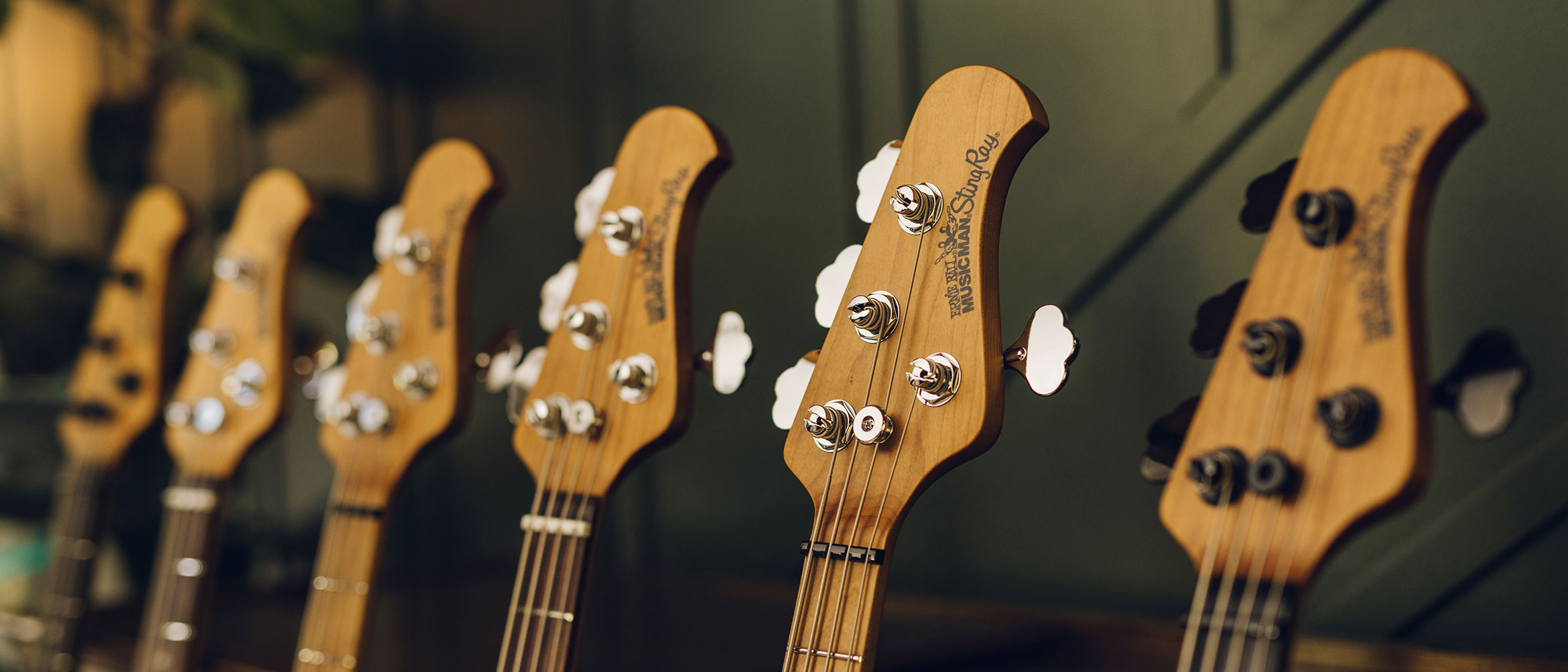

REVOICED

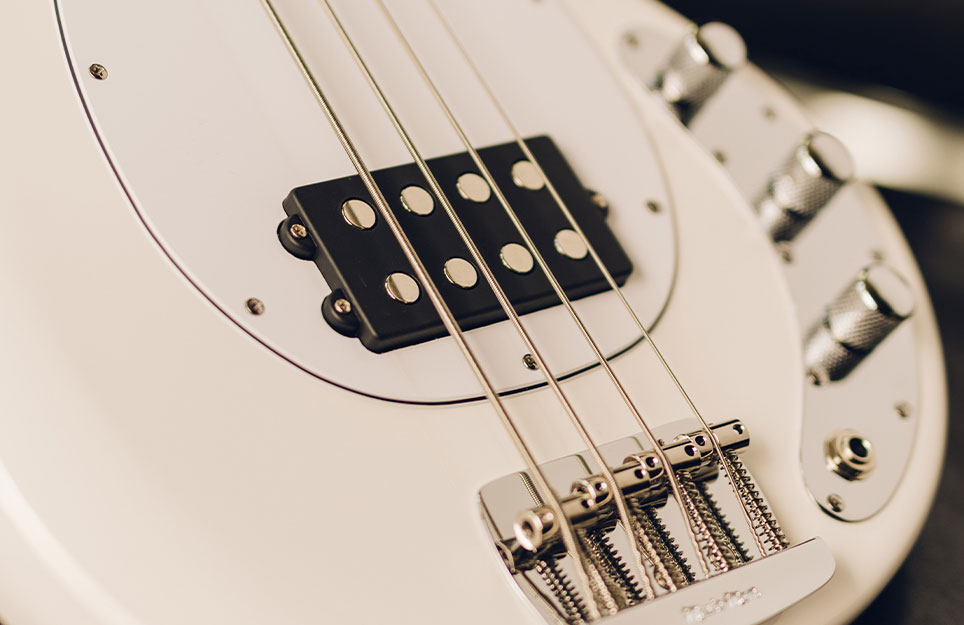

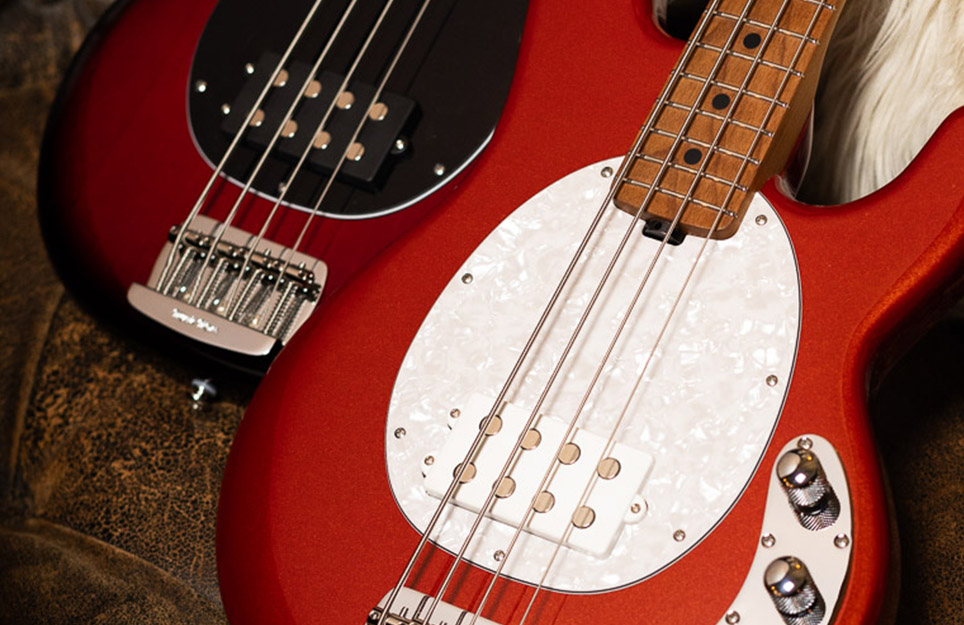

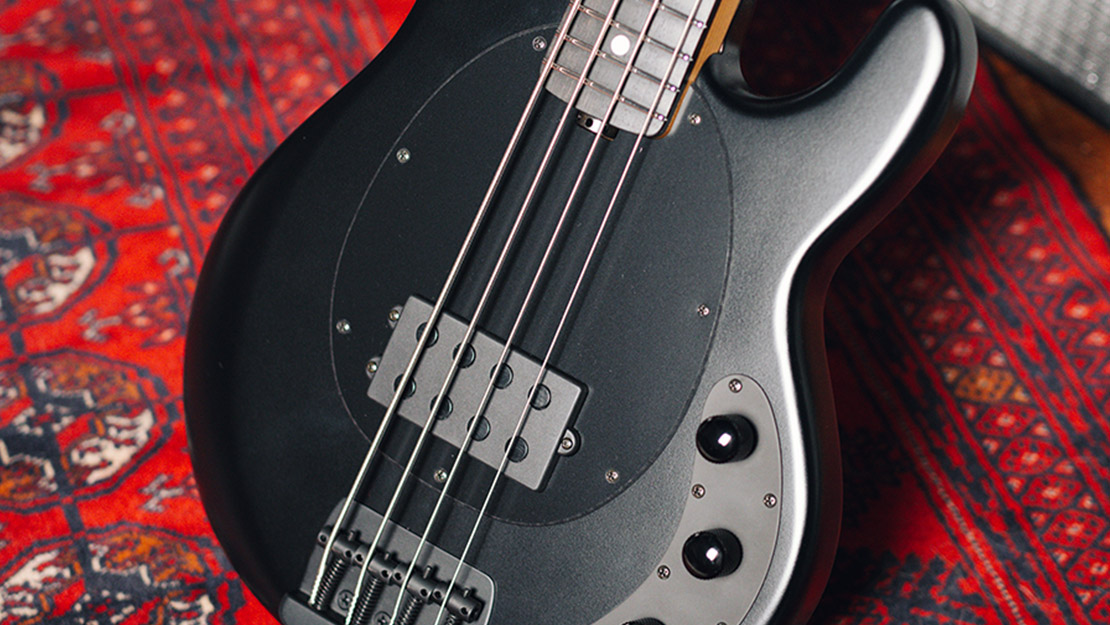

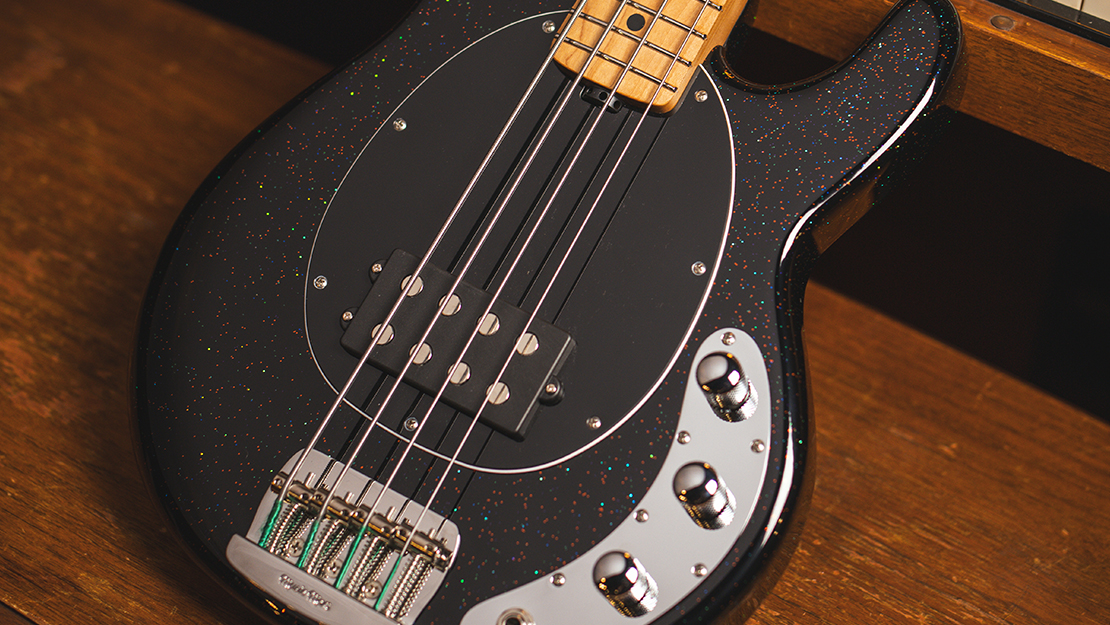

POWERFUL NEODYMIUM PICKUPS

The new and improved Short Scale StingRay electronics feature powerful neodymium magnets, bringing you more output and a wider range of sounds

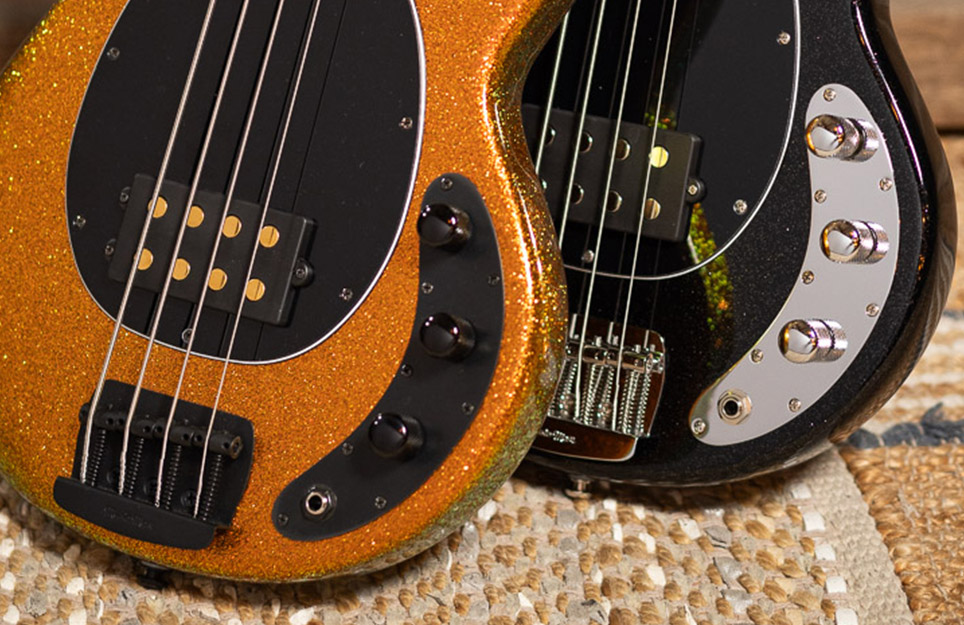

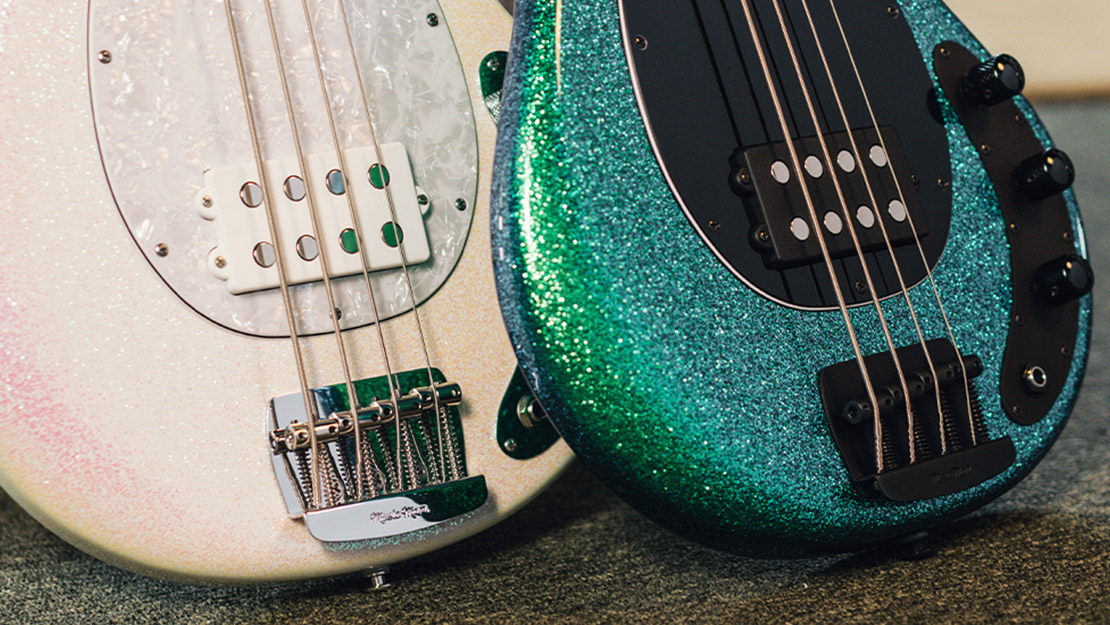

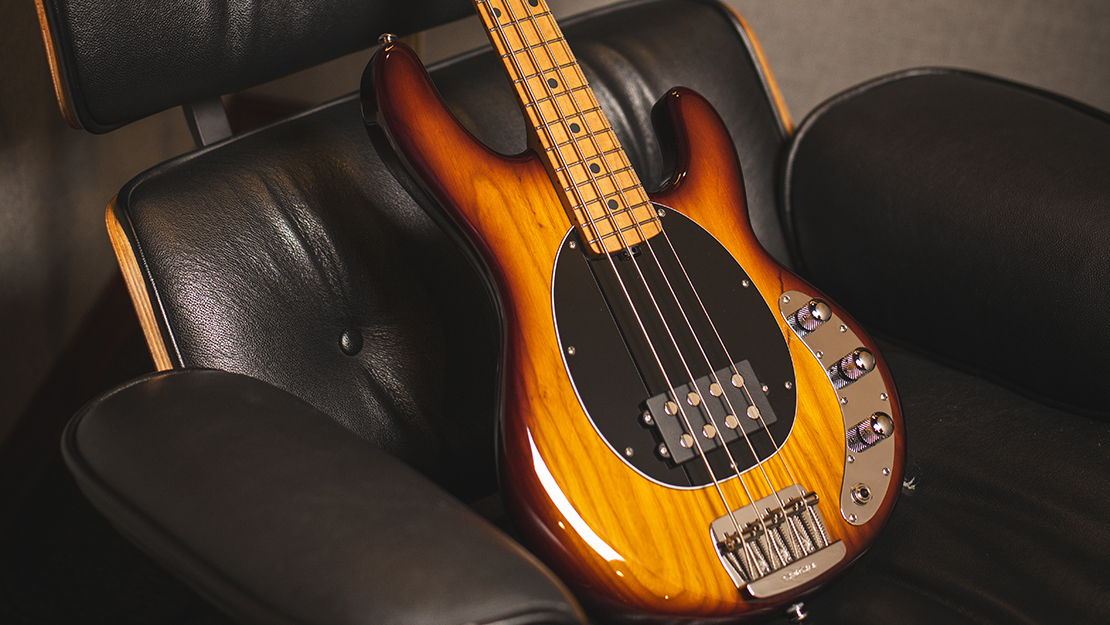

Passive Preamp

The electronics package includes a 3-way rotary switch featuring parallel, true single-coil, and series modes. All three pickup selections’ audio signals can be augmented by a boost when engaging the push volume pot.

Specifications, Schematics & More

Specifications Short Scale StingRay Bass
Model Short Scale StingRay Bass
Size 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Body Wood Ash
Body Finish High gloss polyester
Bridge Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Scale Length 30" (76.2 cm)
Frets 22 - High profile, wide stainless steel
Neck Width 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Neck Wood Select Maple
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend

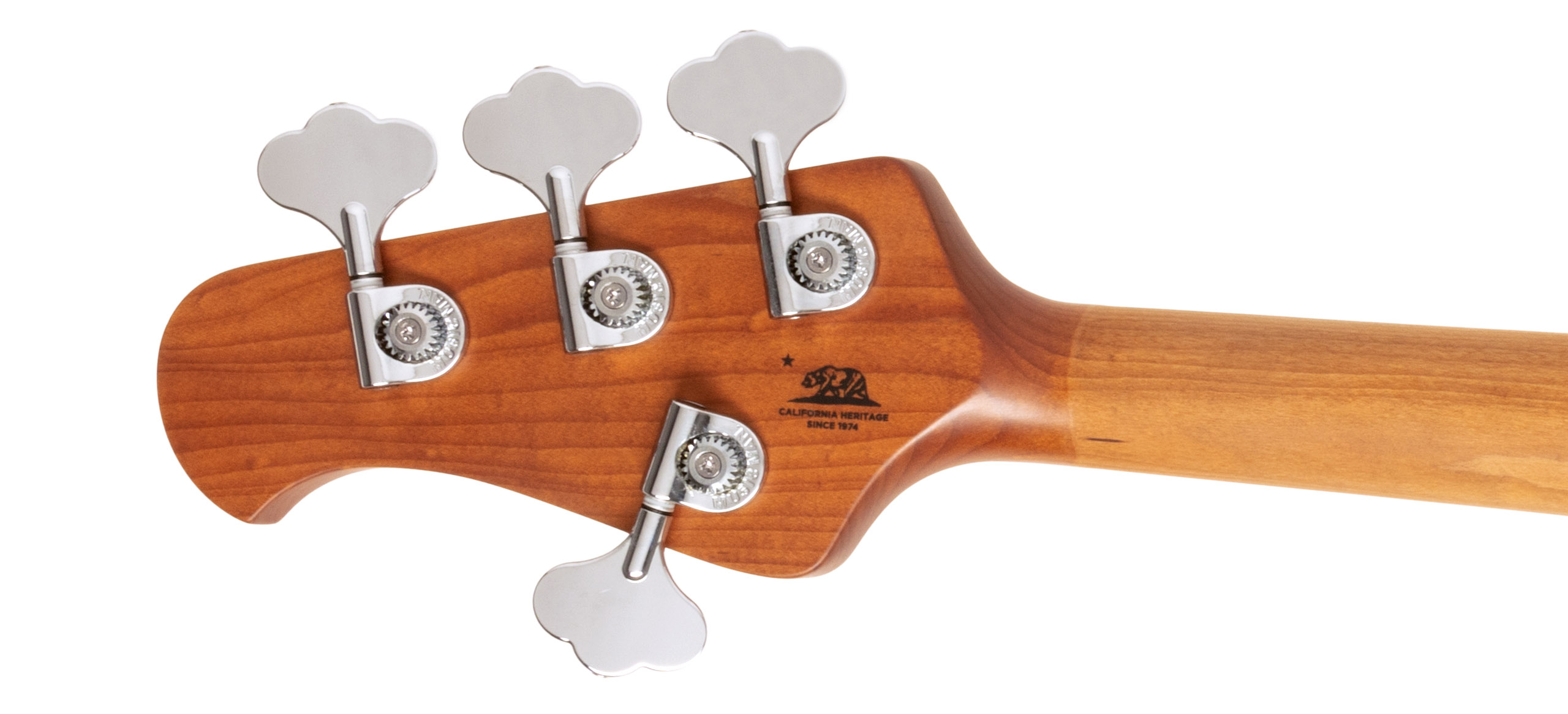

Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Chrome plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed No
Strings 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)

id => 82

iid => 82

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2019-08-14 08:32:49

updated_at => 2019-08-14 08:32:49

Specifications Short Scale StingRay Bass
Model Short Scale StingRay Bass
Order 0
Size 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Pickguard
Scale Length 30" (76.2 cm)
Neck Radius
Headstock Size
Frets 22 - High profile, wide stainless steel
Neck Width 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Neck Wood Select Maple
Fingerboard
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Chrome plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed No
Strings 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)
