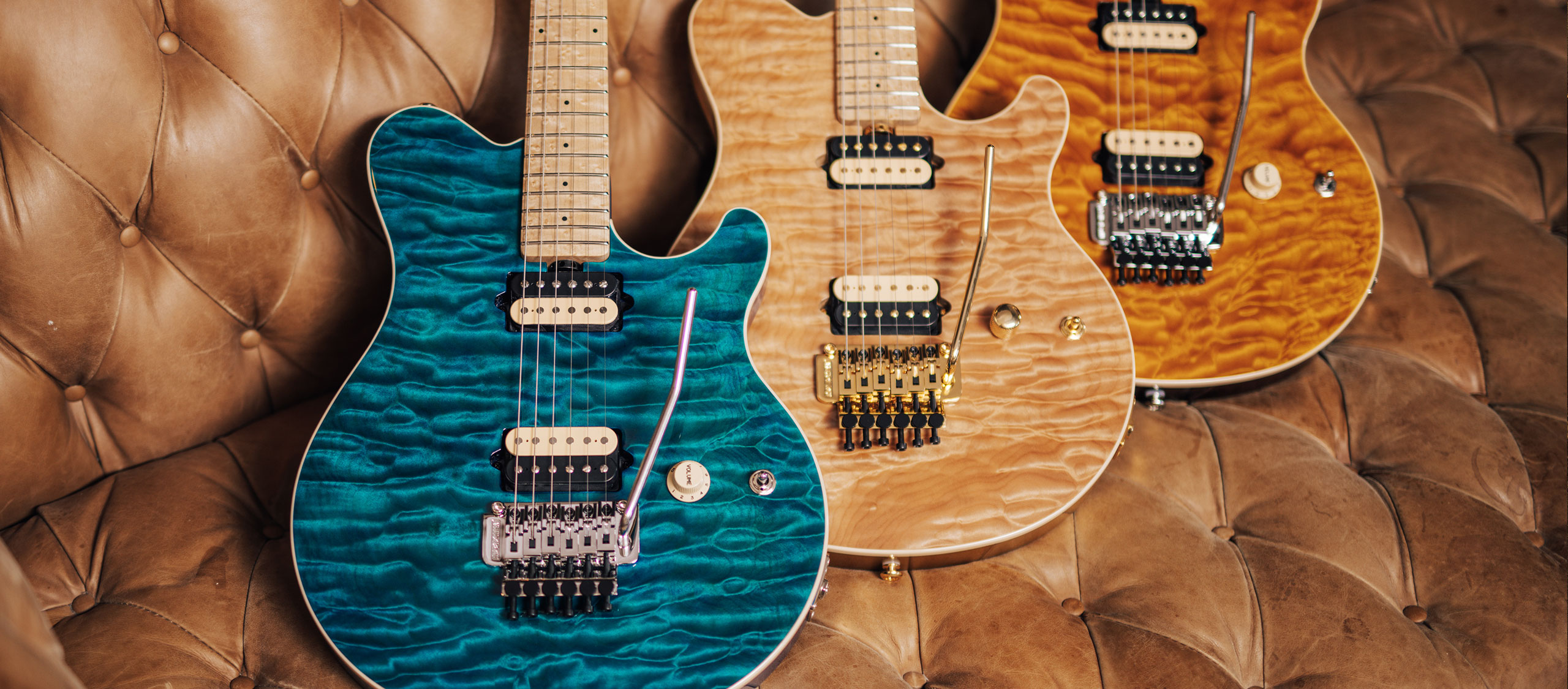

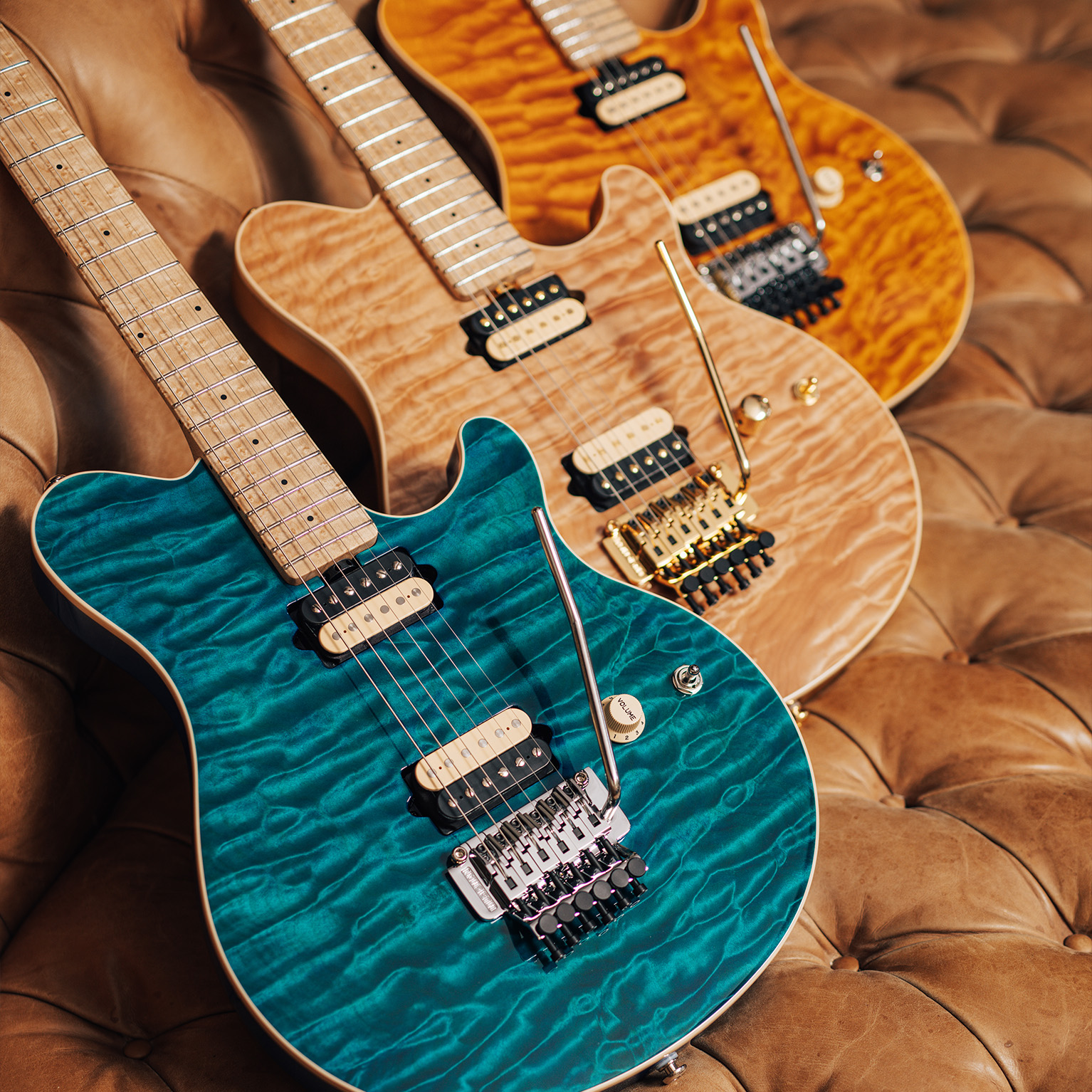

This limited edition run of 50 Ernie Ball Music Man Axis guitars combines the iconic specs players love—custom-wound DiMarzio pickups, basswood body, and the signature asymmetrical neck shape—with premium tonewoods and exclusive finishes. Each guitar features a hand-selected, one-piece quilt maple top and birdseye maple neck, with 20 in translucent gold and 15 in translucent blue, both featuring matching painted headstocks and chrome hardware, and 15 in natural with Gold Pearl backs paired with gold hardware. Each guitar ships in a custom G&G case, making this a truly special Axis release.

Axis Premium One Piece Logo

オプション

Translucent Gold

Translucent Blue

Natural

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Axis Premium One Piece Highlights

Axis Premium One Piece Slide
Axis Premium One Piece Slide
Axis Premium One Piece Slide
Axis Premium One Piece Slide
Axis Premium One Piece Slide
Axis Premium One Piece Slide
Axis Premium One Piece Highlight
PREMIUM FIGURED MAPLE TOP
Premium one piece quilt maple top rather than bookmatched maple
Axis Premium One Piece Highlight
BIRDSEYE MAPLE NECK WITH MATCHING HEADSTOCK
Premium birdseye maple necks with matching headstocks
Axis Premium One Piece Highlight
CUSTOM FINISHED BACK
The body back is custom finished and color coordinated to complement the translucent quilted maple top.

Designed to Perfection

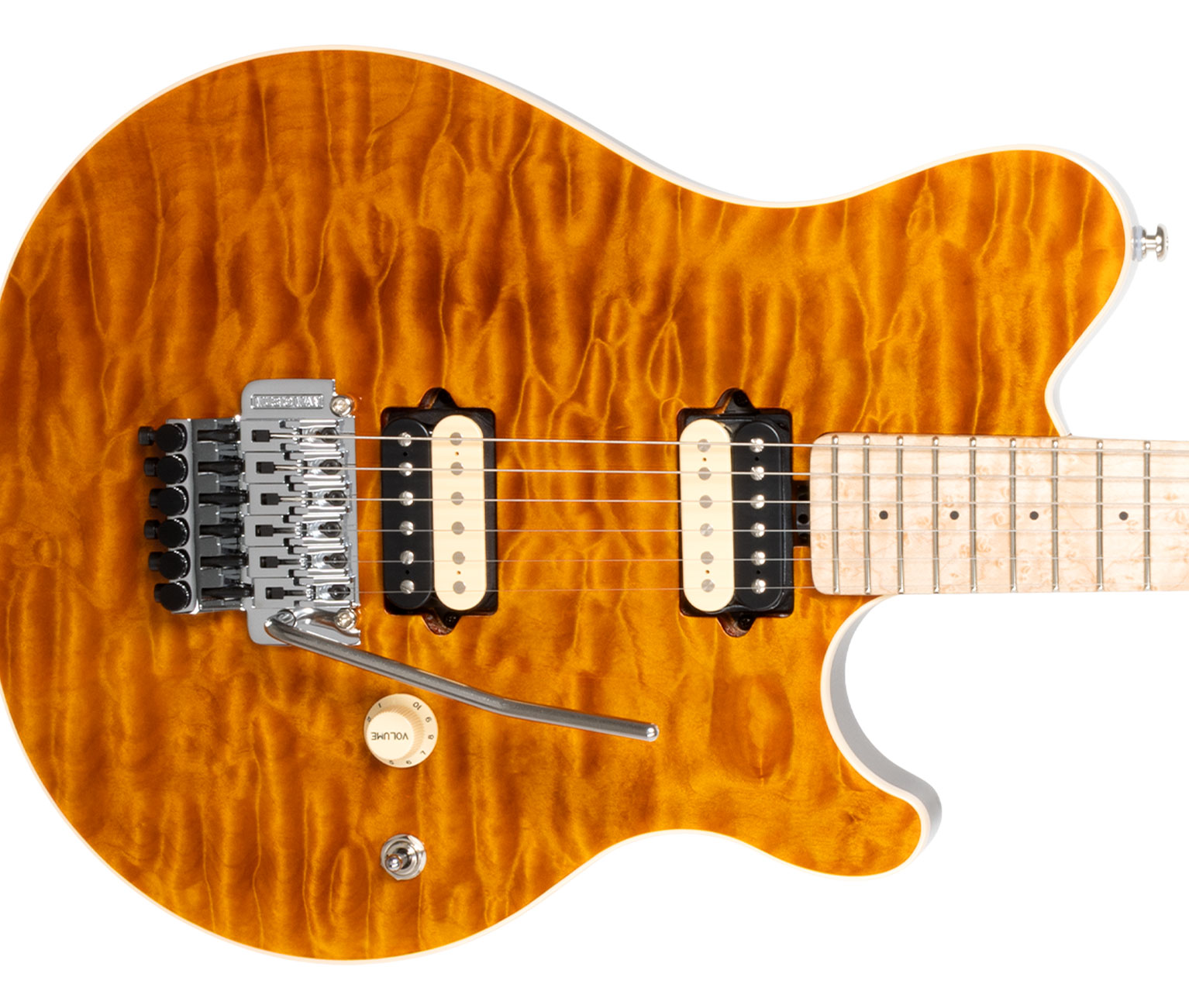

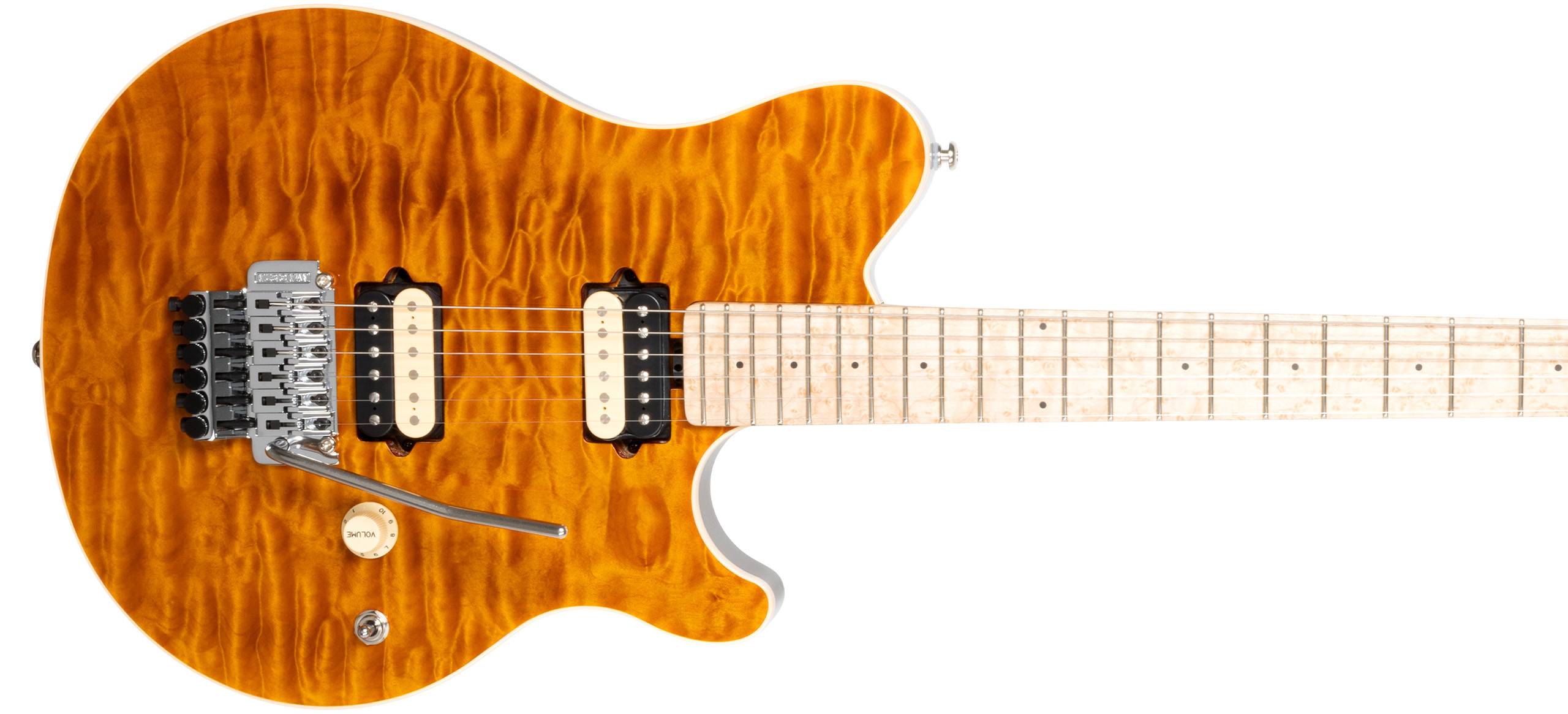

The Axis guitar features a perfectly balanced, single-cutaway body design that allows unparalleled access to all 22 stainless frets. The premium figured maple neck with an asymmetric custom neck carve provides an ultra-comfortable playing experience.

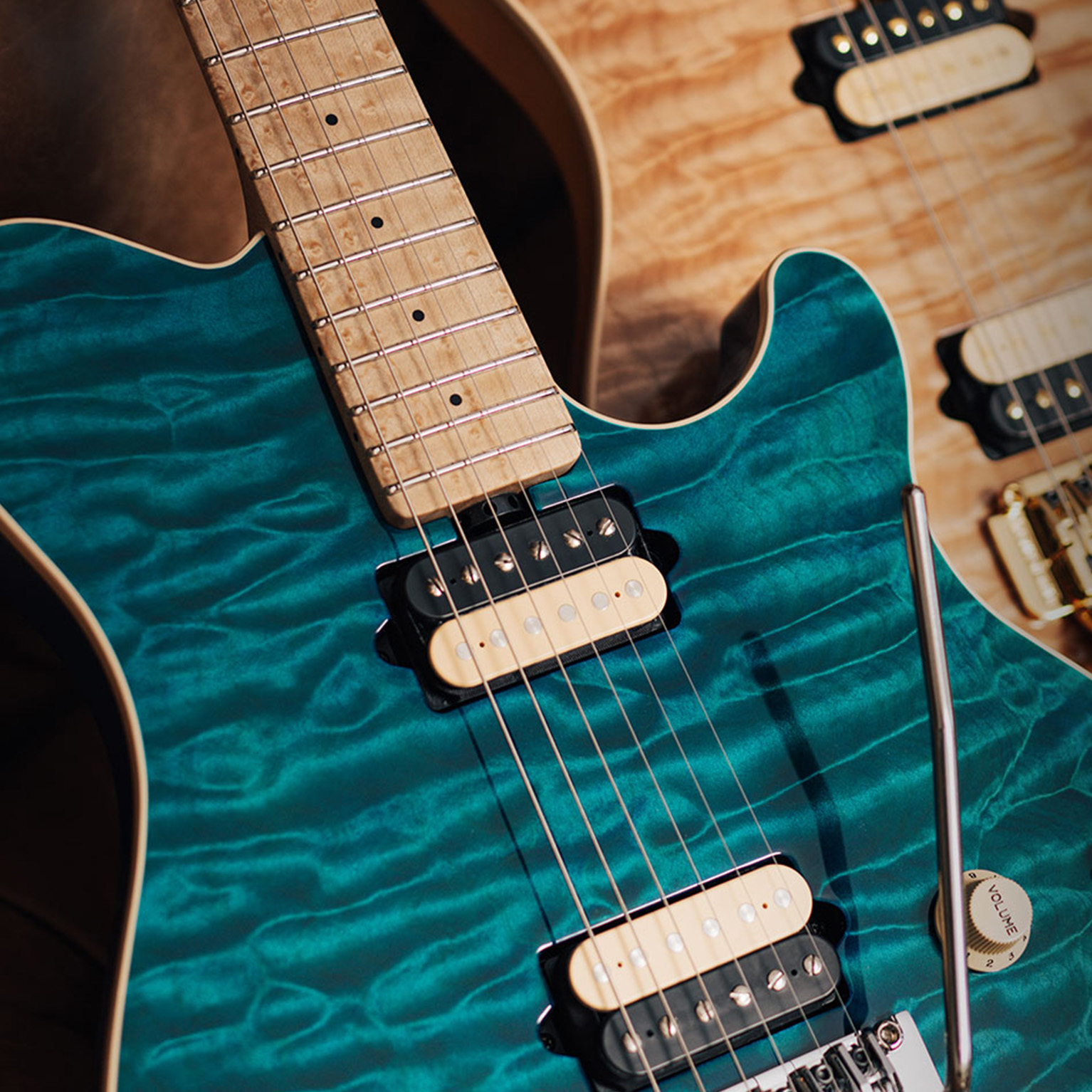

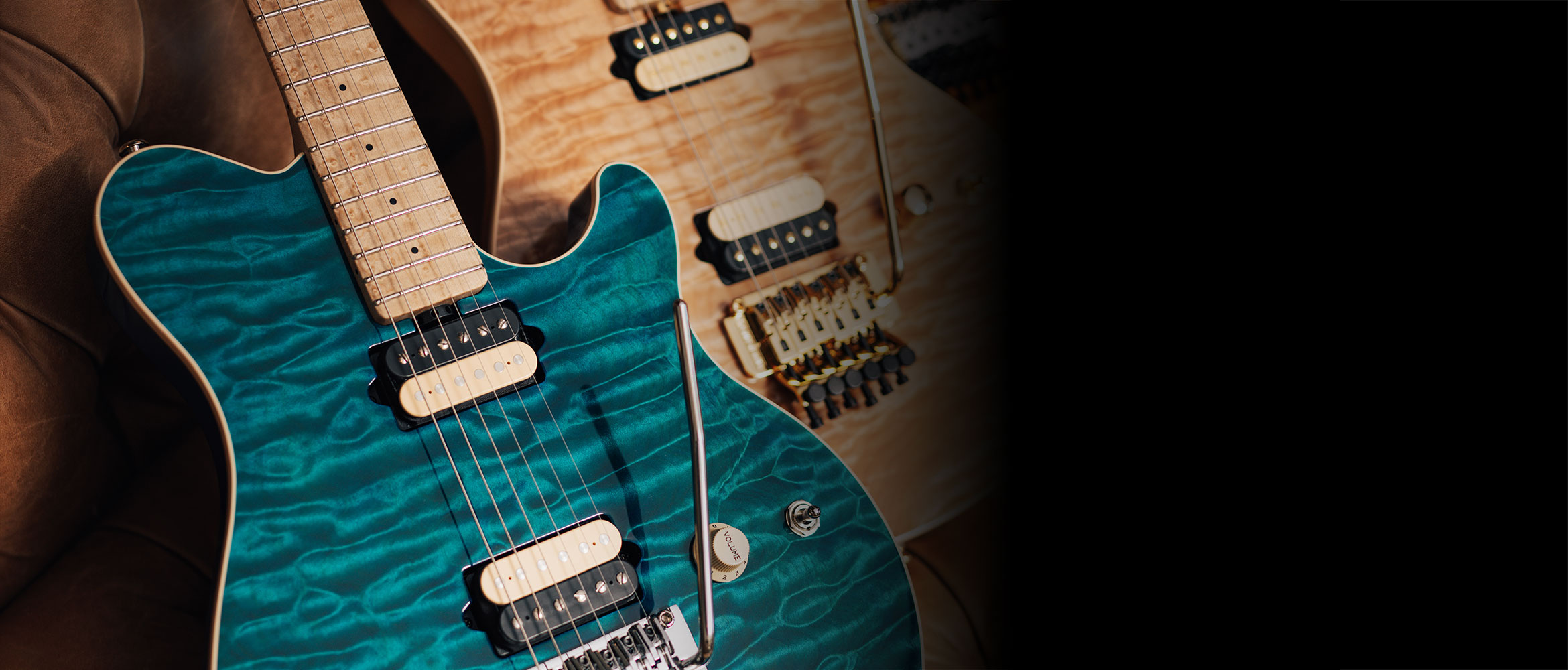

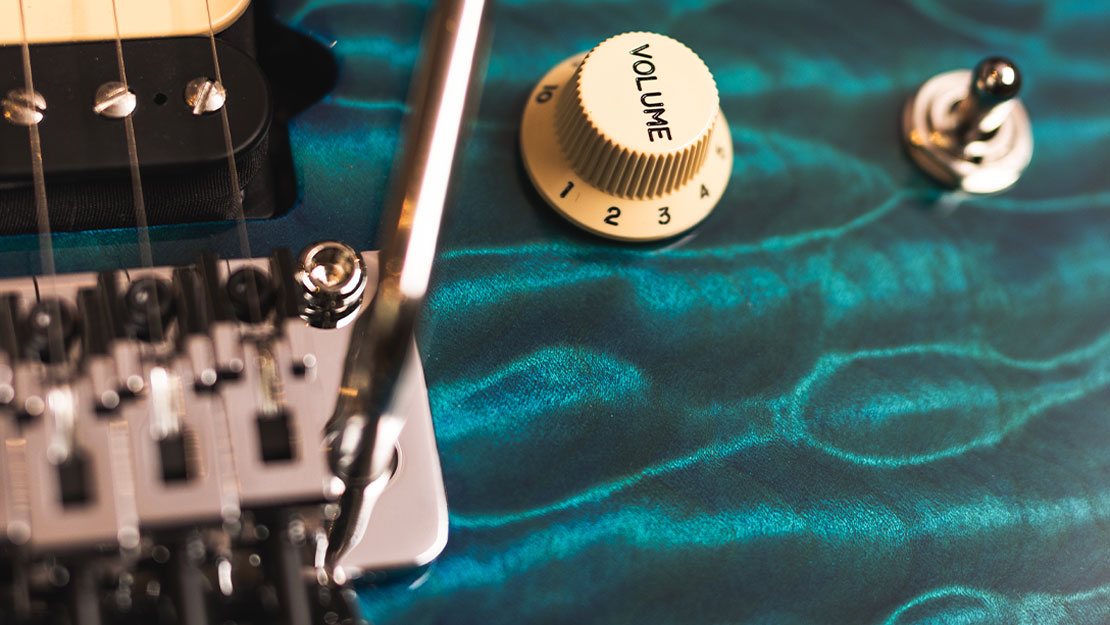

Premium One-Piece Quilt Maple Tops

Rare and beautiful quilted maple tops with unaltered, continuous natural grain pattern.

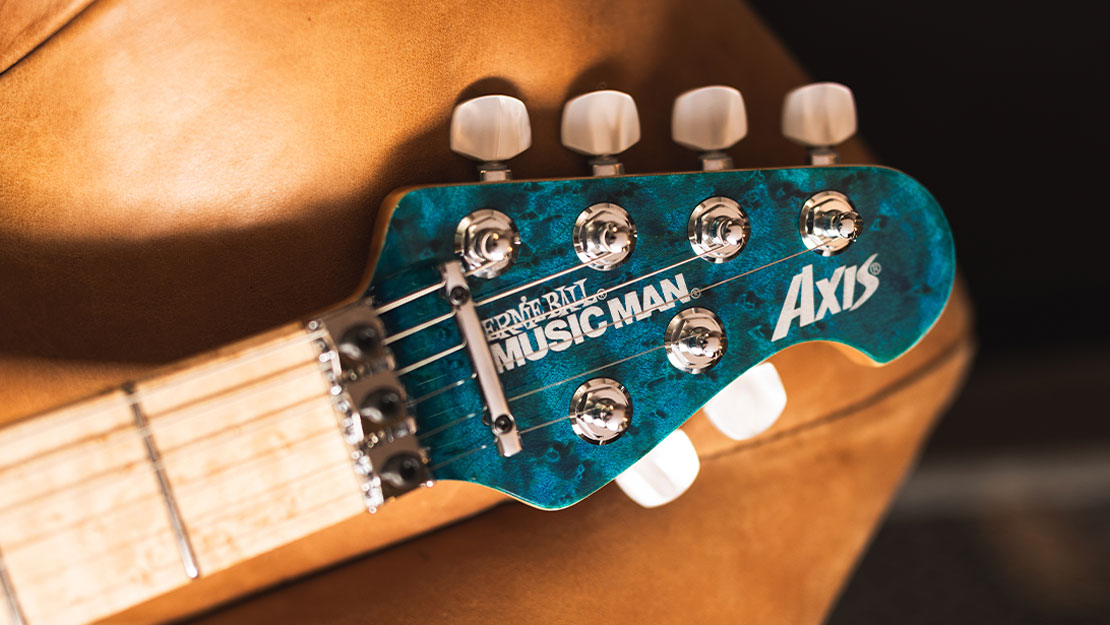

Birdseye Maple Neck with Matching headstock

Rock solid figured maple neck with 22 stainless steel frets, matching painted headstock, and Schaller non-locking tuners.

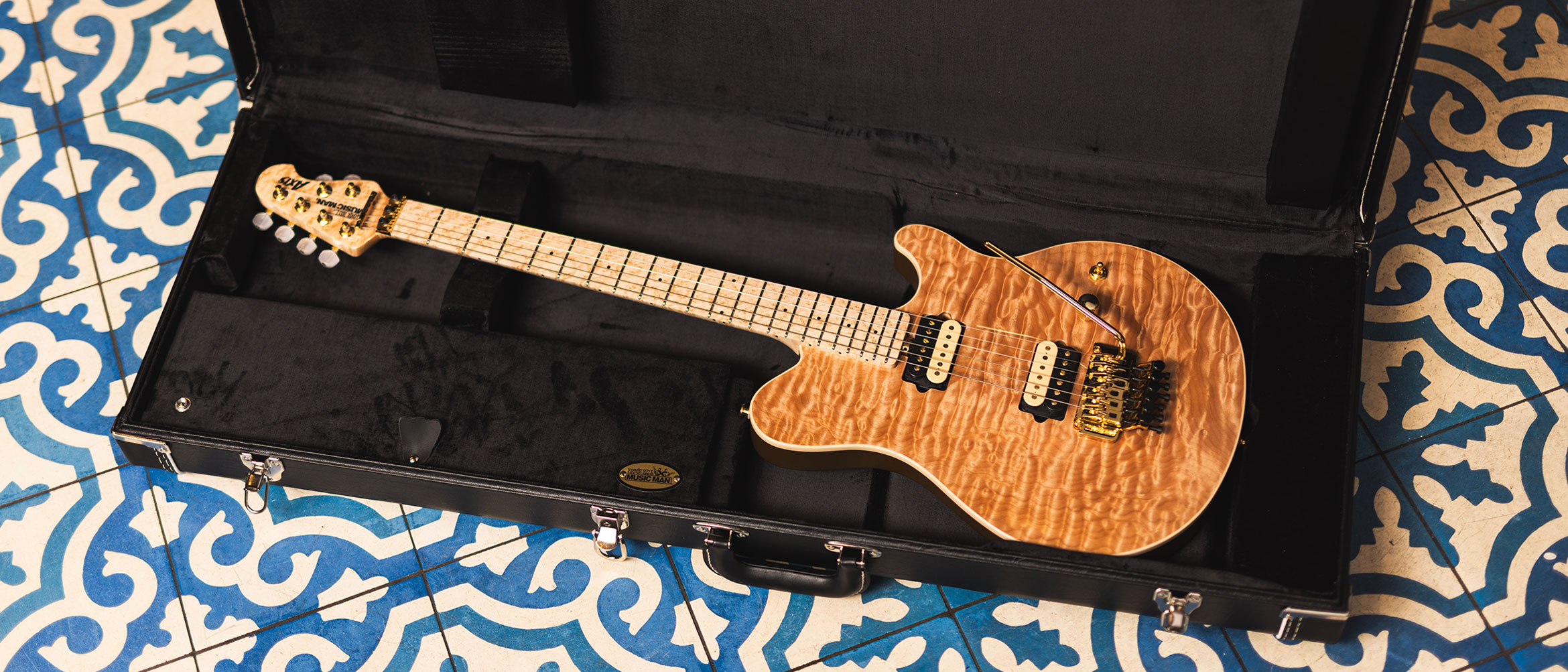

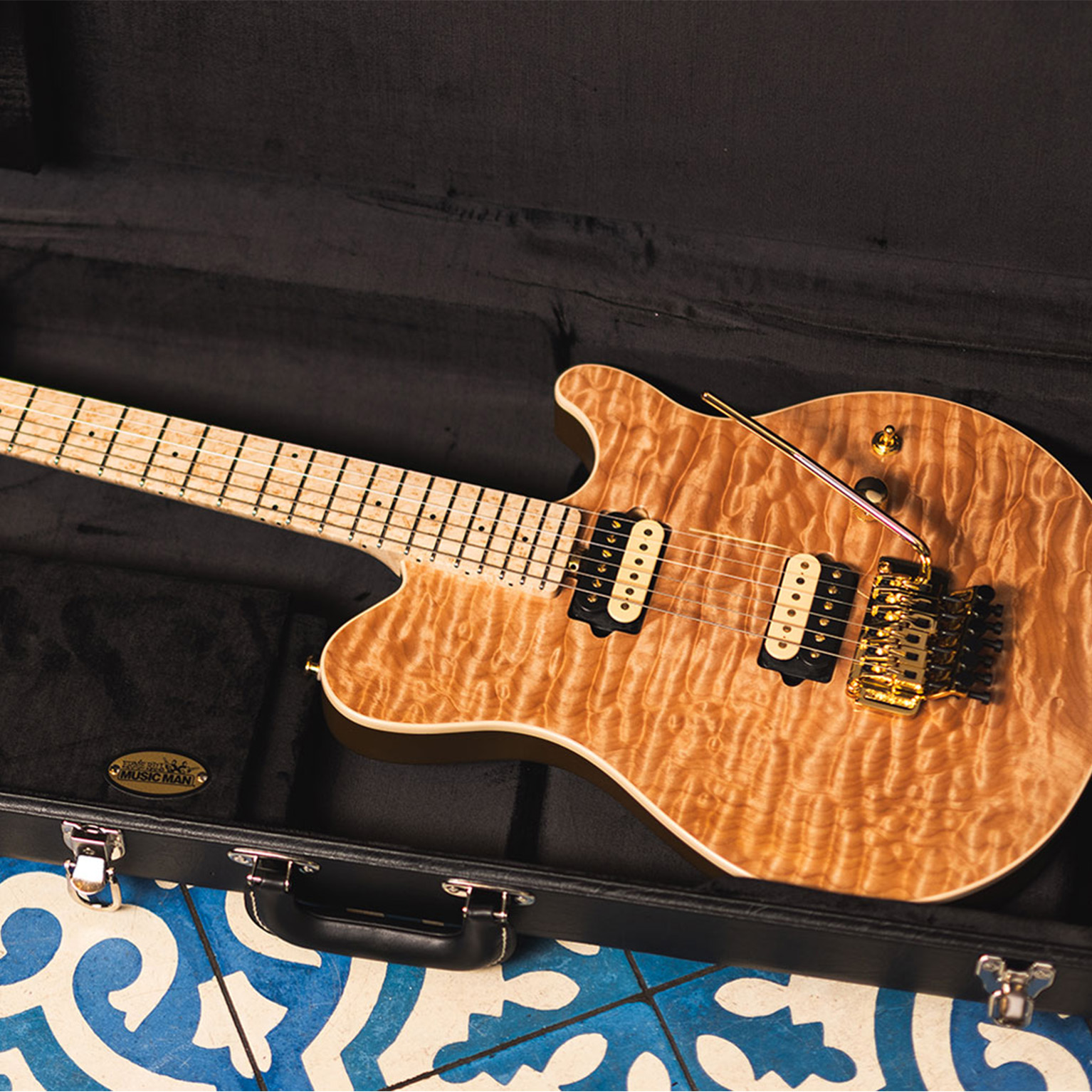

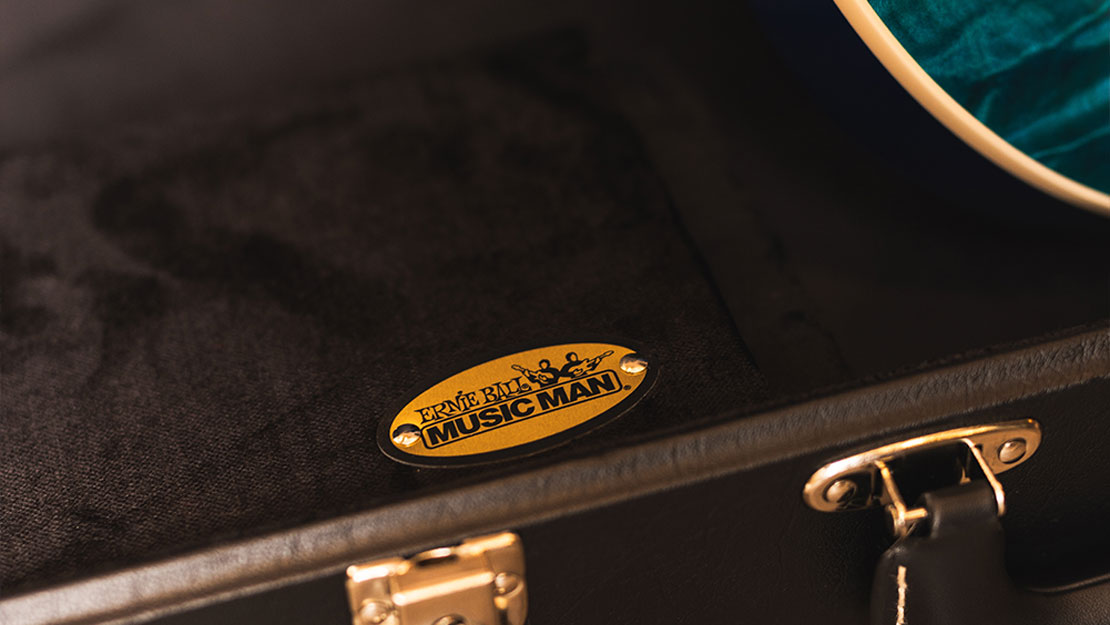

Classic Black G&G Tolex Case

Quality G&G cases are handcrafted in Los Angeles, California, using the same time-honored techniques they've perfected over the past 70 years.

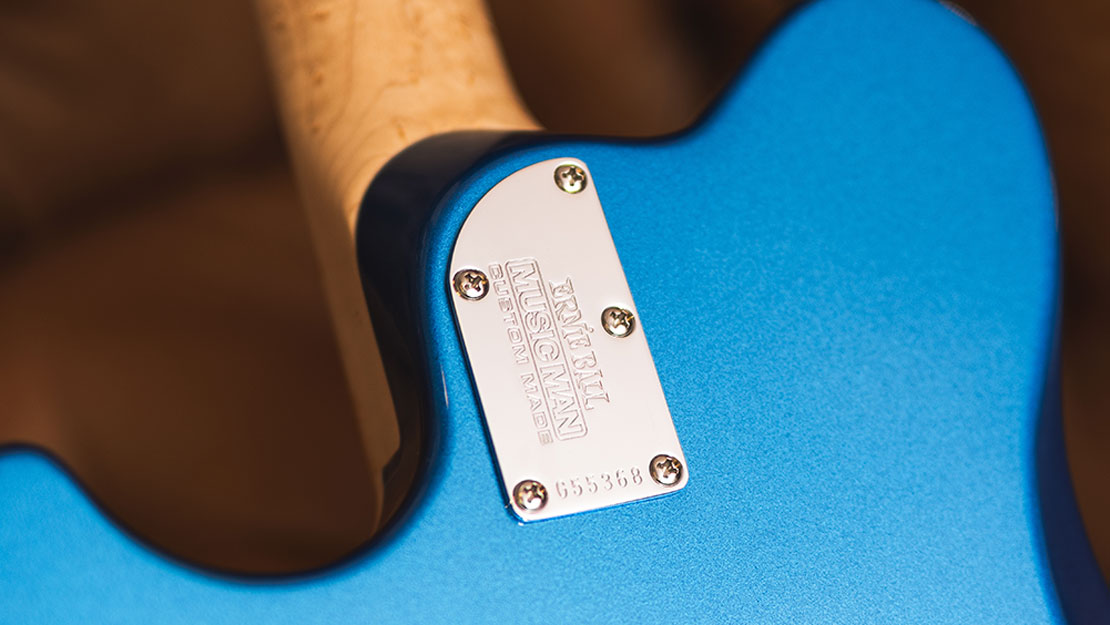

Custom Finished Back

The body back is custom finished and color coordinated to complement the translucent quilted maple top.

Specifications, Schematics & More

Specifications Axis Premium One Piece Top
Model Axis Premium One Piece Top
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with Premium One Piece Quilt Maple Top
Body Finish High gloss polyester
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood White Birdseye Maple
Fingerboard Figured Roasted Maple
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Headstock Matches Body
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 128

iid => 128

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2025-06-23 11:53:31

updated_at => 2025-06-23 11:53:31

Specifications Axis Premium One Piece Top
Model Axis Premium One Piece Top
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with Premium One Piece Quilt Maple Top
Body Finish High gloss polyester
Body Colors
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood White Birdseye Maple
Fingerboard Figured Roasted Maple
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Headstock Matches Body
Neck Binding
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
