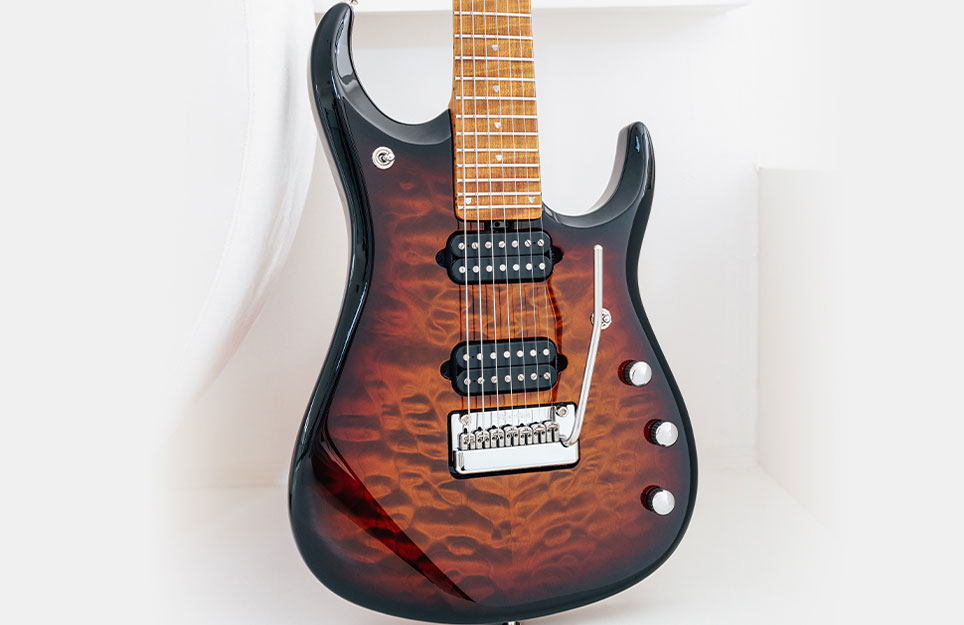

JP15は、軽量なオクメ・ボディに、フィギュアード・ローステッド・メイプルをトップ材に採用しています。ボディ・カラーはサハラ・バースト、トランス・ブラック・バースト、新色のセルリアン・パラダイスを用意、いずれもフレイムやキルトを美しく引き立てます。ローステッド・メイプルのネックと指板は、様々な環境下でも安定性を保ちながら、サウンドに適度なスナップ感と明るさを加えています。DiMarzio製のIlluminator、Fishman製のピエゾ・ブリッジ・システム、20dbのゲイン・ブーストを搭載。3ウェイ・トグル・ピックアップ・セレクターに加え、3ウェイ・トグル・スイッチによるピエゾ/マグネティック・セレクターにより音色をコントロールします。6弦モデルと7弦モデルをラインナップし、それぞれMusic Man JPトレモロを搭載。Music Man製のハードシェル・ケースが付属します。

JP15 Logo

オプション

Cerulean Paradise Quilt

Cerulean Paradise Flame

Quilt Trans Black Burst

Flame Trans Black Burst

Sahara Burst Quilt

Sahara Burst Flame

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

JP15 Highlights

JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Highlight

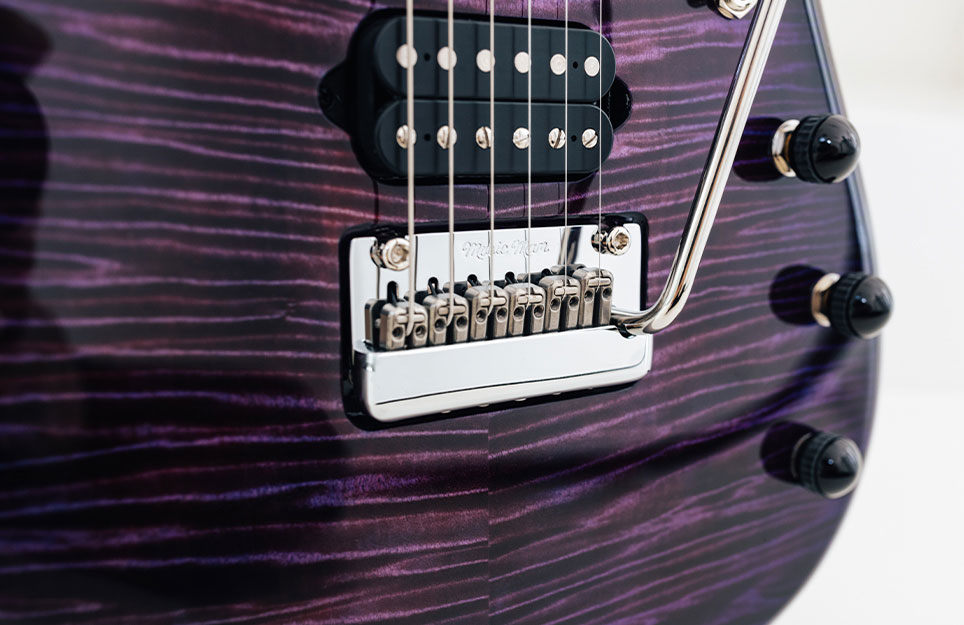

ピエゾ・サドル付きフローティングJPトレモロ・サドル
JP15 Highlight
微調整用トリム・ポット
JP15 Highlight
20dbゲイン・ブースト・スイッチ付きボリューム・ノブ

Specifications, Schematics & More

Specifications
Model JP15 6
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Okoume with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Cerulean Paradise
Body Colors Sahara Burst, Trans Black Burst, Cerulean Paradise
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), Fishman Powerbridge piezo saddles
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret

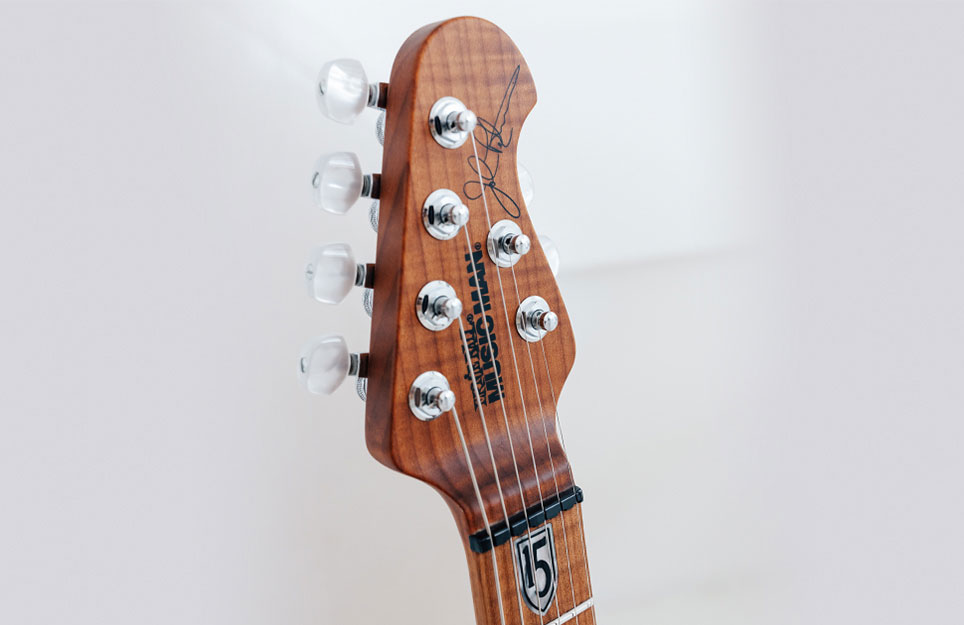

Neck Wood Figured roasted maple neck
Fingerboard Figured roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend

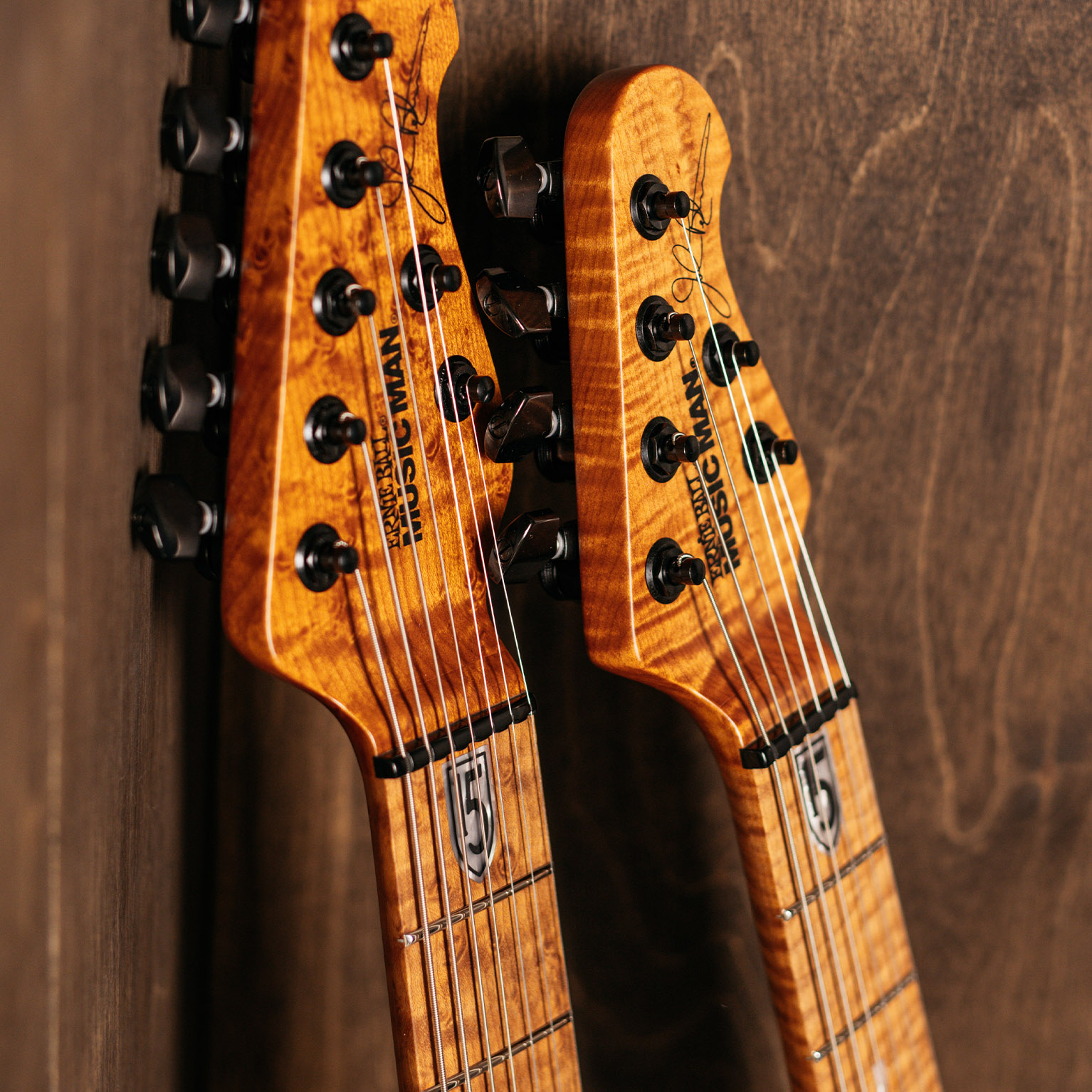

Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector

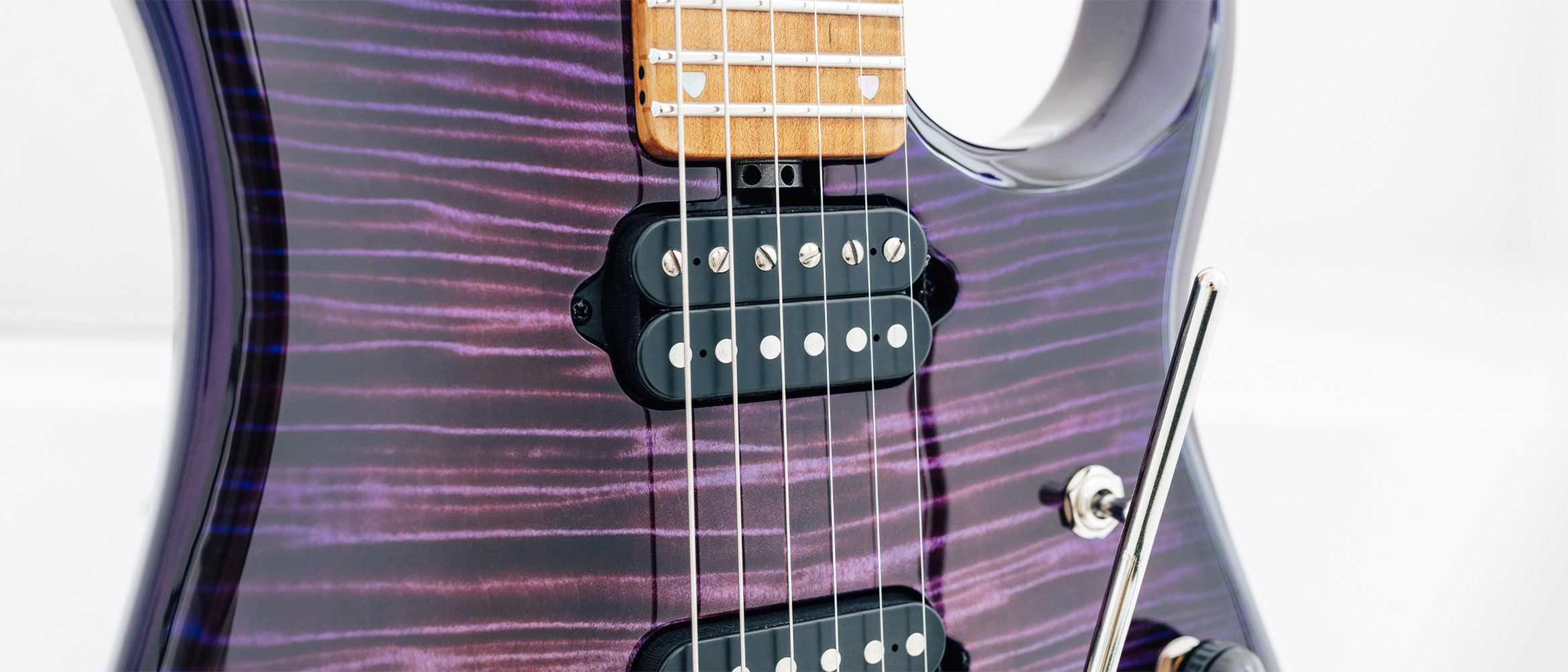

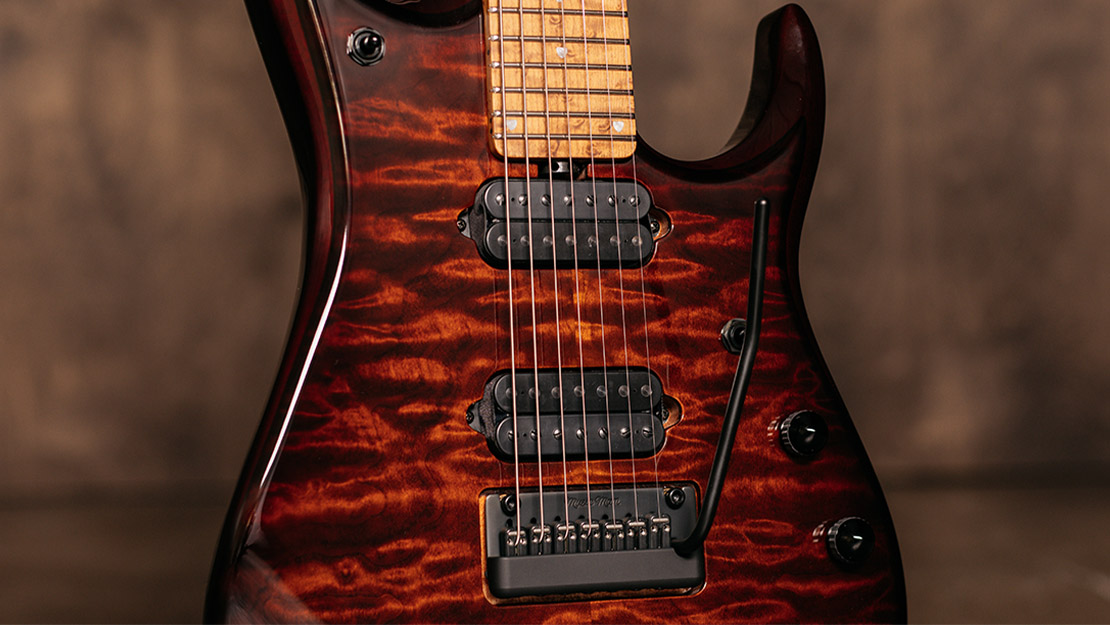

Pickups HH - DiMarzio Illuminators; Fishman Powerbridge piezo saddles
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 30

iid => 30

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:41

updated_at => 2015-11-06 08:20:41

Specifications
Model JP15 6
Order 0
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Okoume with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Cerulean Paradise
Body Colors Sahara Burst, Trans Black Burst, Cerulean Paradise
Body Bindings
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), Fishman Powerbridge piezo saddles
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Figured roasted maple neck
Fingerboard Figured roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - DiMarzio Illuminators; Fishman Powerbridge piezo saddles
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
