極限まで滑らかに仕上げられた非対称ネックグリップと、メイプル・トップ/バスウッド・バックで構成された個性的なデザインを持つアクシス。ピックアップには、専用に開発されたディマジオ・カスタム・ピックアップがダイレクト・マウントされ、トレモロ・システムは、深いアーミングが可能なフロイドローズ・ライセンス・トレモロをノンフローティングでセットした仕様となっています。

Axis Logo

オプション

Yucatan Blue Quilt

Yucatan Blue Flame

Roasted Amber Quilt

Roasted Amber Flame

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Axis Highlights

Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Highlight

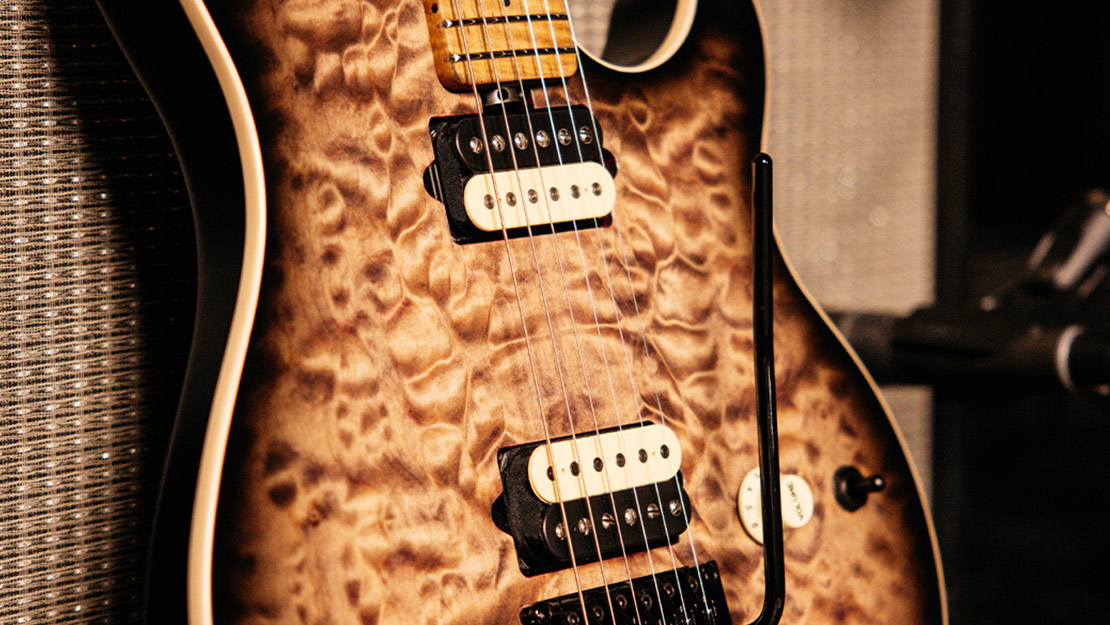

カスタム・ワウンドのディマジオ・ハムバッカー採用
Axis Highlight

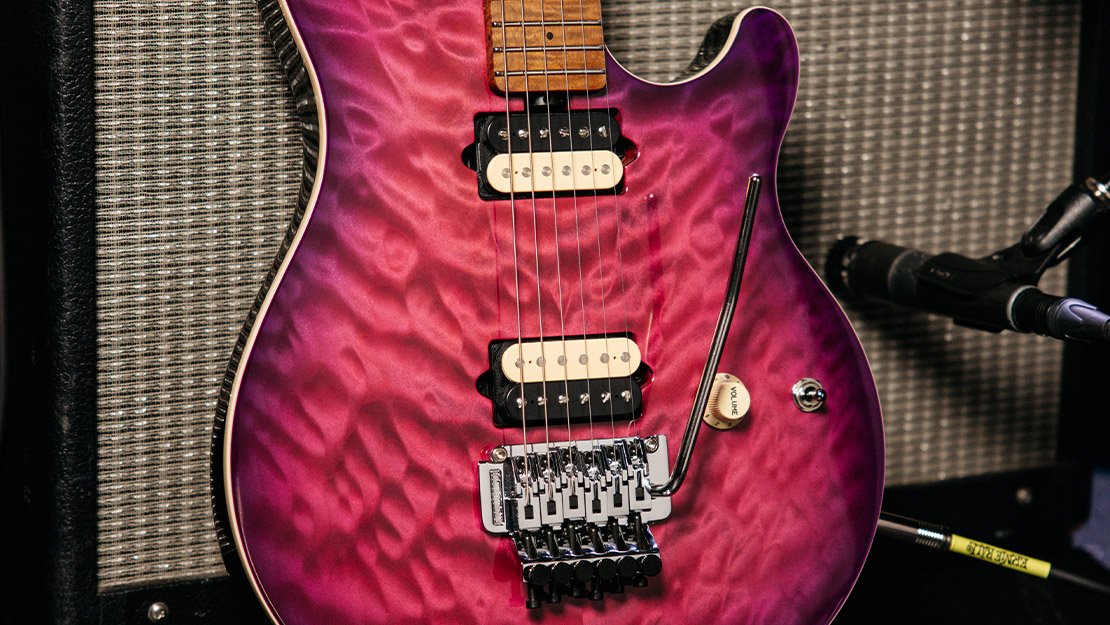

ダブル・ロッキング・ミュージックマン・トレモロ
Axis Highlight

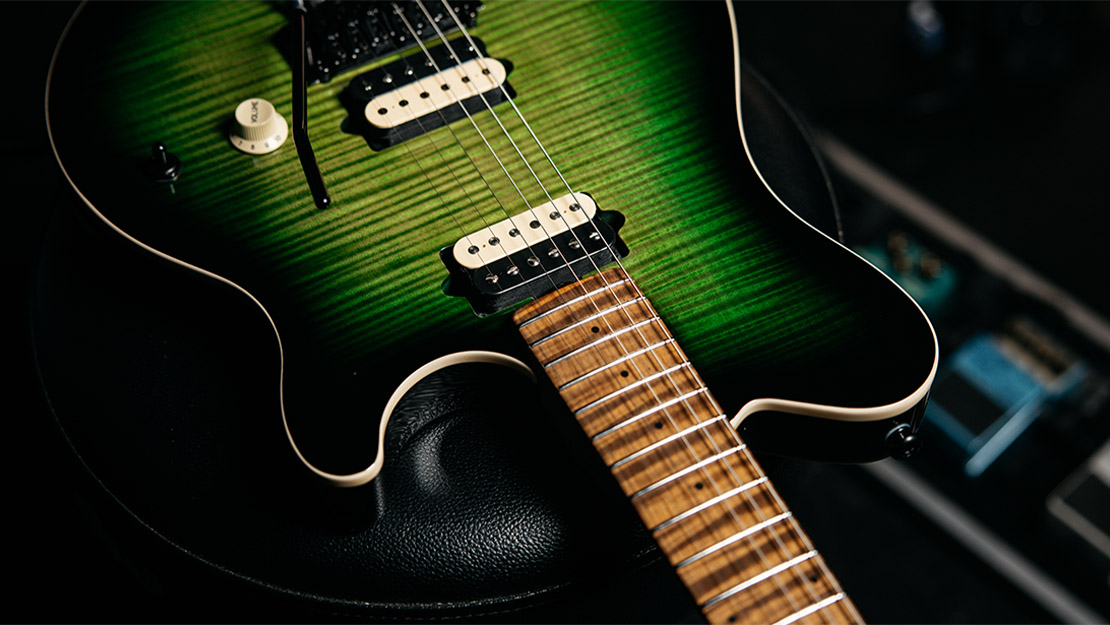

非対称グリップのフィギュアード・メイプル・ネック

Specifications, Schematics & More

Specifications Axis
Model Axis
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Figured Roasted Maple
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Roasted Maple
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 3

iid => 3

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:32

updated_at => 2015-11-06 08:20:32

Specifications Axis
Model Axis
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Figured Roasted Maple
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Roasted Maple
Neck Binding
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
