Axis Super Sport Hero Image
Axis Super Sport Logo

5ウェイ・ピックアップ・セレクター・スイッチとトーン・コントロールをプラスすることで、サウンド・バリエーションに幅を持たせたモデルです。トレモロには、ヴィンテージ・トレモロを装備し、シャーラー社のロッキング・タイプのM6チューナーと組み合わすことで、スムーズなアーミングとチューニング・ディフェンスの強化が計られています。アクシスの基本性能を受け継いだバーサタイルなモデルです。

Axis Super Sport Logo

オプション

Roasted Amber Flame

Roasted Amber Quilt

Yucatan Blue

Yucatan Blue Quilt

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Axis Super Sport Highlights

Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Highlight

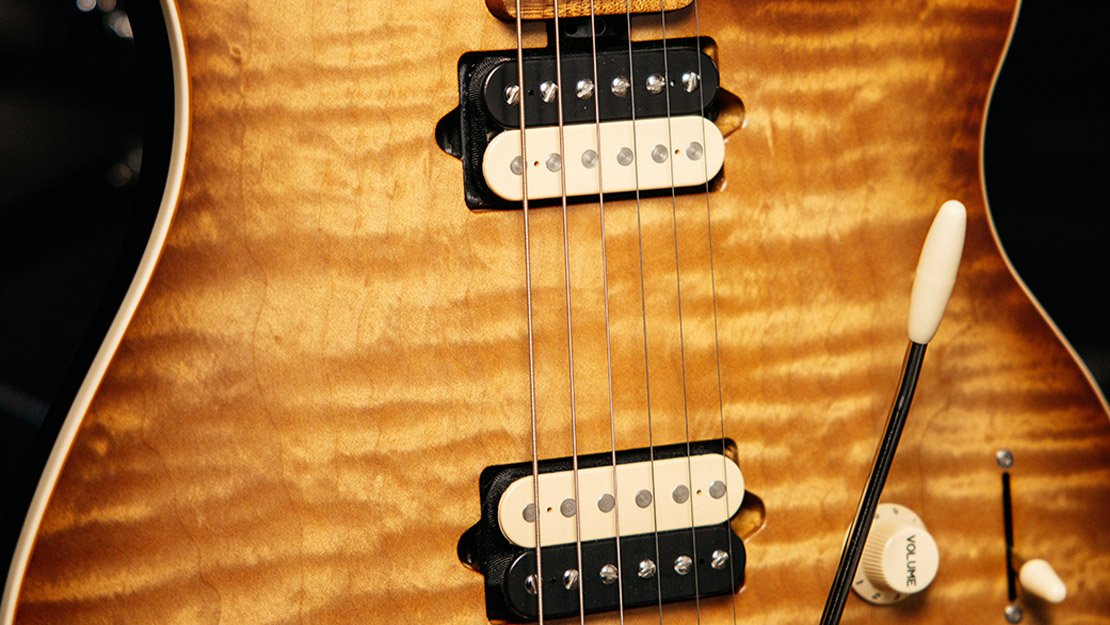

カスタム・ワウンドのディマジオ・ハムバッカー採用
Axis Super Sport Highlight
5ウェイ・スイッチ
Axis Super Sport Highlight

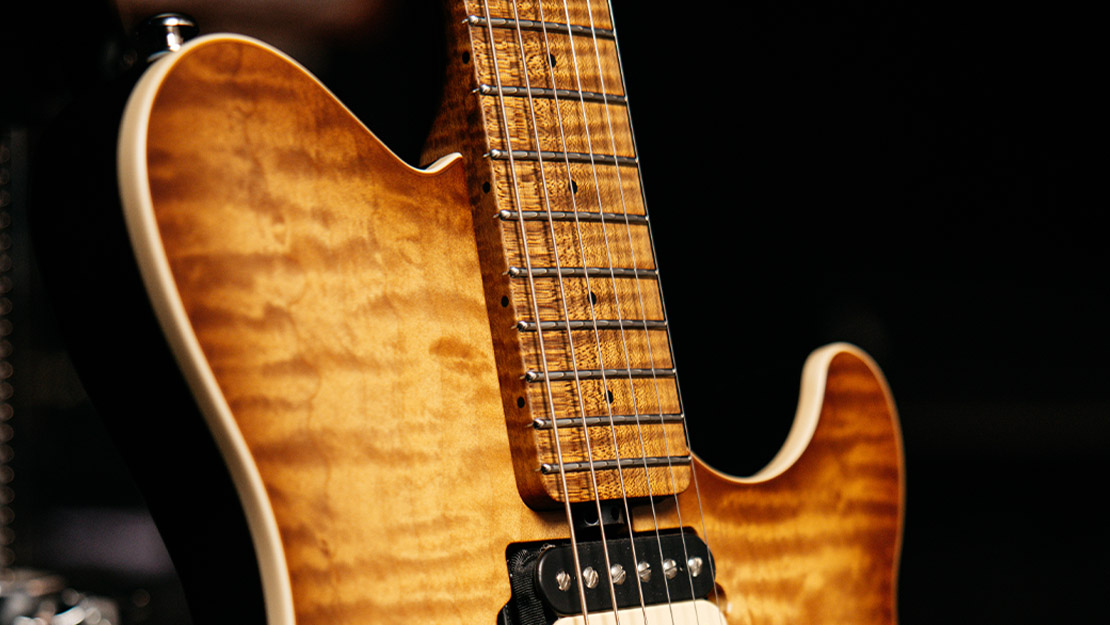

非対称グリップのフィギュアード・メイプル・ネック

Specifications, Schematics & More

Specifications Axis Super Sport
Model Axis Super Sport
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Standard - Music Man® strings-thru-the-body bridge of chrome plated, hardened steel with solid steel saddles; Optional - Music Man® vintage tremolo
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Roasted figured maple
Neck Finish Gunstock oil and hand-rubbed special wax blend

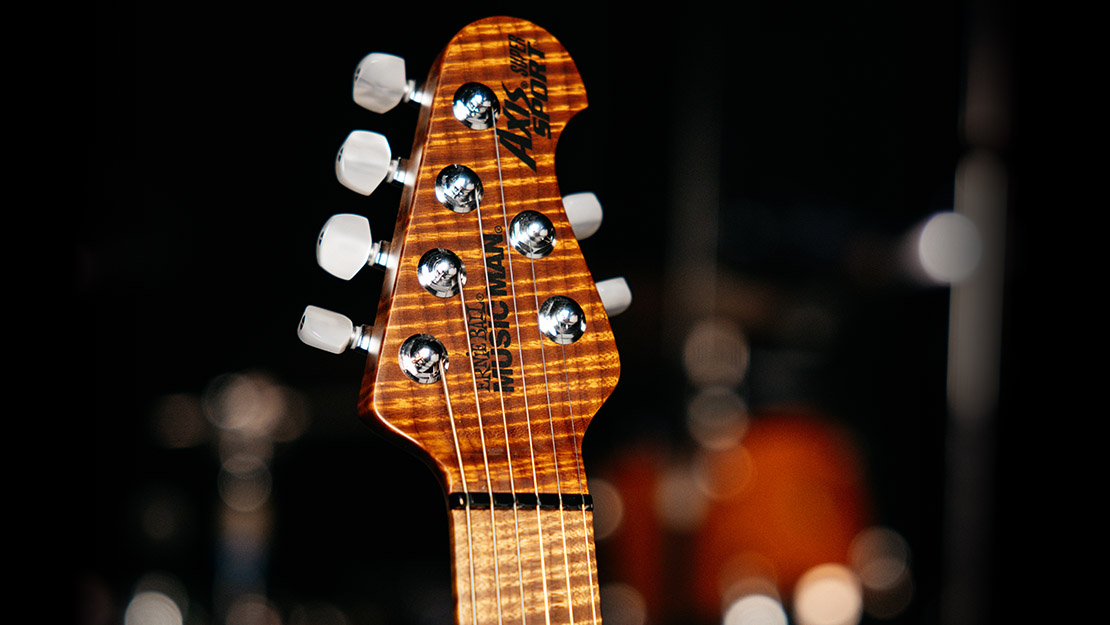

Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 5

iid => 5

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:33

updated_at => 2015-11-06 08:20:33

Specifications Axis Super Sport
Model Axis Super Sport
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Standard - Music Man® strings-thru-the-body bridge of chrome plated, hardened steel with solid steel saddles; Optional - Music Man® vintage tremolo
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Roasted figured maple
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
