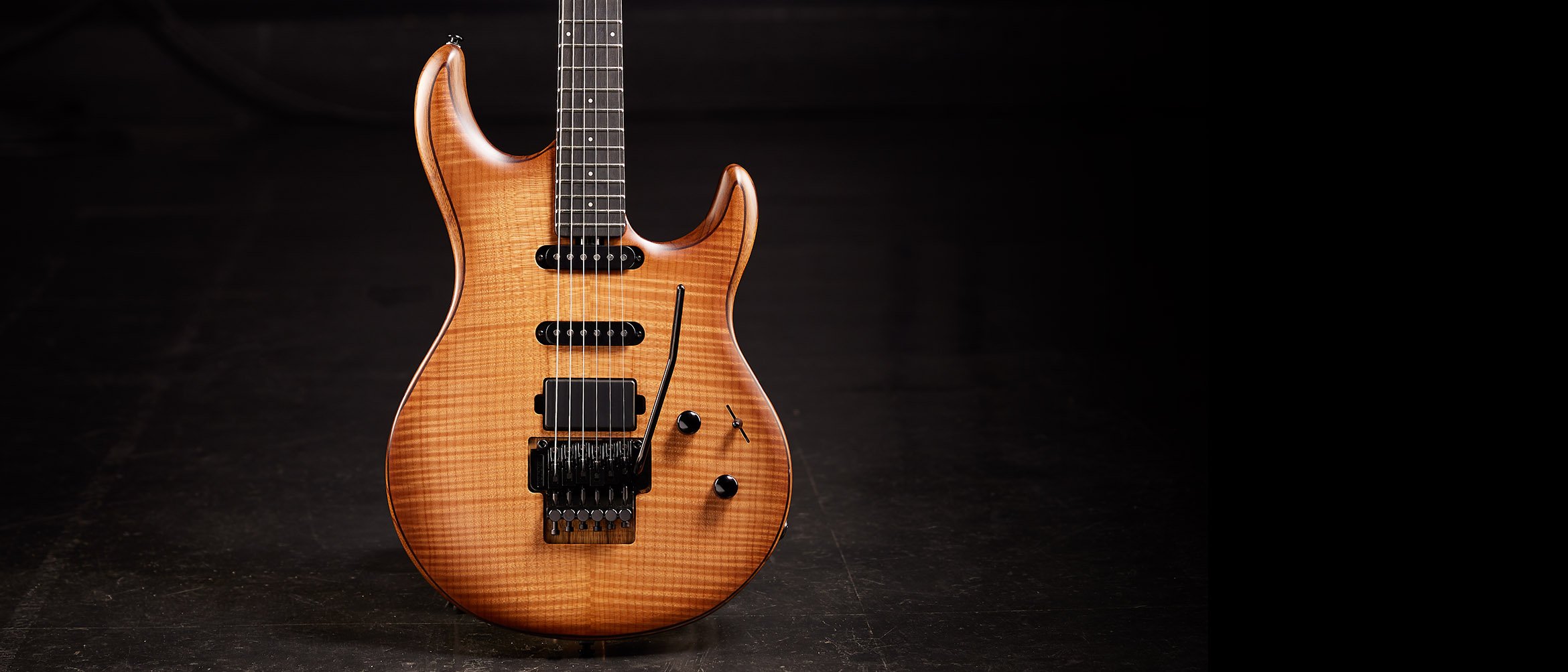

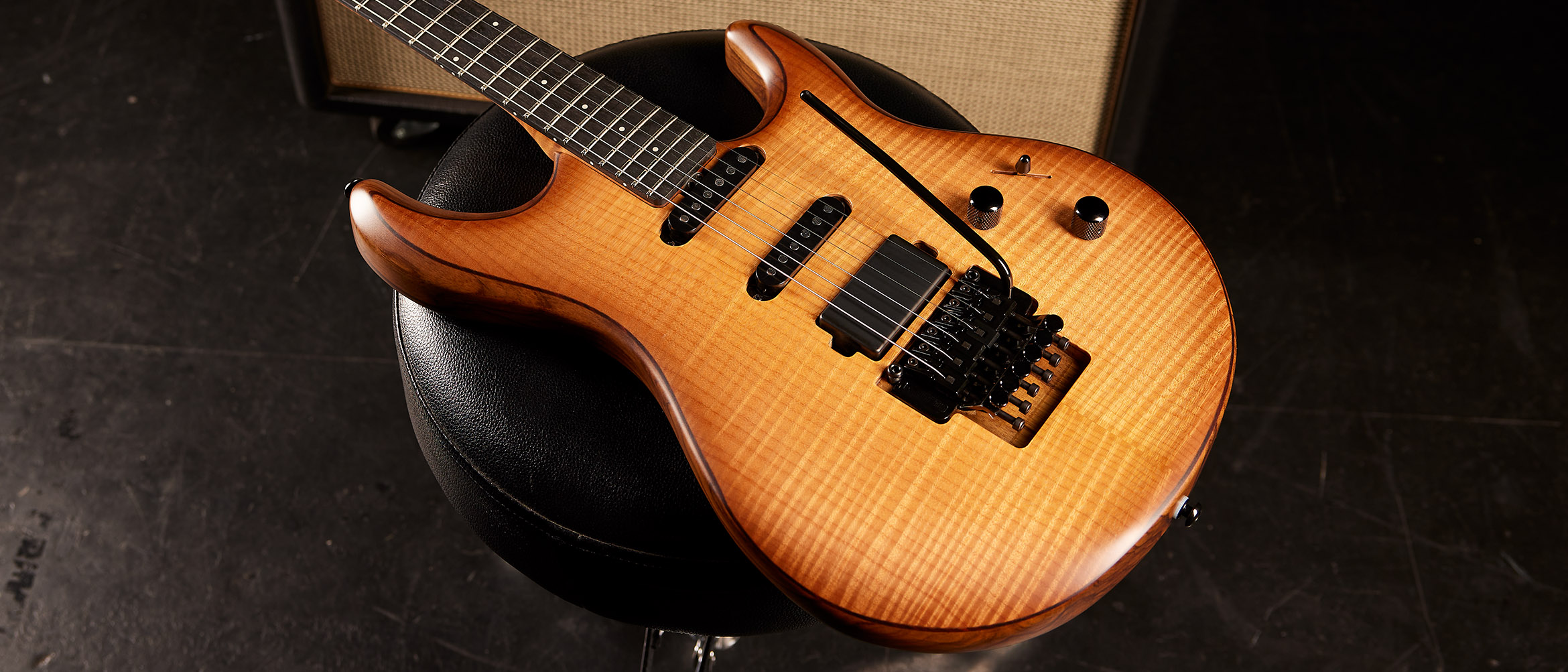

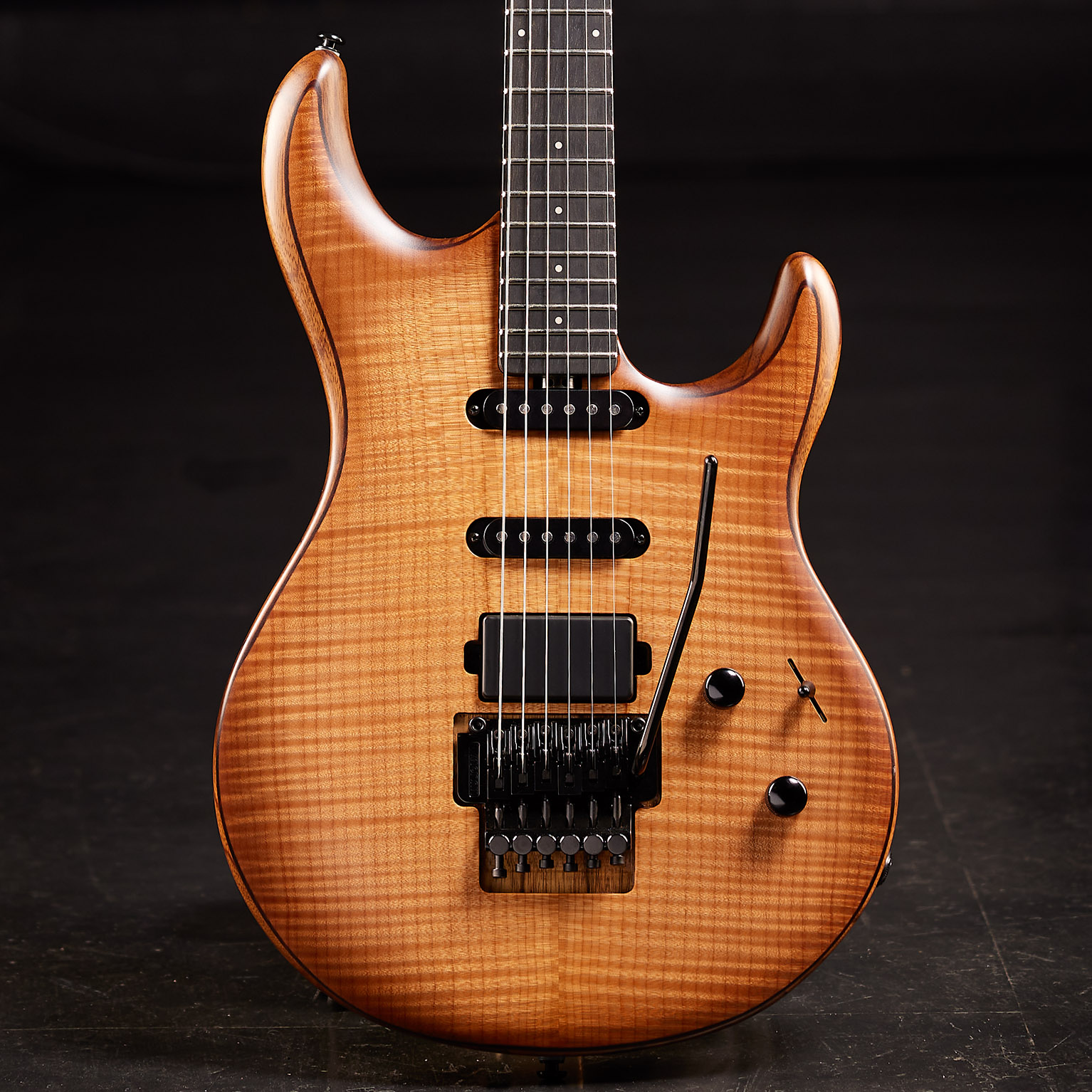

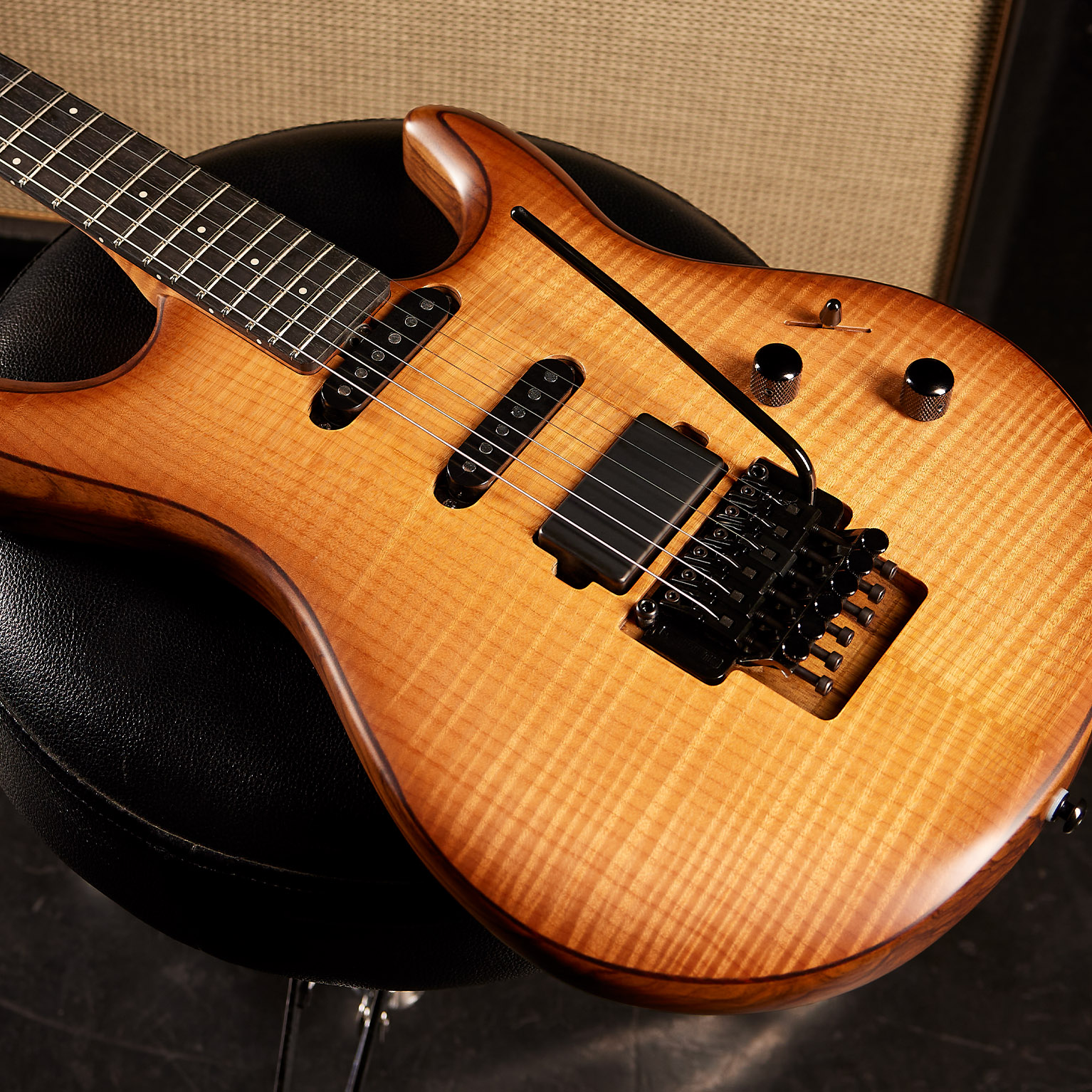

To commemorate the 30th anniversary of Grammy award-winning composer and EBMM signature artist Steve Lukather, the Ernie Ball Music Man company is proud to unveil the new 30th anniversary edition Luke 4. This fourth installment in the Lukather stable of signature guitars will be limited to only 150 instruments. Featuring a Steamroller Walnut Burst satin finish, this anniversary edition combines a beautiful flame maple top seated in an exotic Black Limba body with a figured roasted maple neck and ebony fingerboard. The proprietary HSS pickups are designed with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone at lower volume levels. This anniversary Luke 4 HSS shares many of the standard specifications of the previous Luke guitars, including a double-cut contoured body, a roasted maple neck with 22 nickel frets, 5-way switching, an adjustable 12dB boost, and Music Man's double locking tremolo. Each guitar includes a tremolo cover personally signed by Steve Lukather, a certificate of authenticity, and a Mono case.

Luke 4 30th Anniversary Logo

オプション

Steamroller

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Luke 4 30th Anniversary Highlights

Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Slide
Luke 4 30th Anniversary Highlight

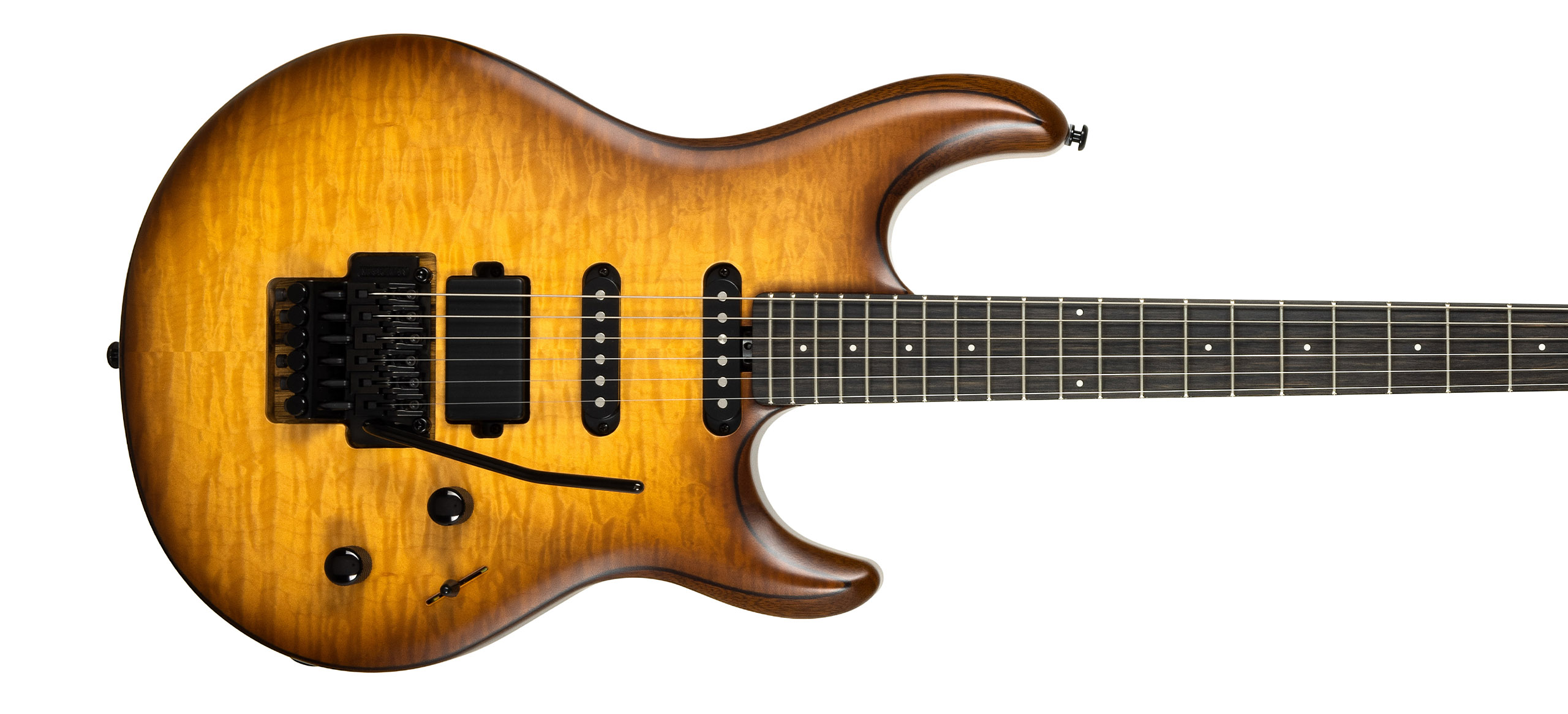

Exotic Black Limba body with figured maple top finished in a Steamroller Walnut burst finish
Luke 4 30th Anniversary Highlight
Crafted with a roasted maple neck, an ebony fingerboard, and 22 nickel frets
Luke 4 30th Anniversary Highlight
Equipped with Music Man's double-locking Floyd Rose-style tremolo

INSPIRED BY OVER A DECADE OF ELECTRIC GUITAR STRING RESEARCH

HT pickup technology is a new material-based innovation made possible by principles and insights learned from the research and development of Cobalt and M-Steel string technology.

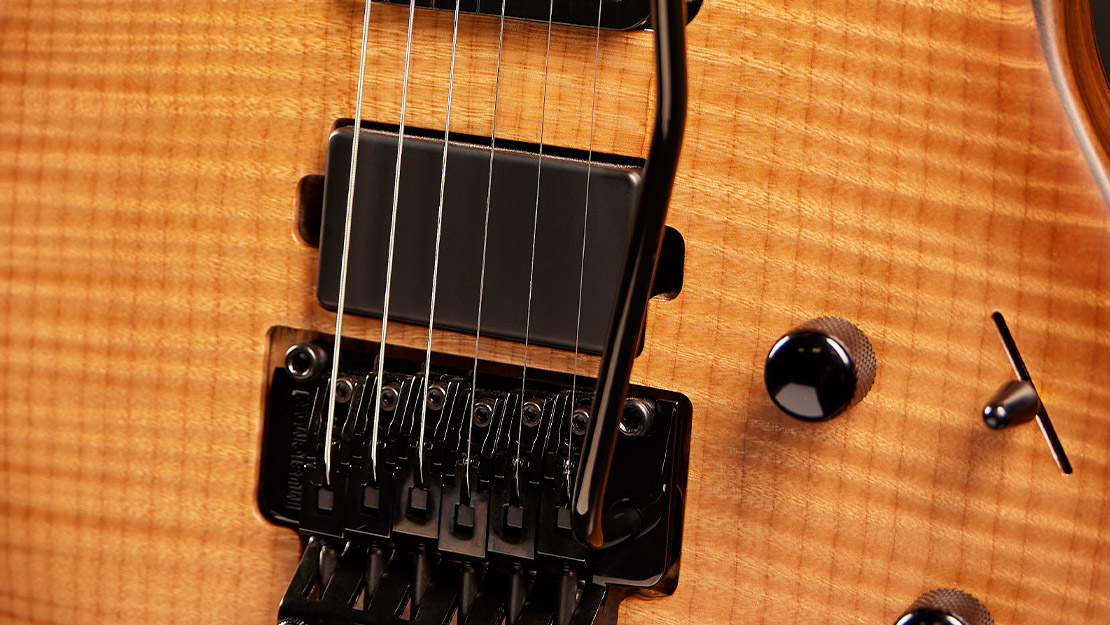

HT Humbucking Bridge Pickup

The Luke 4 HT bridge pickup outperforms regular spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup achieves ultra-high output and garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

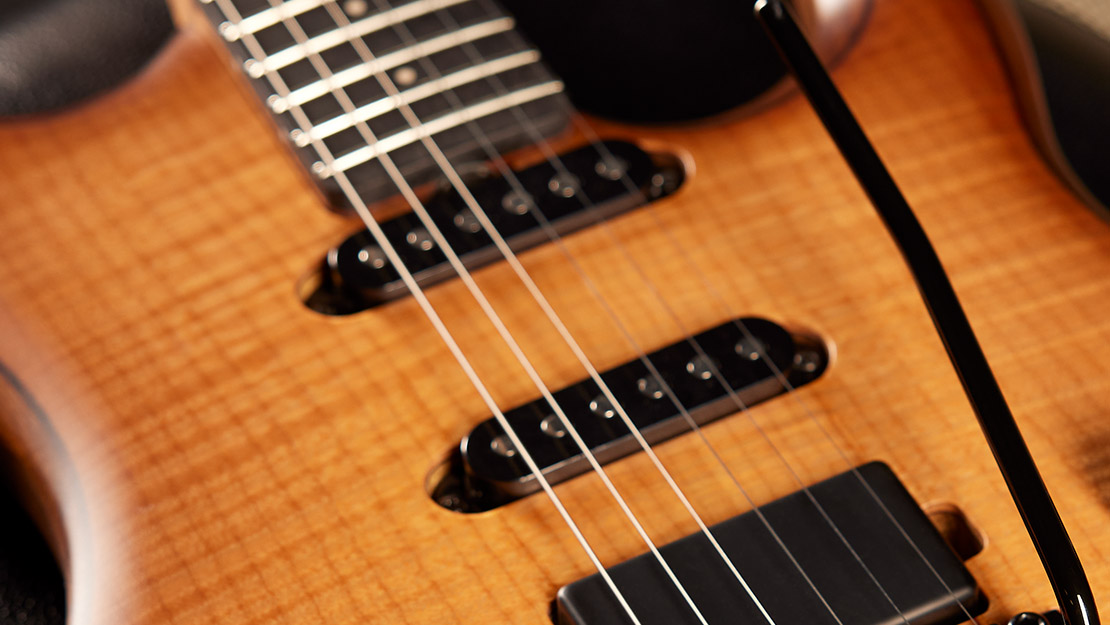

HT Single Coil Pickups

The Luke 4 HT single coil pickups can achieve an ultra-high-output, powerful, low-end response while retaining a clean, clear tone at lower volume levels. This set of pickups has been crafted for a complimentary tonal offering across all five switch positions.

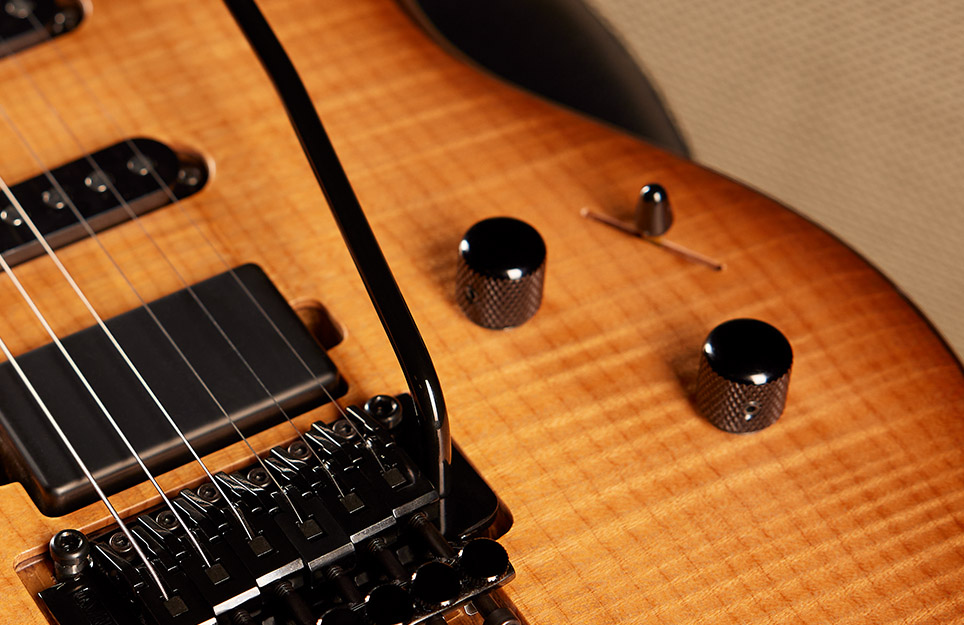

Push Push Boost Circuit

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

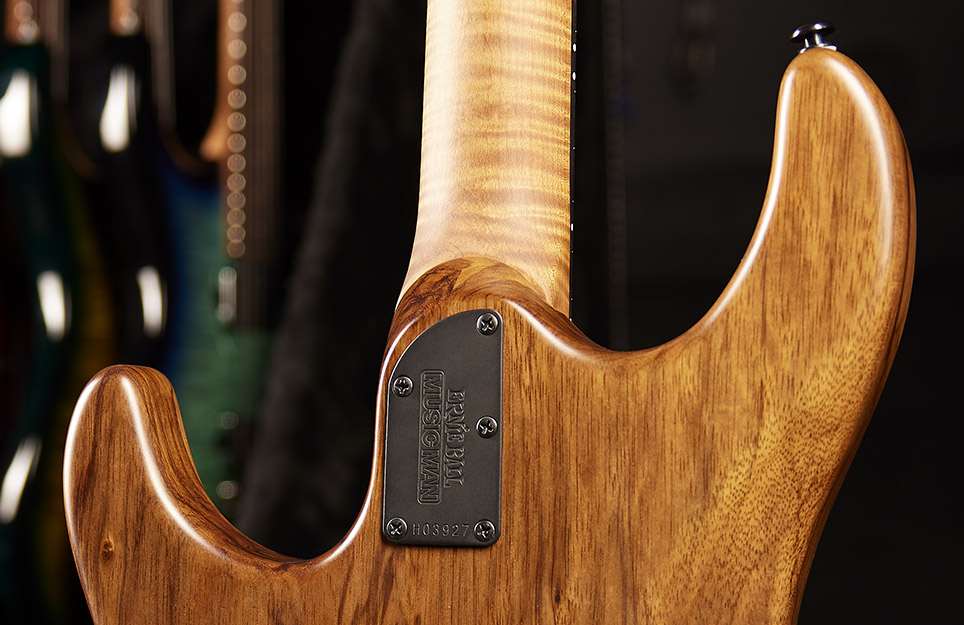

Designed to Perfection

The Luke 4's double-cutaway design features a balanced, resonant Black Limba body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

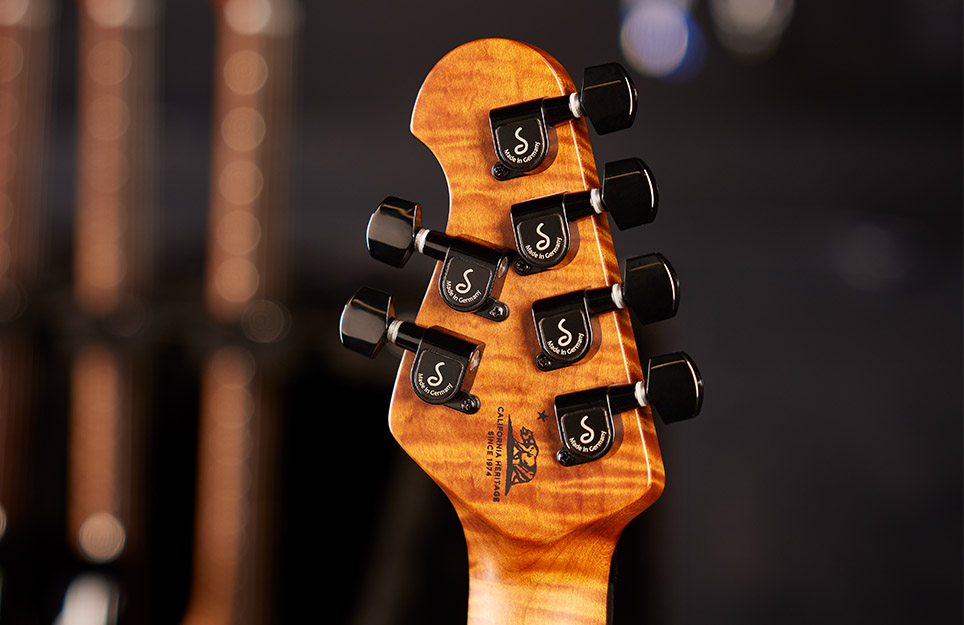

Schaller Tuners

The Luke 4 features black Schaller M6-IND tuners.

Specifications, Schematics & More

Specifications Luke 4 30th Anniversary
Model Luke 4 30th Anniversary
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Black Limba with Flame Maple Top
Body Finish Satin Polyester
Bridge Music Man® floating double-locking tremolo
Scale Length 25.5"
Neck Radius 12"
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Ebony
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Tuning Machines Schaller M6-IND
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Bridge - Music Man® HT Humbucker; Music Man® HT Single Coil Middle and Neck Pickups
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 113

iid => 113

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2023-09-13 14:21:56

updated_at => 2023-09-13 14:21:56

Specifications Luke 4 30th Anniversary
Model Luke 4 30th Anniversary
Order 0
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Black Limba with Flame Maple Top
Body Finish Satin Polyester
Body Colors
Body Bindings
Bridge Music Man® floating double-locking tremolo
Pickguard
Scale Length 25.5"
Neck Radius 12"
Headstock Size
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Ebony
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Bridge - Music Man® HT Humbucker; Music Man® HT Single Coil Middle and Neck Pickups
Left Handed
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
