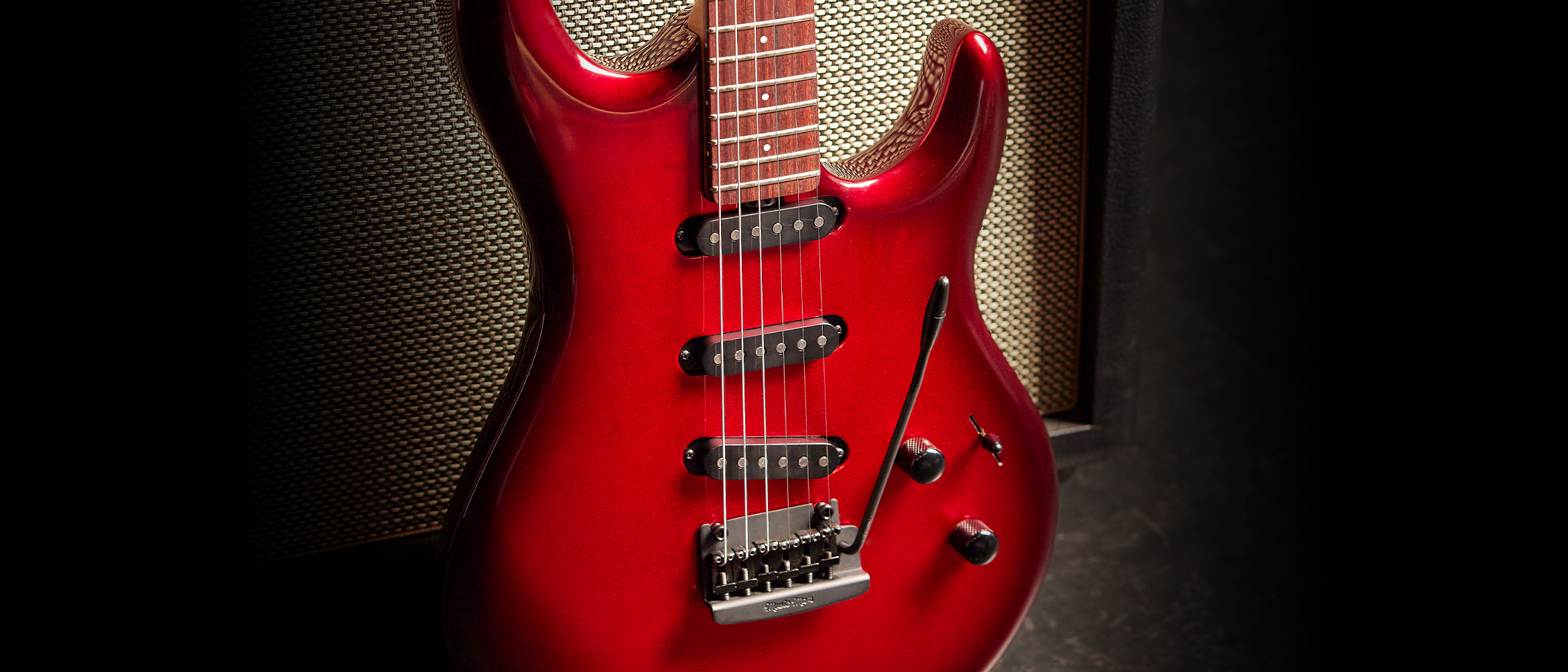

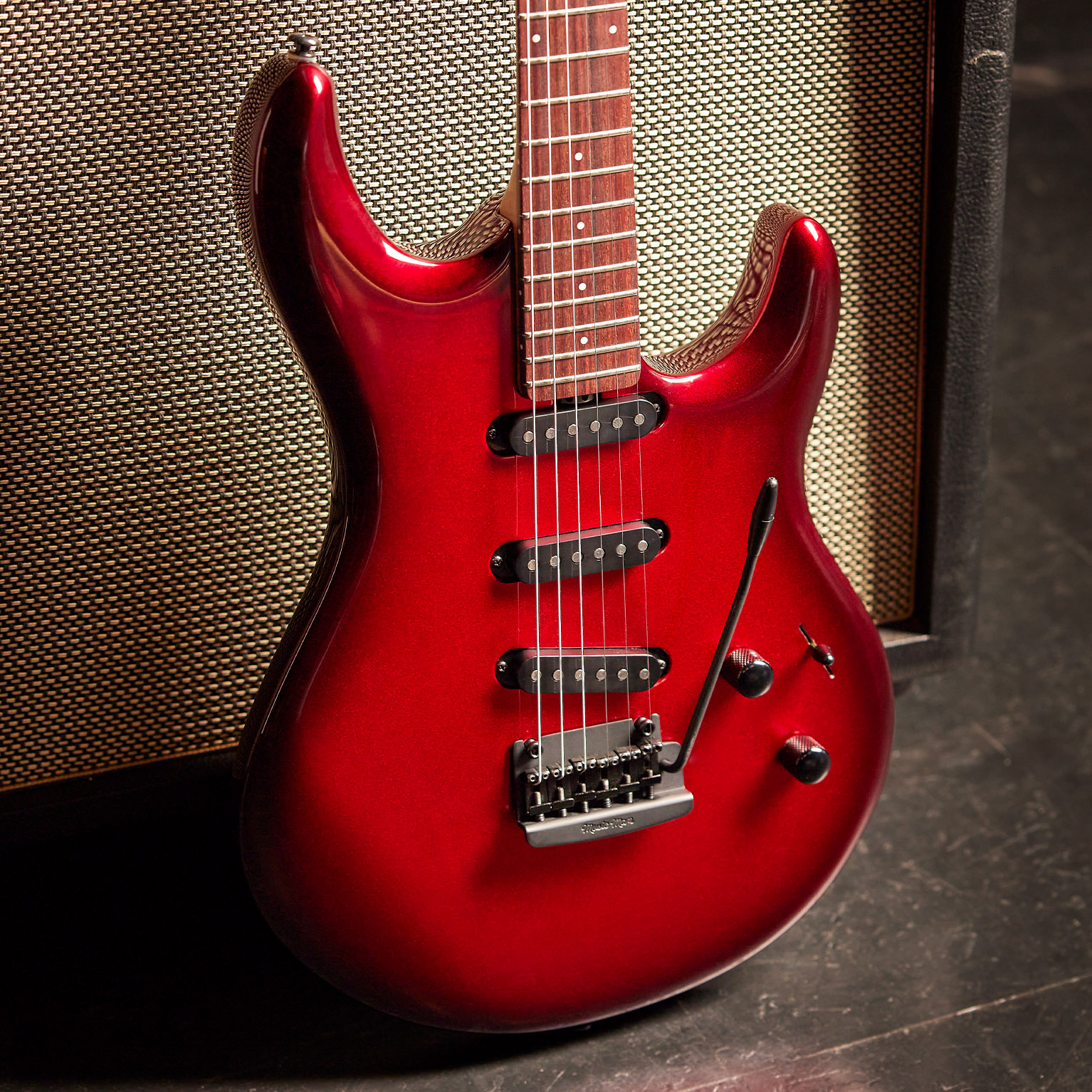

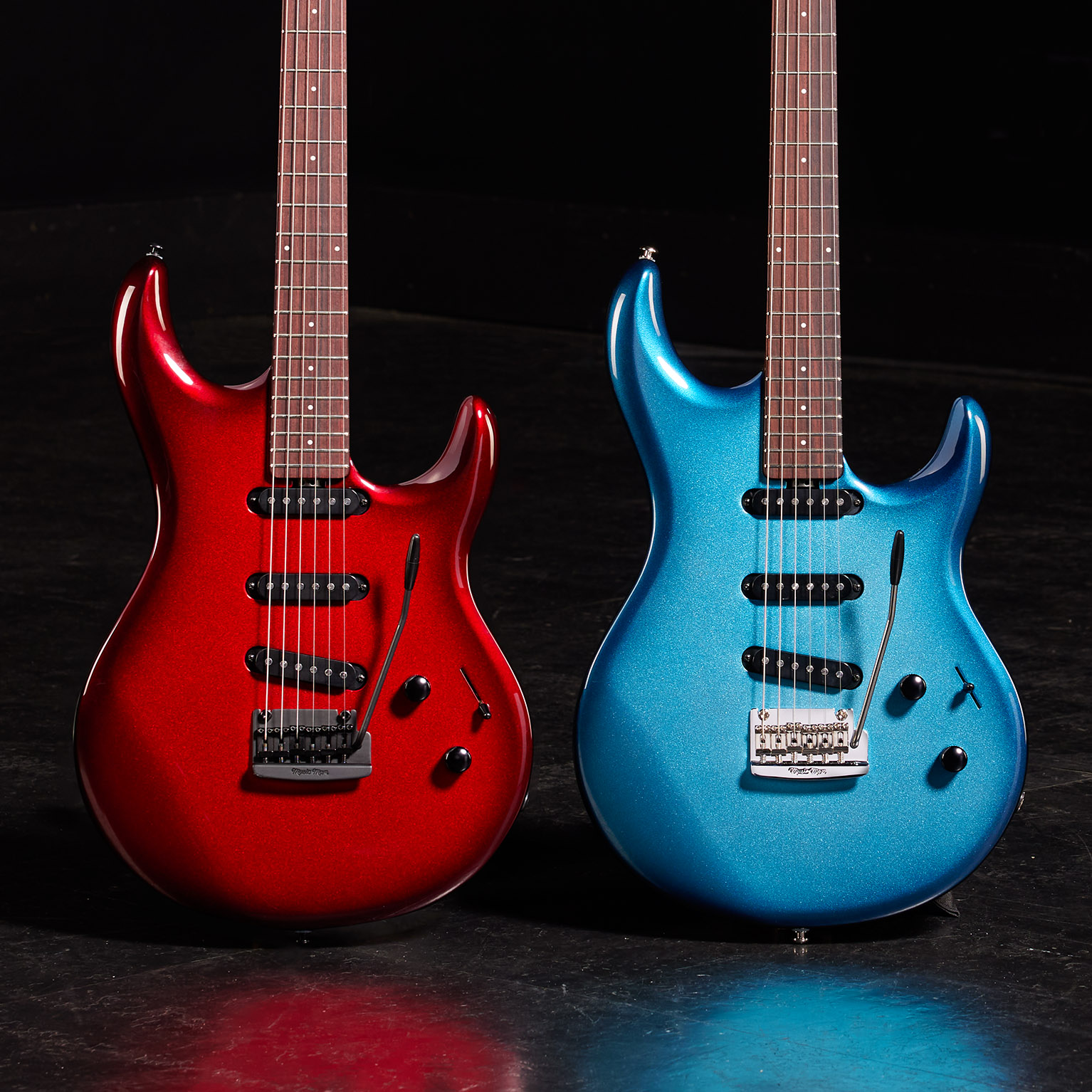

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather, the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 SSS signature guitar. This fourth installment in the Lukather signature line of instruments features a roasted alder body with a figured roasted maple neck and rosewood fingerboard. The Luke 4 is outfitted with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels. The Luke 4 SSS shares many of the standard specifications of the original Luke guitars, including a double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable 12db boost, a Music Man vintage floating tremolo, and ships in a Mono case

Luke 4 SSS Logo

オプション

Scoville Red

Diesel Blue

Bareback

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Luke 4 SSS Highlights

Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Slide
Luke 4 SSS Highlight
A roasted alder body with select hi-gloss polyester finishes
Luke 4 SSS Highlight
Crafted with a roasted maple neck, rosewood fingerboard, and 22 nickel frets
Luke 4 SSS Highlight
Equipped with an adjustable 12db boost and 5-way switch for more tonal diversity

INSPIRED BY OVER A DECADE OF ELECTRIC GUITAR STRING RESEARCH

HT pickup technology is a new material-based innovation made possible by principles and insights learned from the research and development of Cobalt and M-Steel string technology.

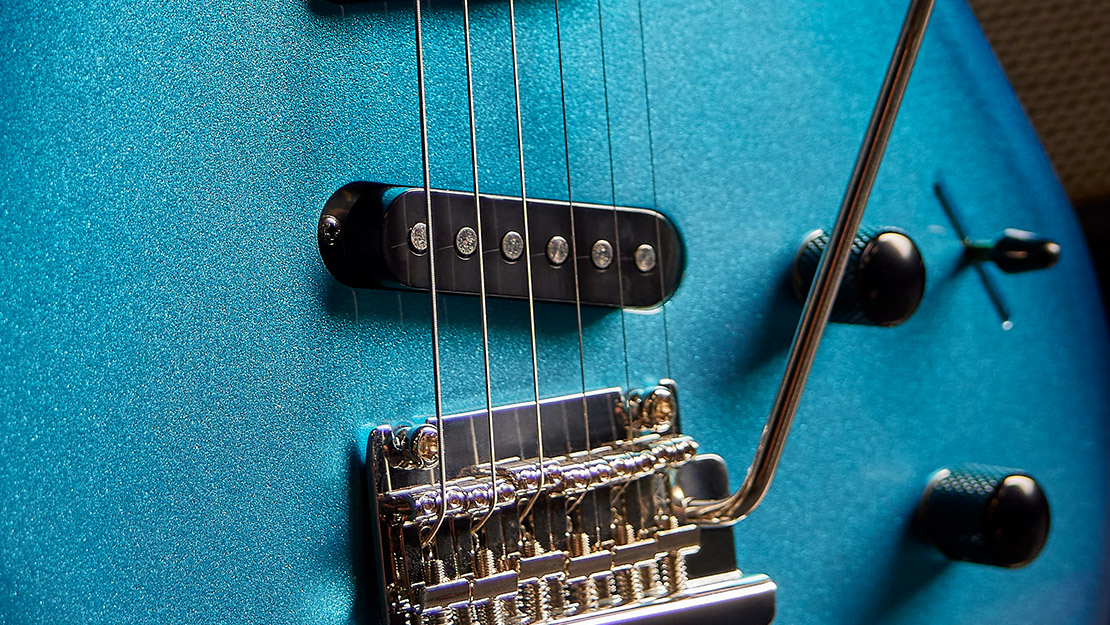

HT Single Coil Pickups

The Luke 4 HT single coil pickups can achieve an ultra-high-output, powerful, low-end response while retaining a clean, clear tone at lower volume levels. This set of pickups has been crafted for a complimentary tonal offering across all five switch positions.

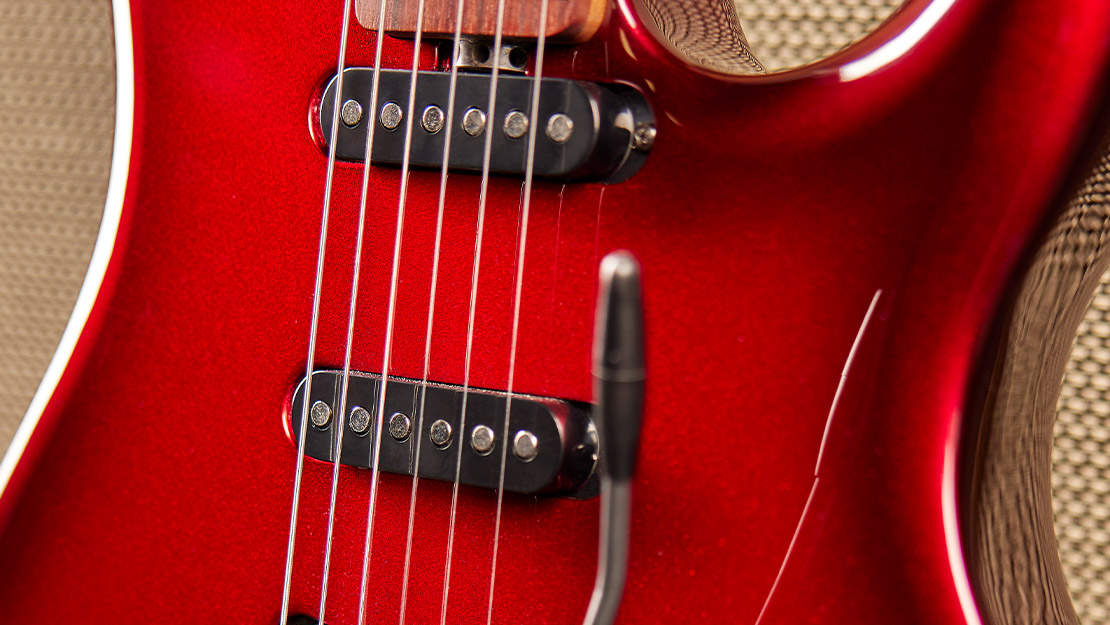

Silent Circuit

The silent circuit essentially creates and infuses opposite frequencies generated by the actual pickup to neutralize the sound of the hum. You hear the pickup's pure, unadulterated natural tone without the annoying 60-cycle buzz.

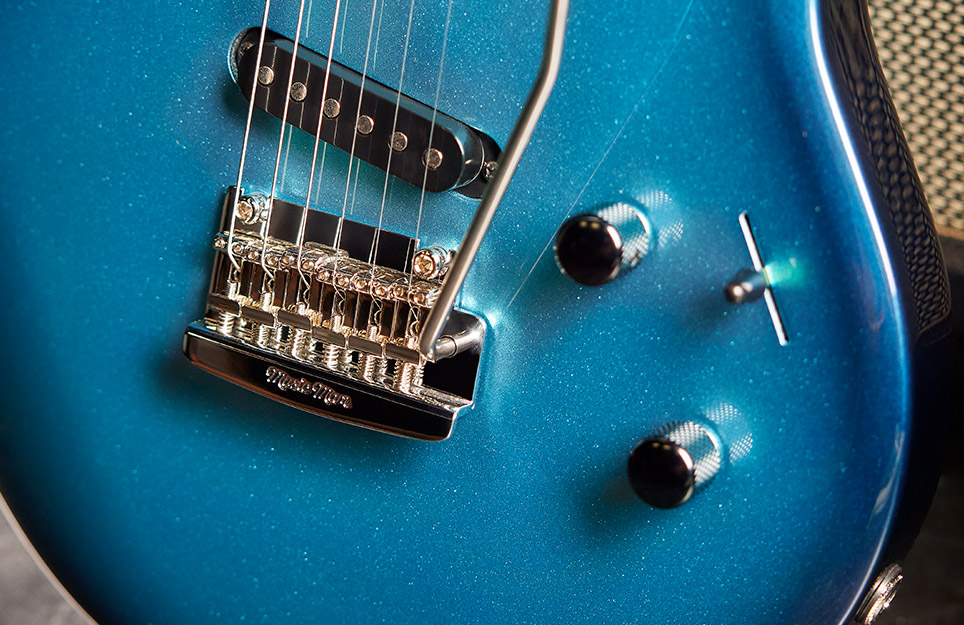

Push Push Boost Circuit

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

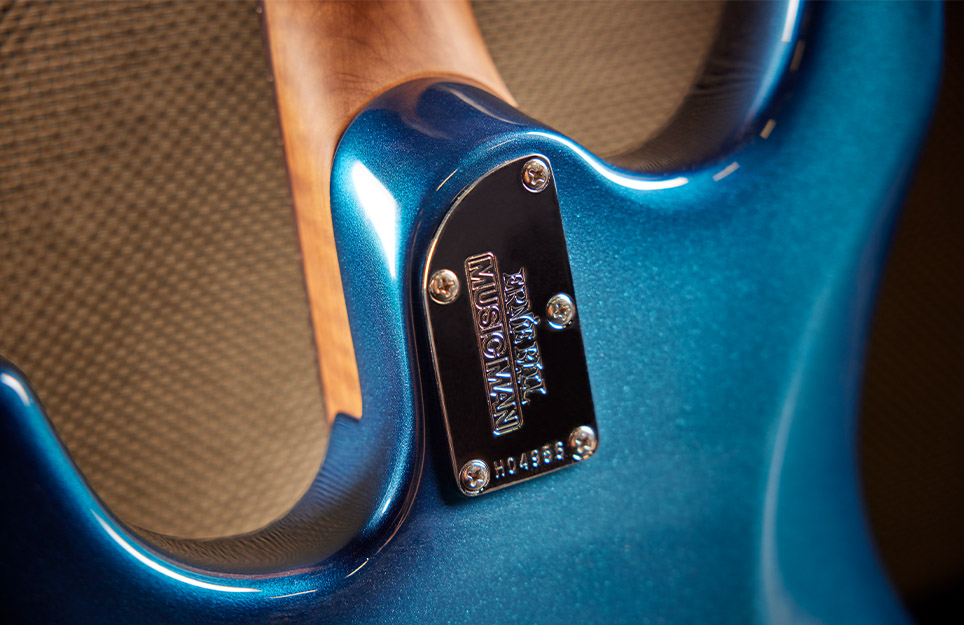

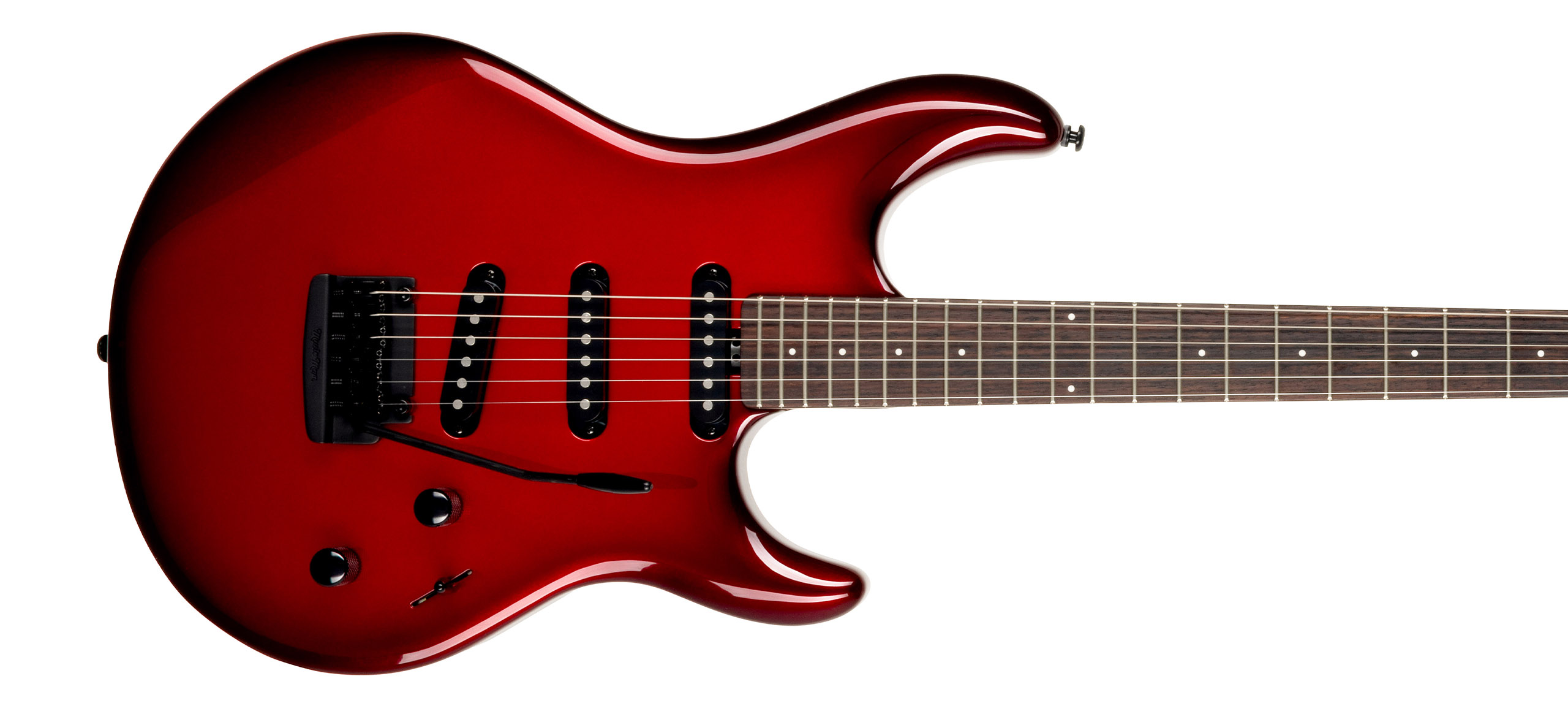

Designed to Perfection

The Luke 4's double-cutaway design features a balanced, resonant roasted alder body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

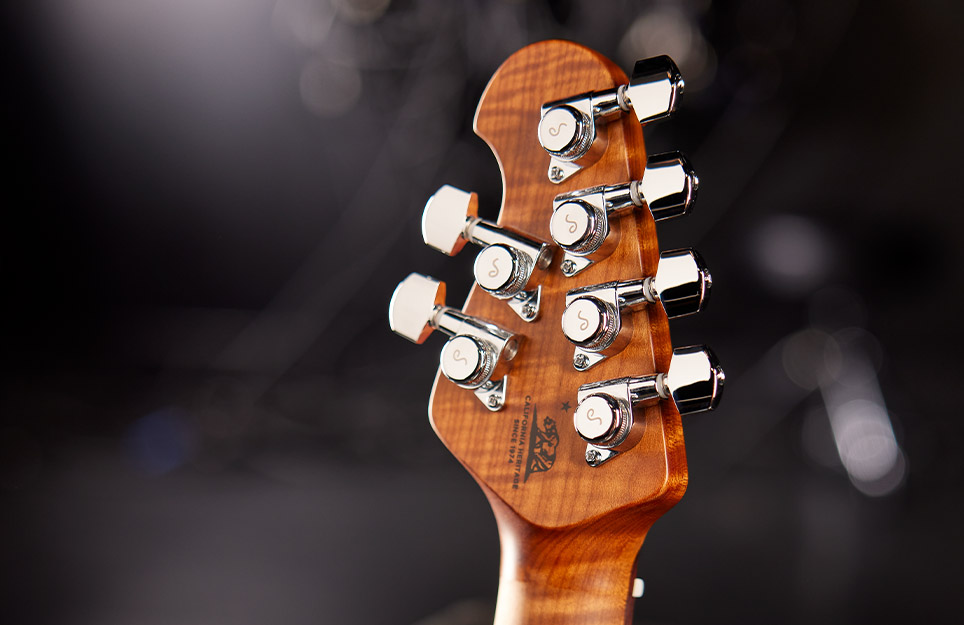

Schaller Locking Tuners

The Luke 4 features Schaller M6-IND locking tuners in Chrome or Black hardware.

Specifications, Schematics & More

Specifications
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Roasted Alder
Body Finish High gloss polyester
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Scale Length 25.5"
Neck Radius 12"
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Rosewood
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Music Man® HT Single Coils
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 112

iid => 112

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2023-09-13 14:19:24

updated_at => 2023-09-13 14:19:24

Specifications
Model
Order 0
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Roasted Alder
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Pickguard
Scale Length 25.5"
Neck Radius 12"
Headstock Size
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Rosewood
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Music Man® HT Single Coils
Left Handed
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
