スティーブ・ルカサーのシグネイチャー・モデルの最新の進化形は、軽量なオクメ・ボディにフィギュアド・メイプル・トップを採用、新設計のカスタム・エレクトロニクスを搭載し、快適さ、美しさ、そして多彩な音色を完璧に融合しています。HHモデルには、新設計のハムバッキング・ピックアップを搭載。HSSモデルには、同じく新設計のハムバッカーに加え、アーニーボール・ミュージックマン独自のサイレント・サーキットを使用したカスタムのシングルコイルを搭載。5ウェイ・スイッチと12dBブースト・プッシュ/プッシュ・ボリューム・コントロールを活用するすることで、多彩な音色を楽しむことができます。

Luke III Maple Top Logo

オプション

Luscious Green Quilt

Luscious Green Flame

Cherry Burst Quilt

Cherry Burst Flame

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Luke III Maple Top Highlights

Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Slide
Luke III Maple Top Highlight
厳選されたカスタム・ハイグロス・ポリエステル・フィニッシュが施された、軽量なメイプル・トップ/オクメ・ボディ。
Luke III Maple Top Highlight
Figured roasted maple neck with rosewood fingerboard
Luke III Maple Top Highlight
Equipped with a 5-way switch for more tonal diversity and a 12db boost

A SOUND INVESTMENT

CUSTOM DESIGNED SIGNATURE PICKUPS

Newly designed custom Ernie Ball Music Man humbucking pickups offer more clarity, sustain, and a wider range frequency response.

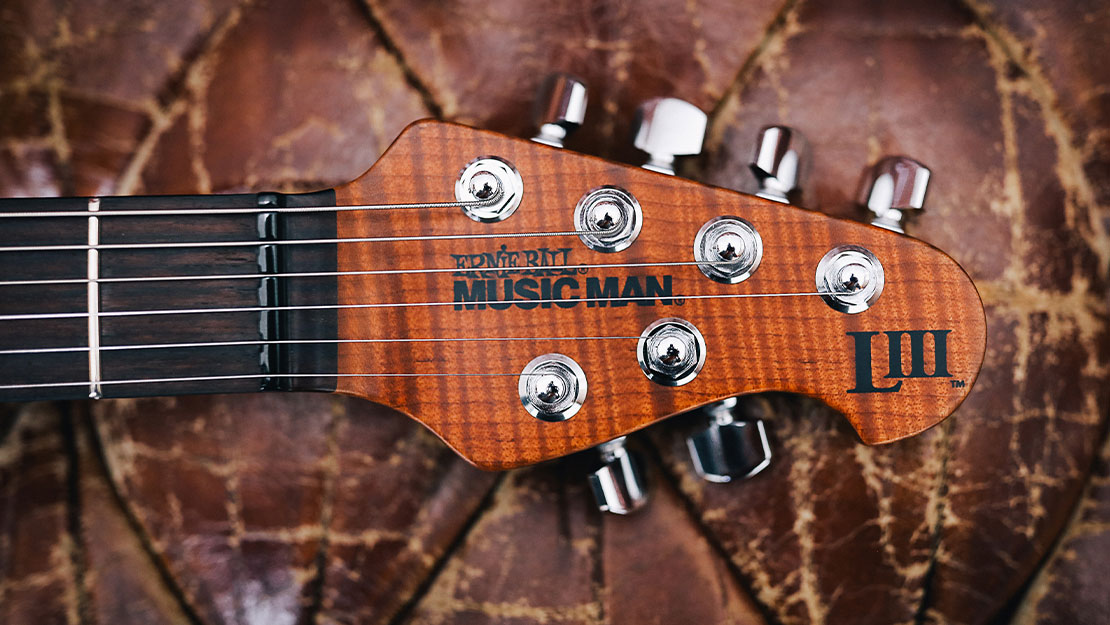

Roasted Neck

Features a roasted figured maple neck and headstock with Schaller locking tuners.

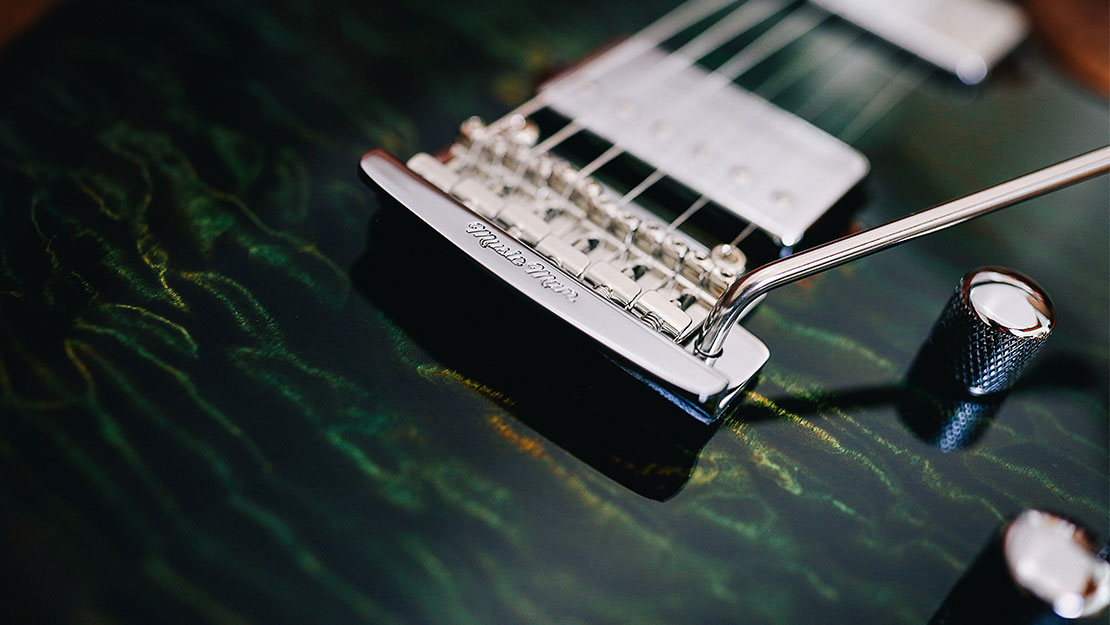

Floating Tremolo

Ernie Ball Music Man super smooth vintage tremolo system raises and lowers pitch

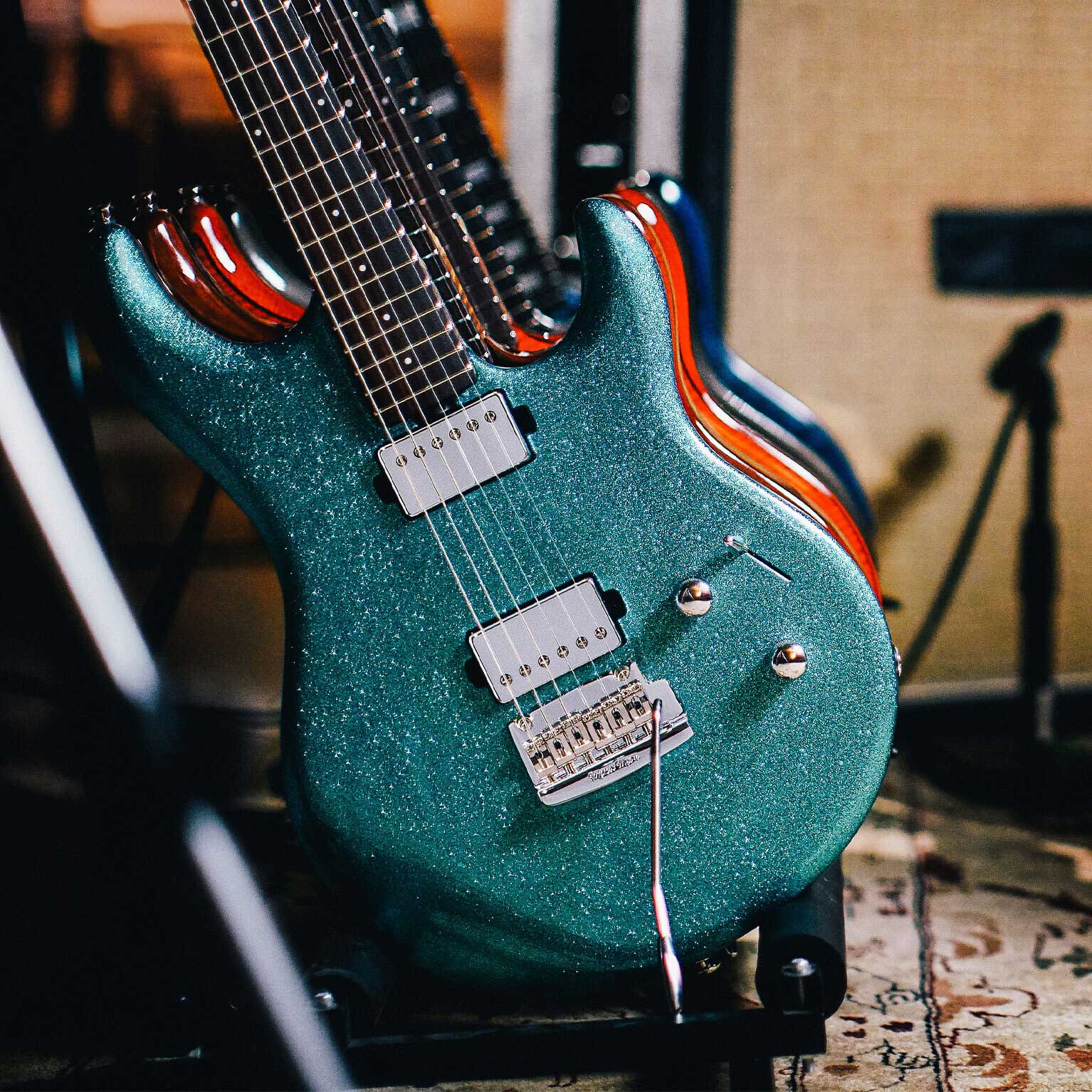

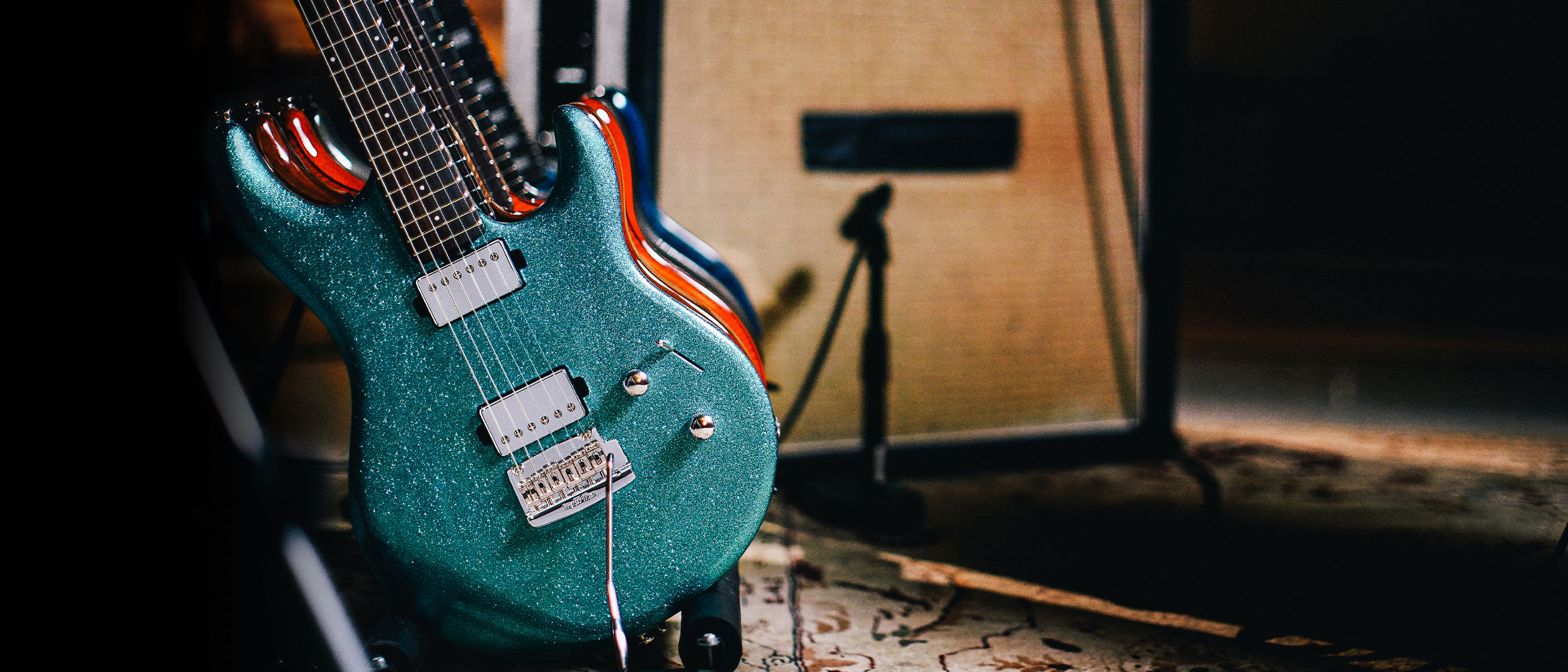

ENGINEERED TO PERFORM

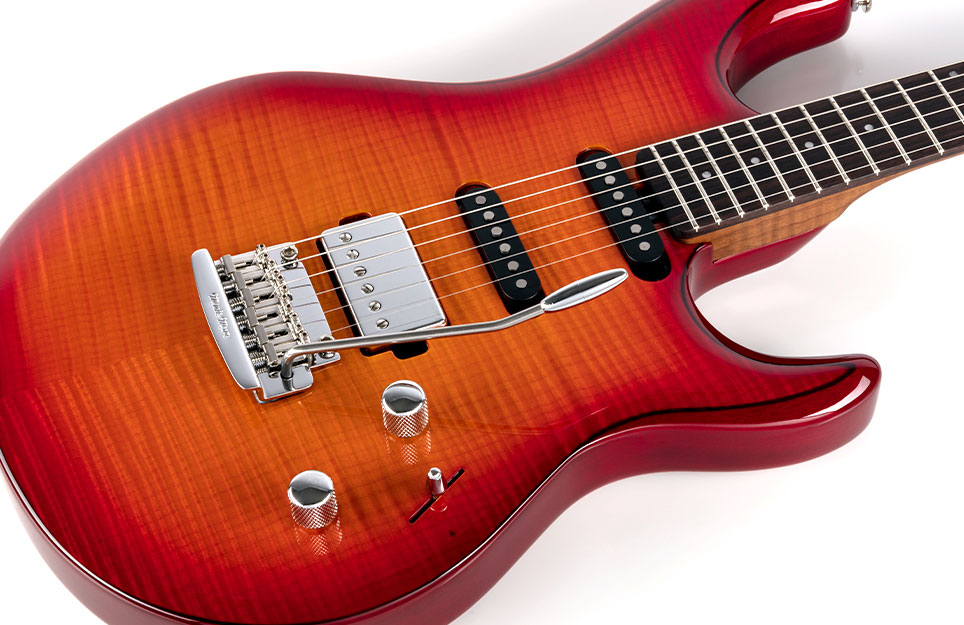

DESIGNED TO PERFECTION

The 2020 Maple top Luke III’s eloquently shaped double-cutaway design features a lightweight Okoume body perfectly balanced for extreme playing comfort. The premium roasted maple neck is beautifully figured, durable, and features a soft “V” profile that fits comfortably in the palm of your hand.

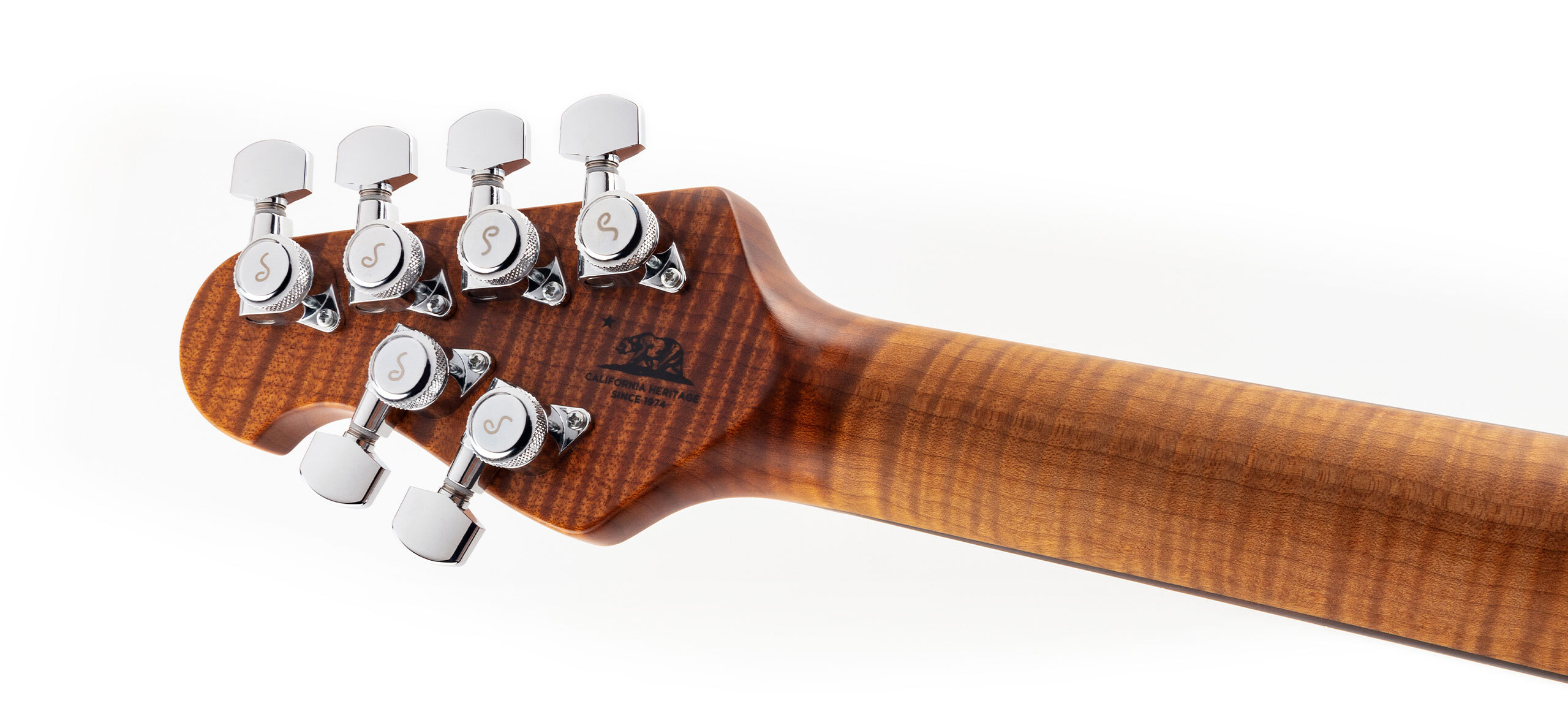

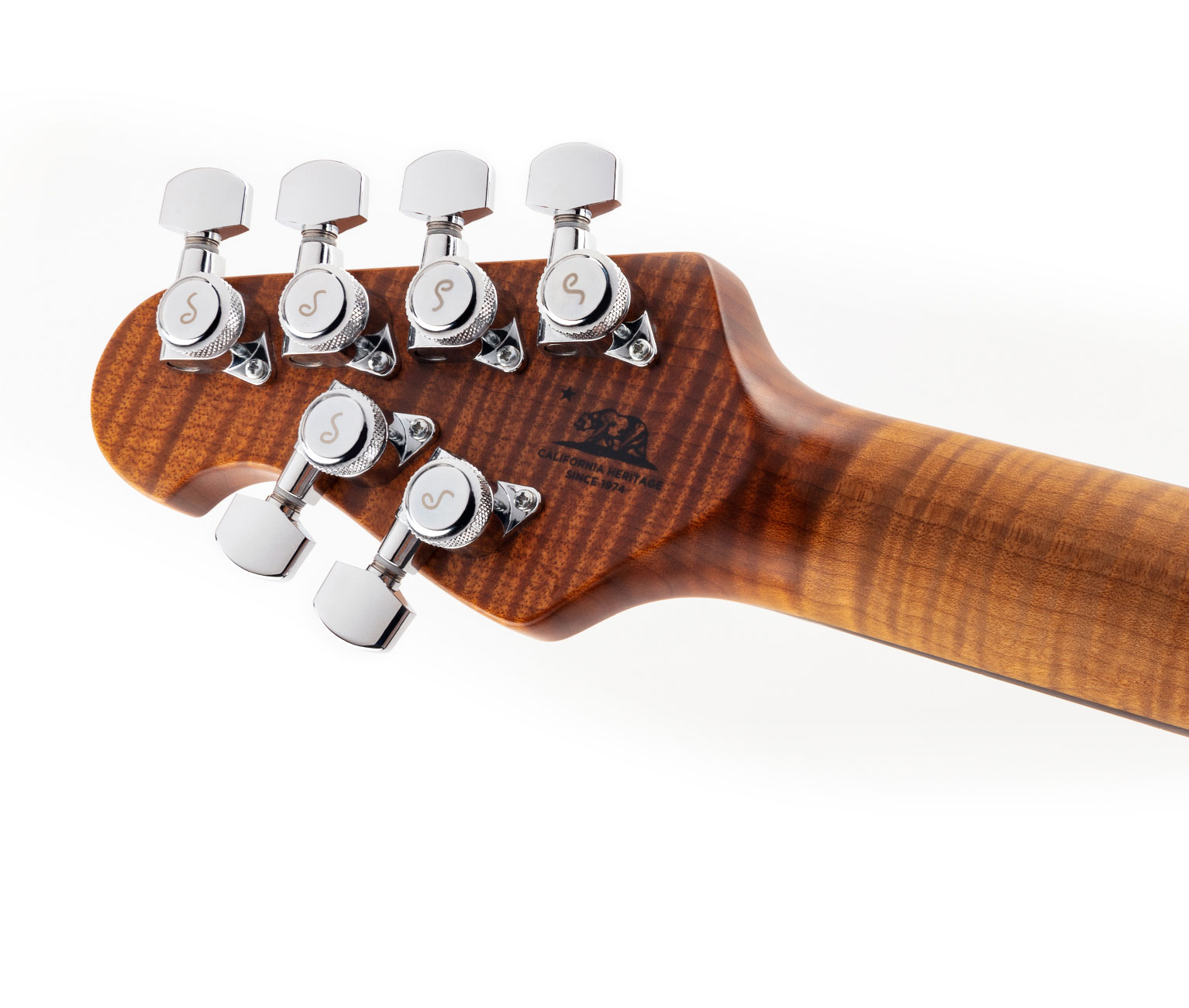

SCHALLER LOCKING TUNERS

The Luke III Maple Top features Schaller M6-IND locking tuners in Chrome or Black hardware.

Specifications, Schematics & More

Specifications Luke III Maple Top
Model Luke III Maple Top
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Okoume
Body Finish High gloss polyester
Body Bindings N/A
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Pickguard N/A
Scale Length 25-1/2" (64.8 cm)
Neck Radius 12" (30.5 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - Low profile, wide
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select figured roasted maple neck
Fingerboard Rosewood
Fret Markers Atlante Dot Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Roasted
Neck Binding N/A
Tuning Machines Schaller M6-IND locking
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm passive tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with chrome covers, Bridge- Alnico Magnet, Neck Ceramic Magnet / HSS - 2 Music Man custom wound single coils with wide spectrum MM Silent Circuit, Alnico Magnets, 1 Music Man custom wound humbucking pickup, Alnico
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 91

iid => 91

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2020-08-05 09:33:28

updated_at => 2020-08-05 09:33:28

Specifications Luke III Maple Top
Model Luke III Maple Top
Order 0
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Okoume
Body Finish High gloss polyester
Body Colors
Body Bindings N/A
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Pickguard N/A
Scale Length 25-1/2" (64.8 cm)
Neck Radius 12" (30.5 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - Low profile, wide
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select figured roasted maple neck
Fingerboard Rosewood
Fret Markers Atlante Dot Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Roasted
Neck Binding N/A
Tuning Machines Schaller M6-IND locking
Truss Rod
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm passive tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with chrome covers, Bridge- Alnico Magnet, Neck Ceramic Magnet / HSS - 2 Music Man custom wound single coils with wide spectrum MM Silent Circuit, Alnico Magnets, 1 Music Man custom wound humbucking pickup, Alnico
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
