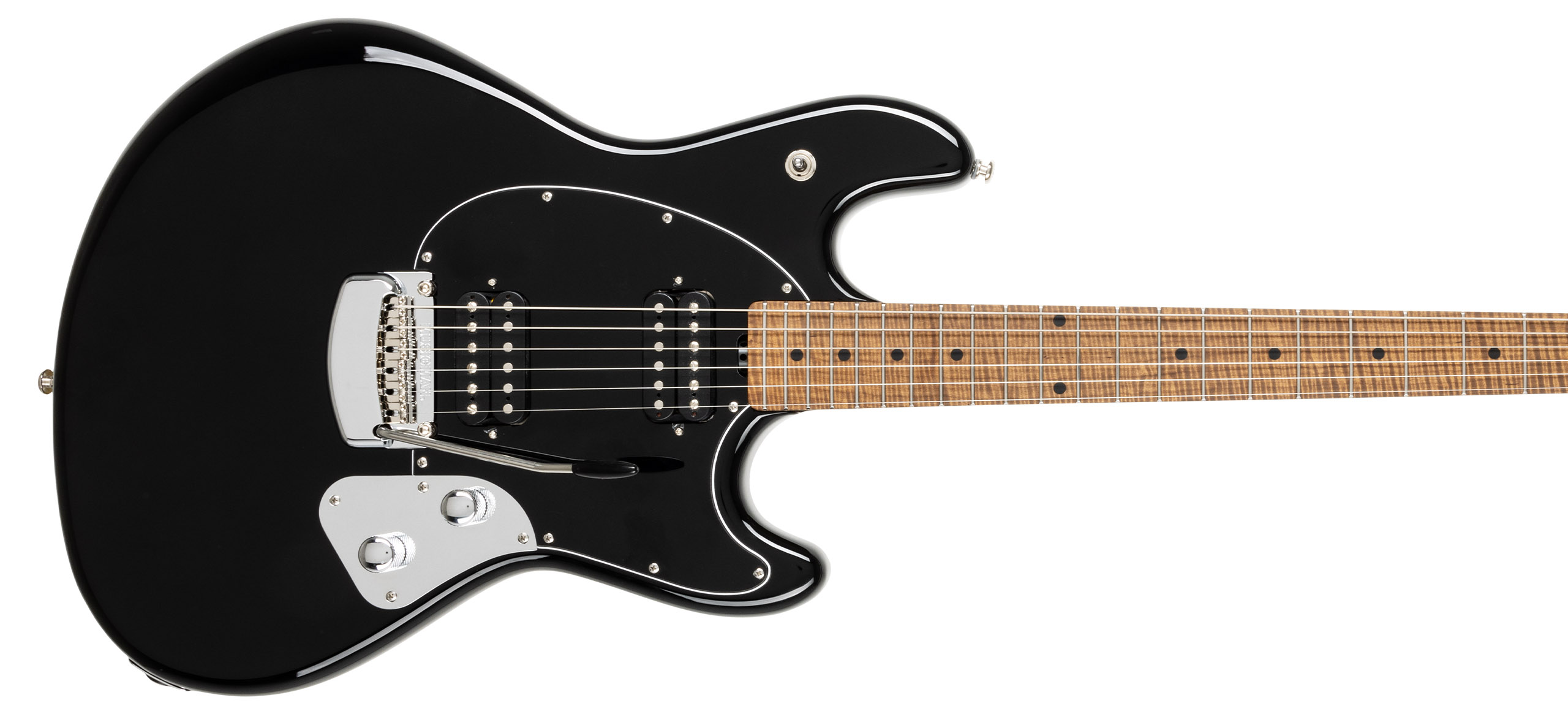

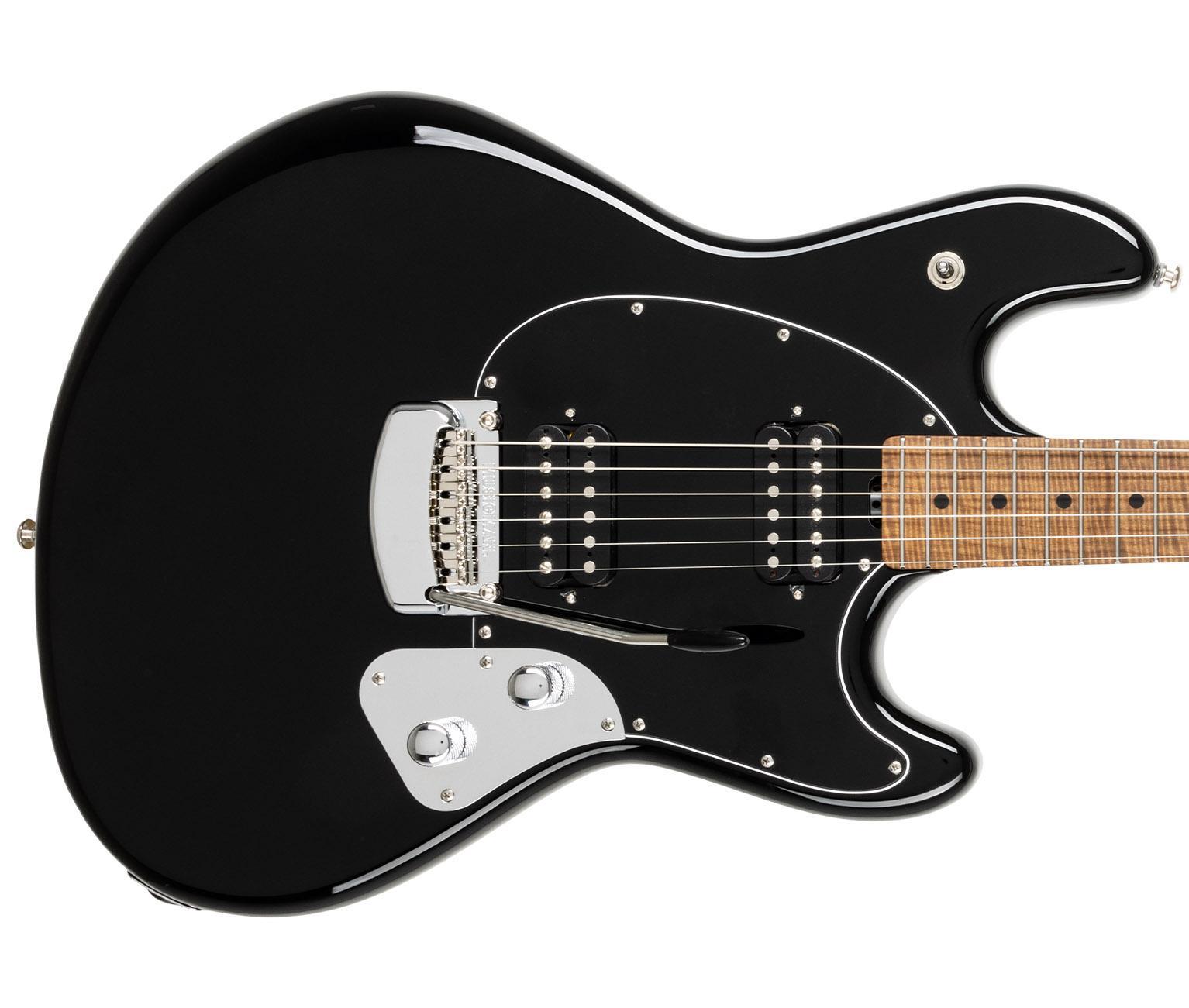

StingRay Guitar RSは、1970年代のオリジナル・デザインを基本にして生まれたモデルです。厳選したローステッドのフィギュアード・メイプルのネックを採用し、2ハムバッキング・ピックアップを搭載。フレットは硬質なステンレス・スティールを使用し、指板材は、ボディー・カラーによってローステッド・フィギュアード・メイプル、またはローズウッドを採用しています(ステルス・ブラックのみスタンダード・メイプルにエボニー指板)。ボディ材にはアフリカン・マホガニーを採用、ピックアップはメタル・カバードのカスタム・ワウンドによるハムバッキング・ピックアップをマウントし、3ウェイのトグル・スイッチを装備しています。シャーラー製のM6-INDロッキング・チューナーとヴィンテージ・ベント・スティールのサドルを採用したカバー付きのモダン・トレモロを搭載することにより、チューニングの狂いを抑えながらトレモロ・プレイにも対応するなど、ヴィンテージなルックスと現代の技術を融合させたギターです。※接続するシールド・ケーブルのプラグは1/4インチ(φ6.35mm)軸サイズのものをご使用ください。φ6.3mm軸サイズでは音が正しく出ない場合がございます。

StingRay RS Logo

オプション

Burnt Amber

Powder Blue

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

StingRay RS Highlights

StingRay RS Slide
StingRay RS Slide
StingRay RS Slide
StingRay RS Slide
StingRay RS Slide
StingRay RS Slide
StingRay RS Slide
StingRay RS Highlight

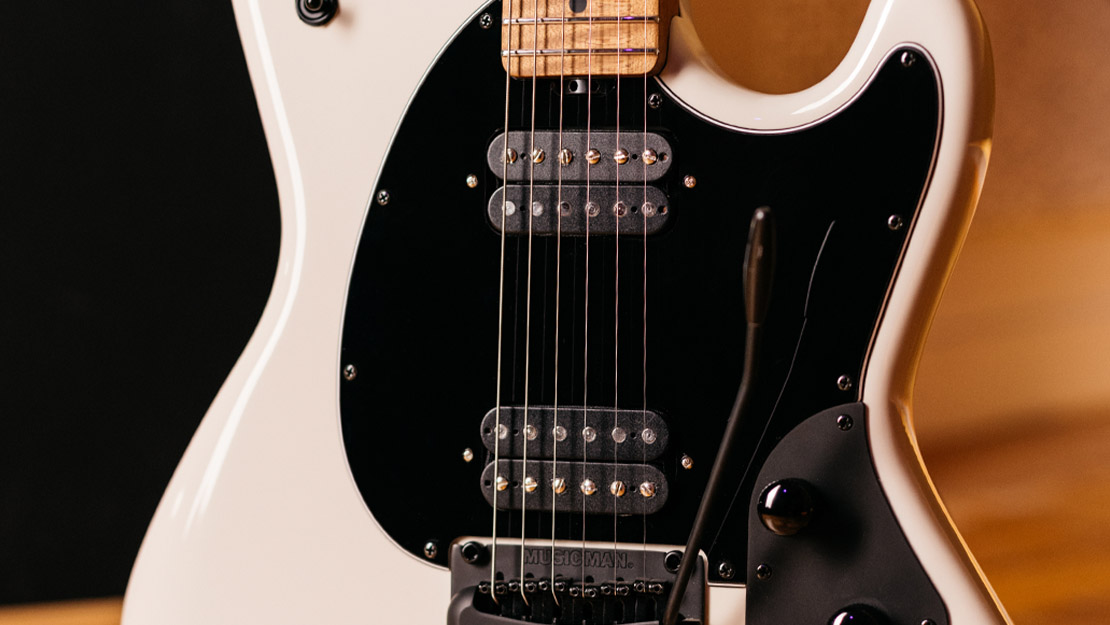

アーニーボール・ミュージックマン・アルニコ5ハムバッカー
StingRay RS Highlight

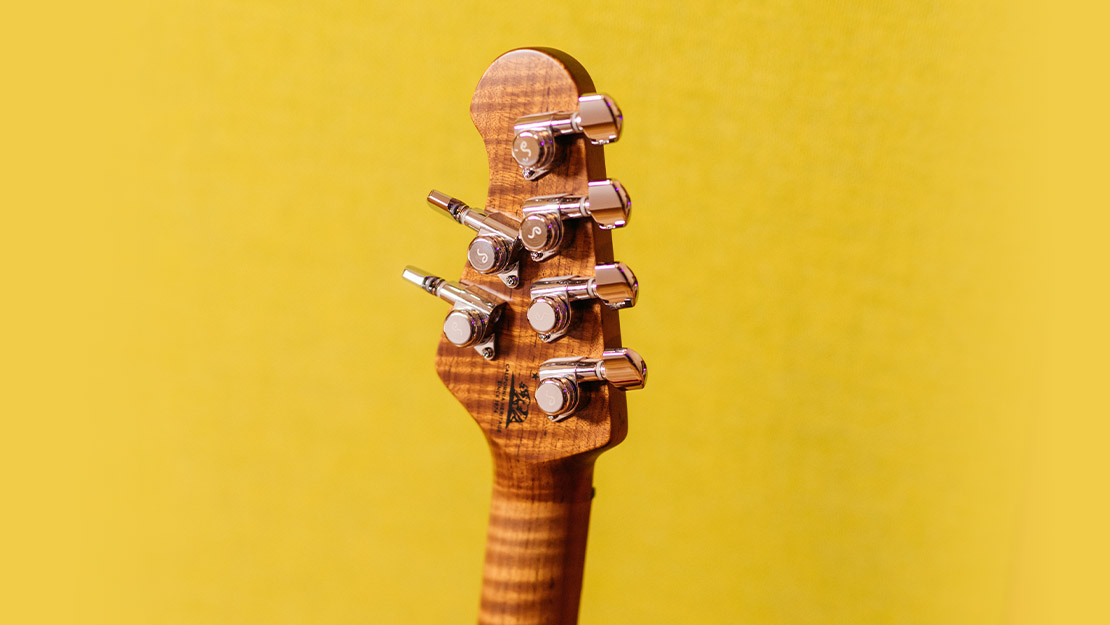

ローステッド・フィギュアード・メイプル・ネック
StingRay RS Highlight

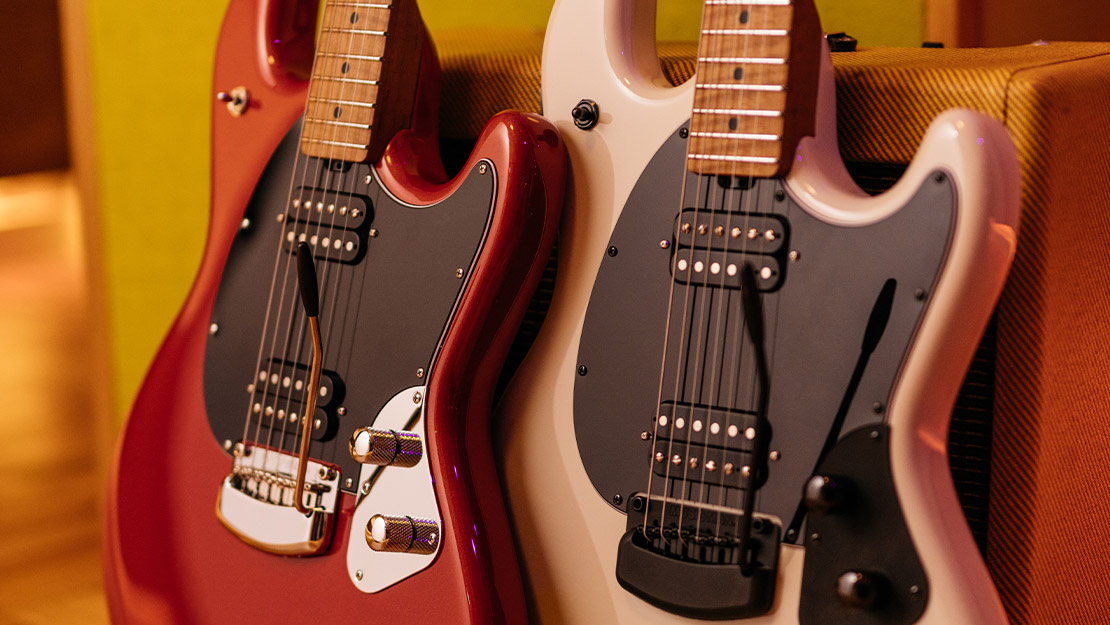

モダン・クラシック・トレモロ

Specifications, Schematics & More

Specifications StingRay RS
Model StingRay RS
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood African mahogany
Body Finish High gloss polyester
Body Colors Firemist Silver, Ivory White, Vintage Sunburst, Vintage Turquoise, Charcoal Frost, Coral Red, Stealth Black
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Parchment (Firemist Silver, Vintage Turquoise, or Coral Red); Mint (Ivory White); Shell (Vintage Sunburst or Charcoal Frost); Matte Black (Stealth)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted figured maple on all except the Stealth Black (standard maple)
Fingerboard Roasted Figured Maple (Vintage Turquoise, Vintage Sunburst,); Rosewood ( Ivory White, Coral Red Red, or Charcoal Frost); Ebony (Stealth)
Fret Markers 1/4" Black or White Face dots
Neck Finish Hand rubbed oil and wax finish on all but Stealth Black, which features an ultra-light satin polyurethane finish
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Chrome plated aluminum control cover (Black on Stealth)
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 3-way toggle pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with chrome covers (Black on Stealth)
Left Handed No
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)

id => 71

iid => 71

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:42

updated_at => 2015-11-06 08:20:42

Specifications StingRay RS
Model StingRay RS
Order 0
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood African mahogany
Body Finish High gloss polyester
Body Colors Firemist Silver, Ivory White, Vintage Sunburst, Vintage Turquoise, Charcoal Frost, Coral Red, Stealth Black
Body Bindings
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Parchment (Firemist Silver, Vintage Turquoise, or Coral Red); Mint (Ivory White); Shell (Vintage Sunburst or Charcoal Frost); Matte Black (Stealth)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted figured maple on all except the Stealth Black (standard maple)
Fingerboard Roasted Figured Maple (Vintage Turquoise, Vintage Sunburst,); Rosewood ( Ivory White, Coral Red Red, or Charcoal Frost); Ebony (Stealth)
Fret Markers 1/4" Black or White Face dots
Neck Finish Hand rubbed oil and wax finish on all but Stealth Black, which features an ultra-light satin polyurethane finish
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Chrome plated aluminum control cover (Black on Stealth)
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 3-way toggle pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with chrome covers (Black on Stealth)
Left Handed No
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)
