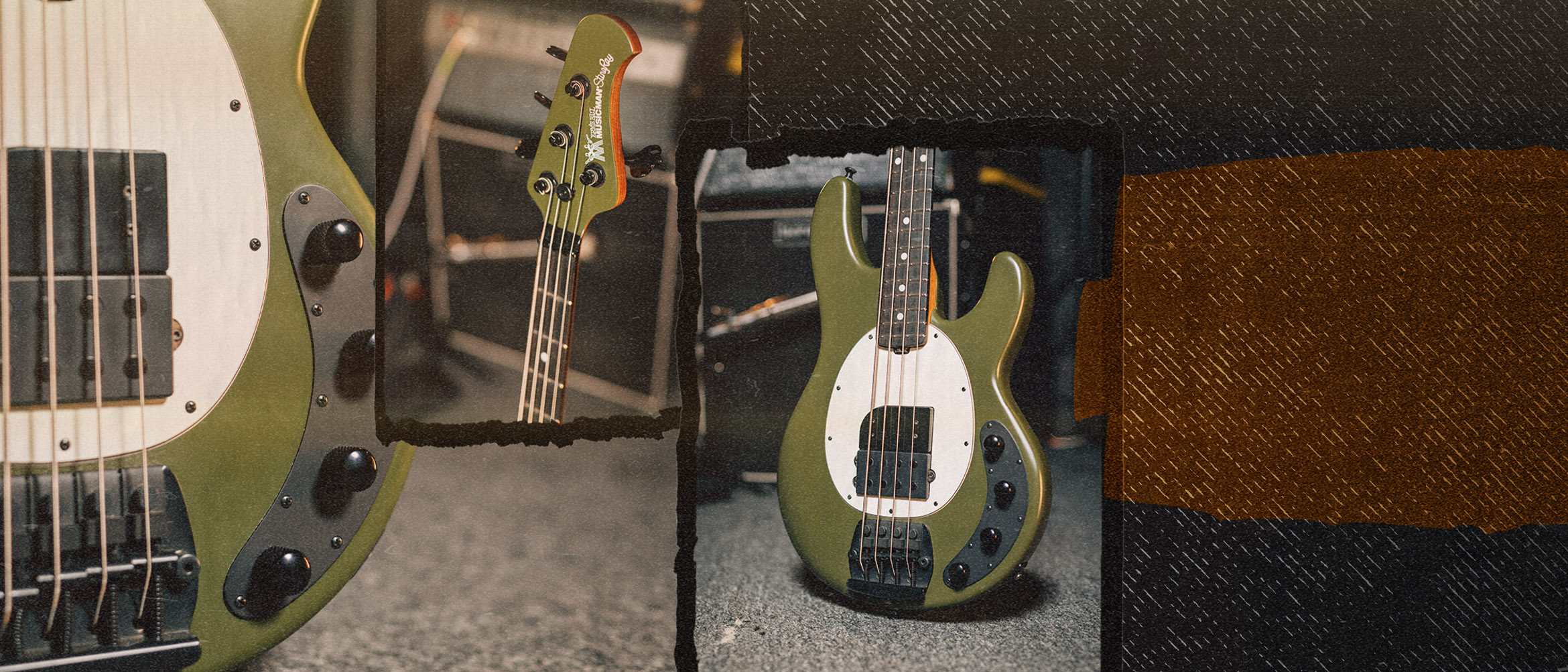

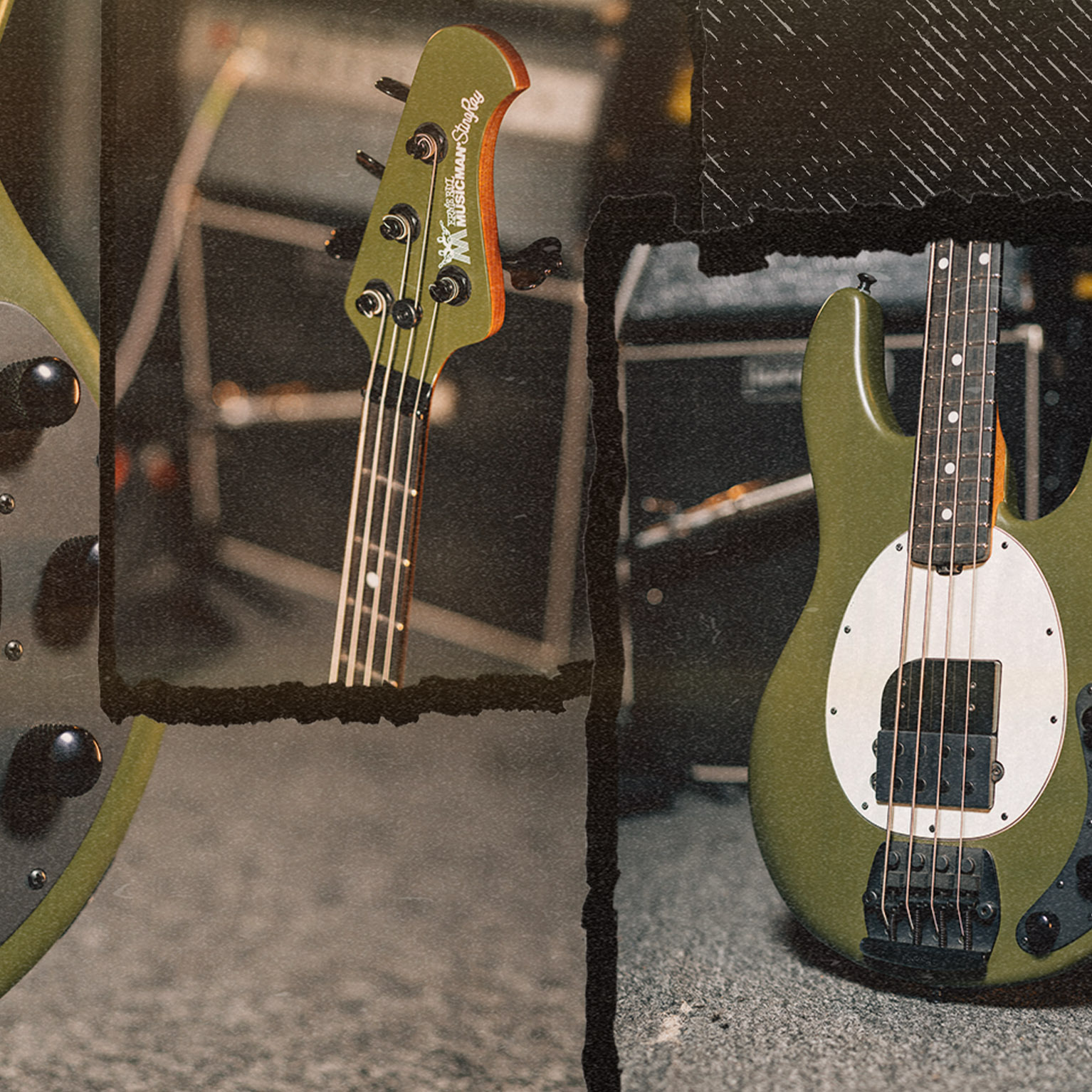

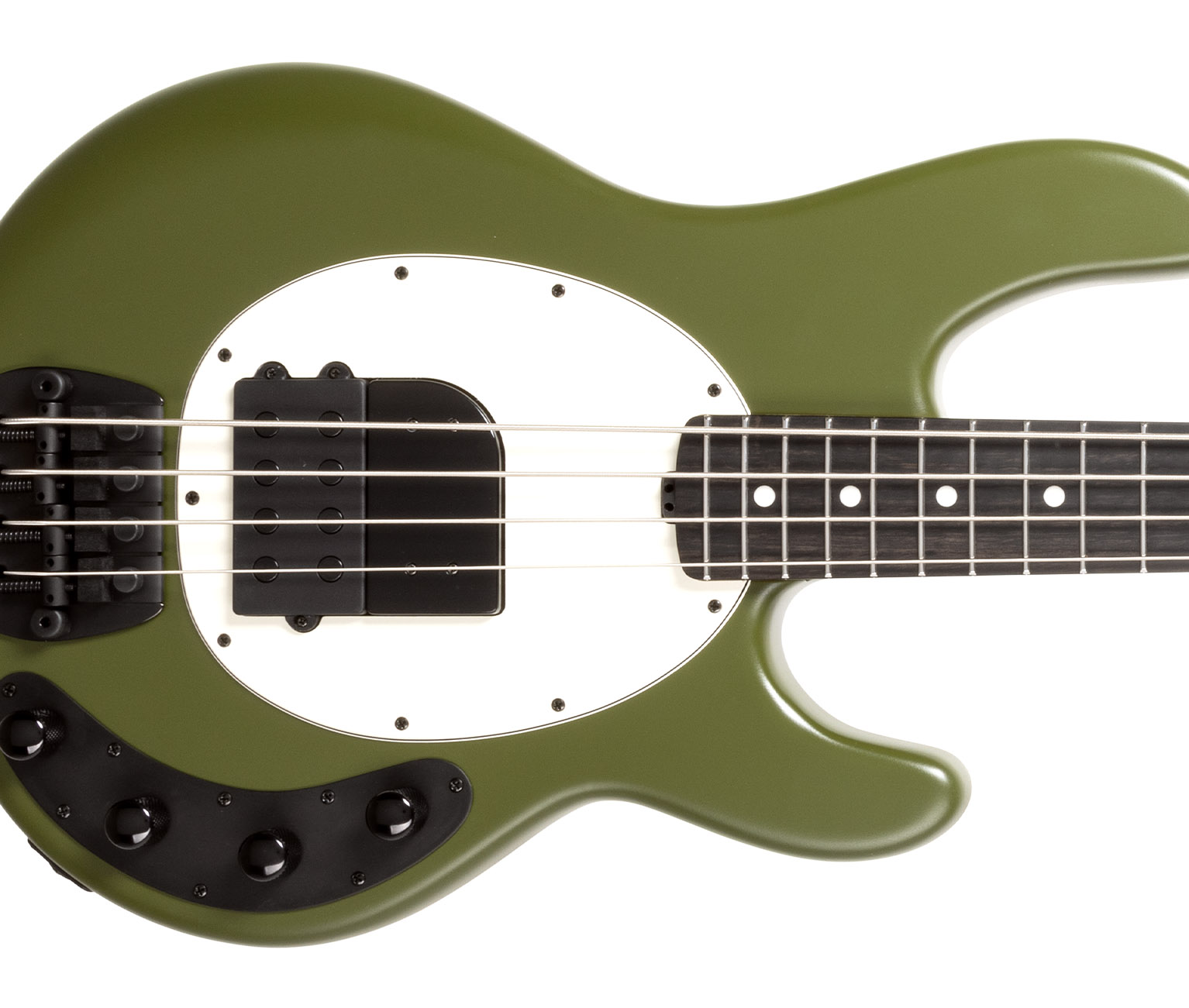

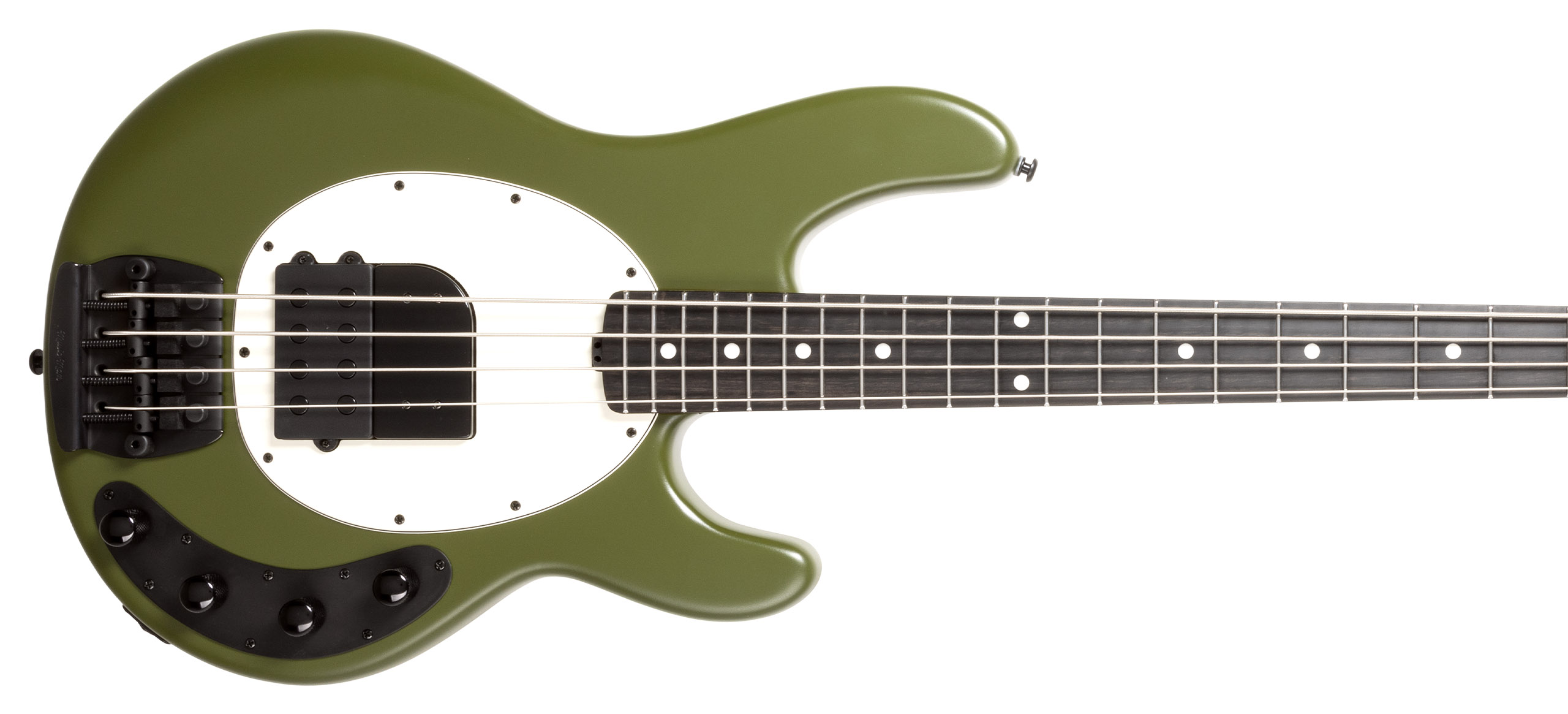

This limited-edition Tim Commerford Artist Series StingRay Bass in Xavier Green, developed in collaboration with legendary bassist Tim Commerford of Rage Against the Machine, Audioslave, and 7D7D, celebrates his long-standing connection with Ernie Ball Music Man. With only 50 units available, each featuring a numbered custom neck plate, this bass combines an ash body, roasted maple neck, and ebony fretboard for rich, balanced tone. Equipped with a neodymium Music Man humbucker, 18-volt preamp, and 3-band EQ, it offers impressive tonal versatility, while the string-through-body bridge with a mute kit enhances sustain and control. Black hardware and a custom, height-adjustable “finger ramp” thumb rest – inspired by Commerford’s playing style – add functionality and comfort.

Tim Commerford Active Logo

オプション

Xavier Green

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Tim Commerford Active Highlights

Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Slide
Tim Commerford Active Highlight
LIMITED QUANTITY RELEASE
THE TIM COMMERFORD ARTIST SERIES BASS IS LIMITED TO ONLY 50 INSTRUMENTS PER COLOR. EACH NECK PLATE IS NUMBERED #1 THROUGH #50
Tim Commerford Active Highlight
STRINGS THROUGH THE BODY BRIDGE
FEATURING THE CLASSIC STRINGS-THROUGH BRIDGE WITH VINTAGE PLATED SADDLES AND ADJUSTABLE MUTE PADS
Tim Commerford Active Highlight
HEIGHT ADJUSTABLE CUSTOM FINGER RAMP
HEIGHT ADJUSTABLE THUMB REST ENABLES A MORE COMFORTABLE HAND POSITION WHEN PLAYING FINGERSTYLE

Engineered To Perform

Active Electronics

The Tim Commerford active bass comes with an active 3-band preamp with 18 volts of extra clean headroom that lets you dial in everything from modern punch to classic, vintage tones.

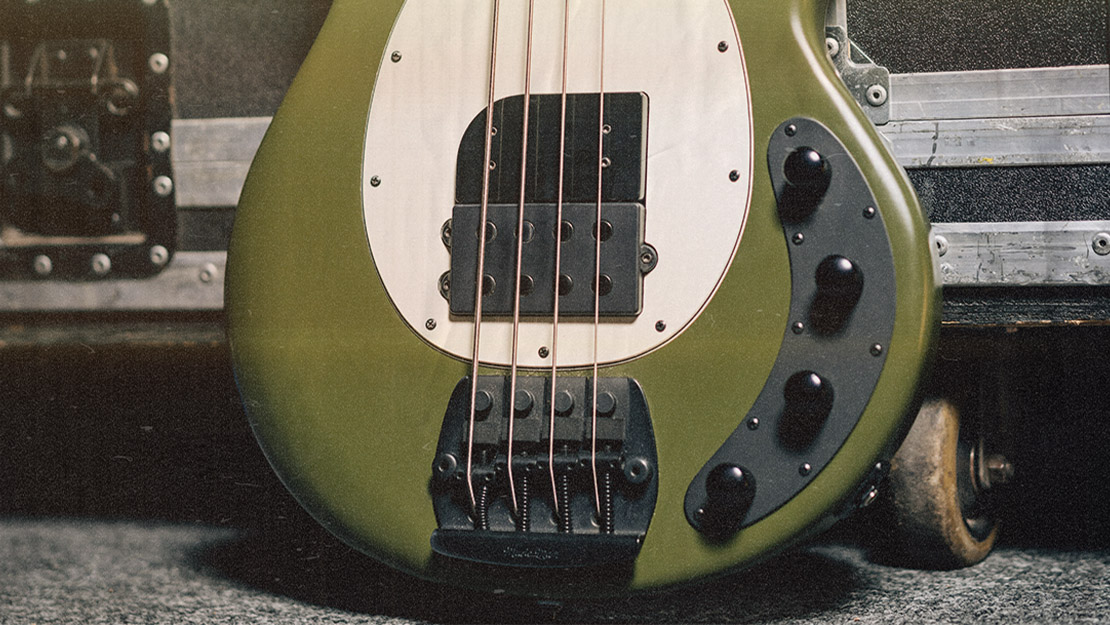

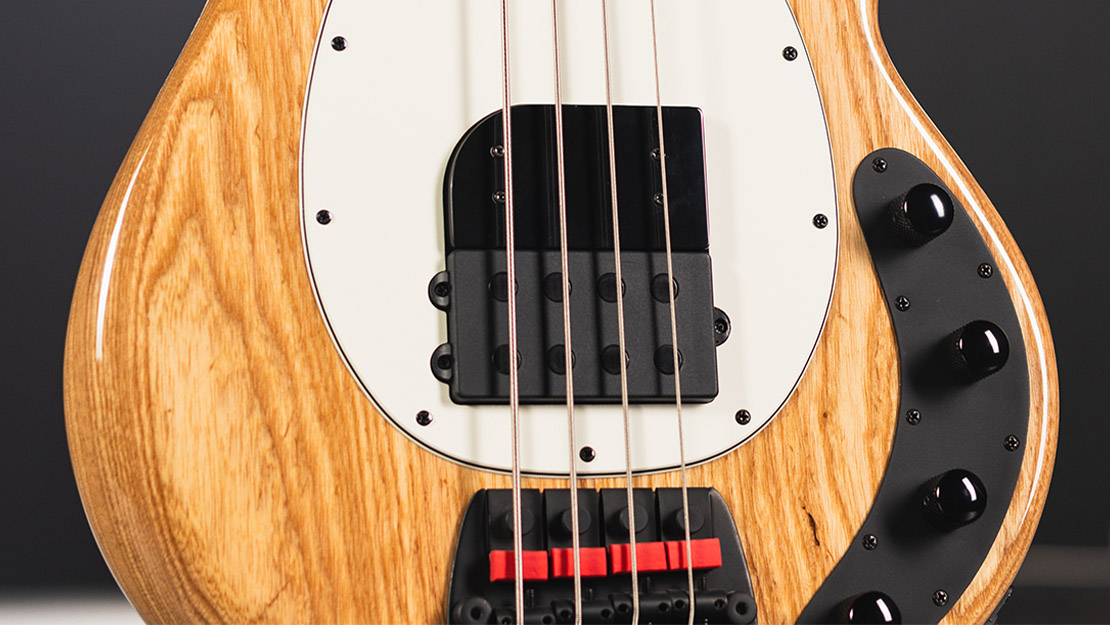

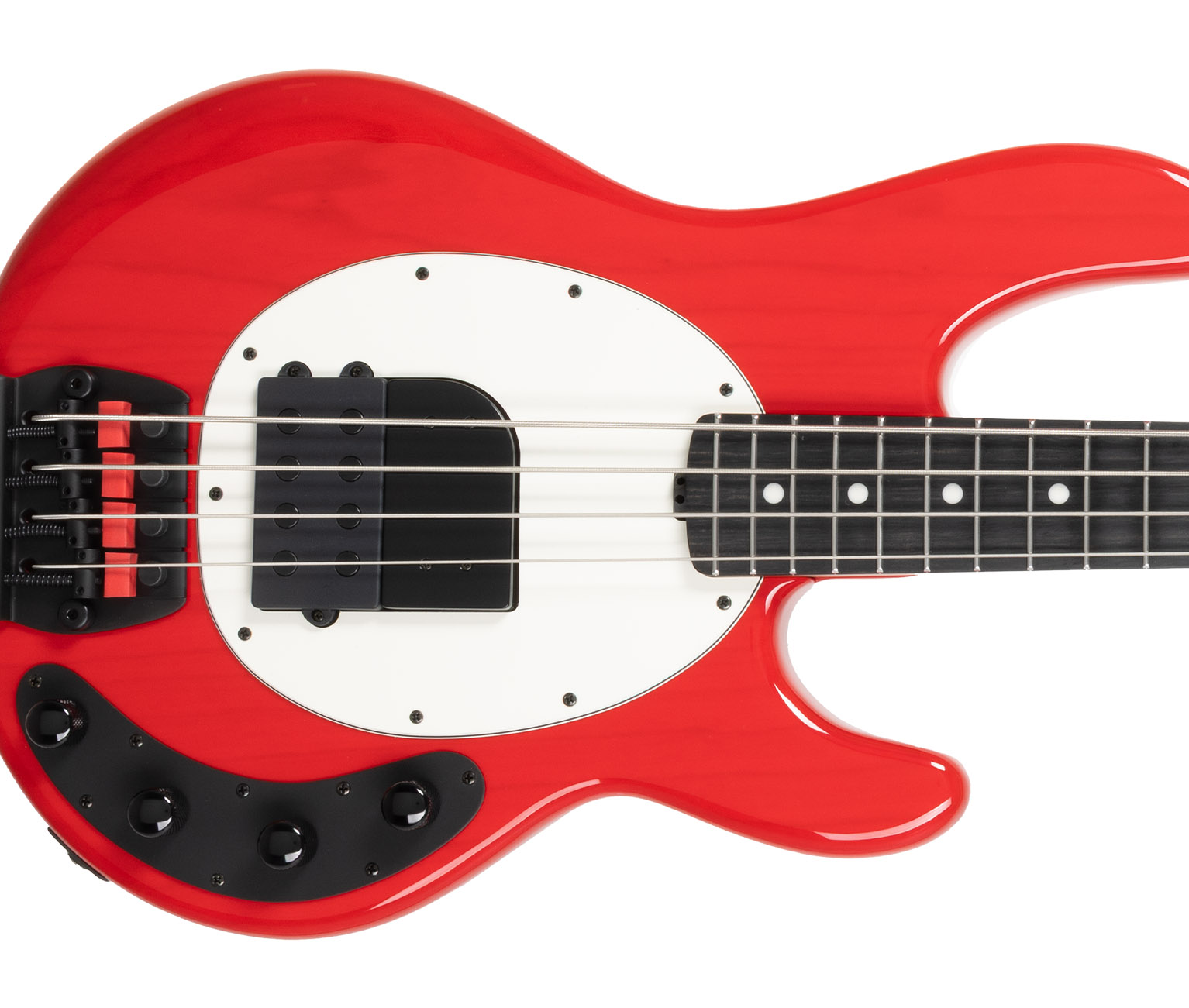

Powerful Neodymium Pickups

The StingRay humbucking pickup features powerful neodymium magnets, bringing you more output and a wider range of sounds. A beveled pickup cover thumb rest and adjustable finger ramp allow a more comfortable fingerstyle hand position playing above or adjacent to the pickup.

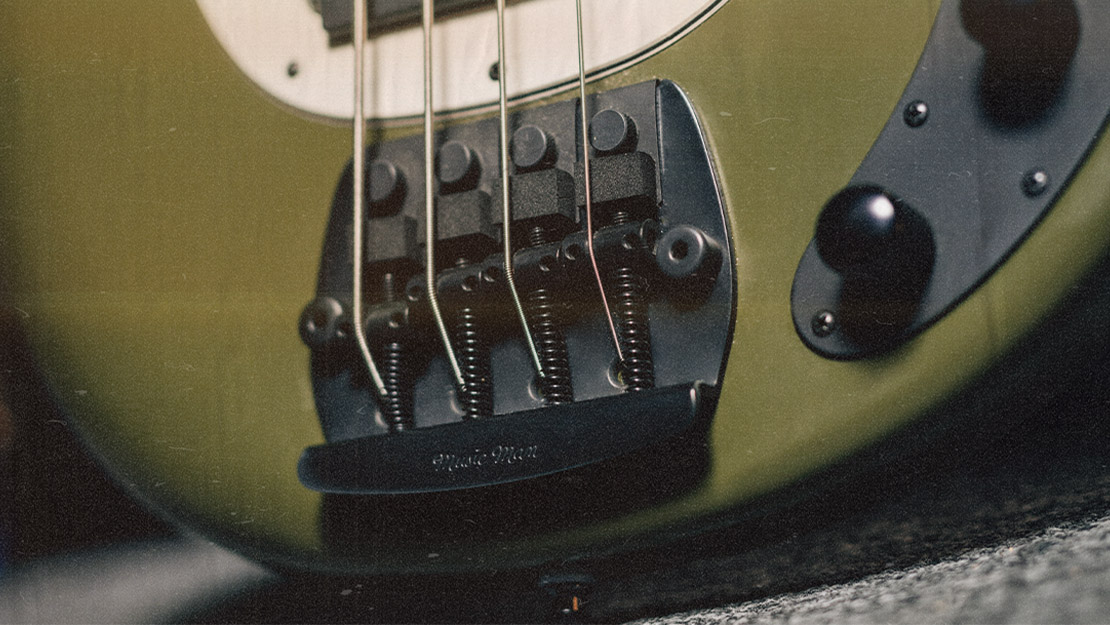

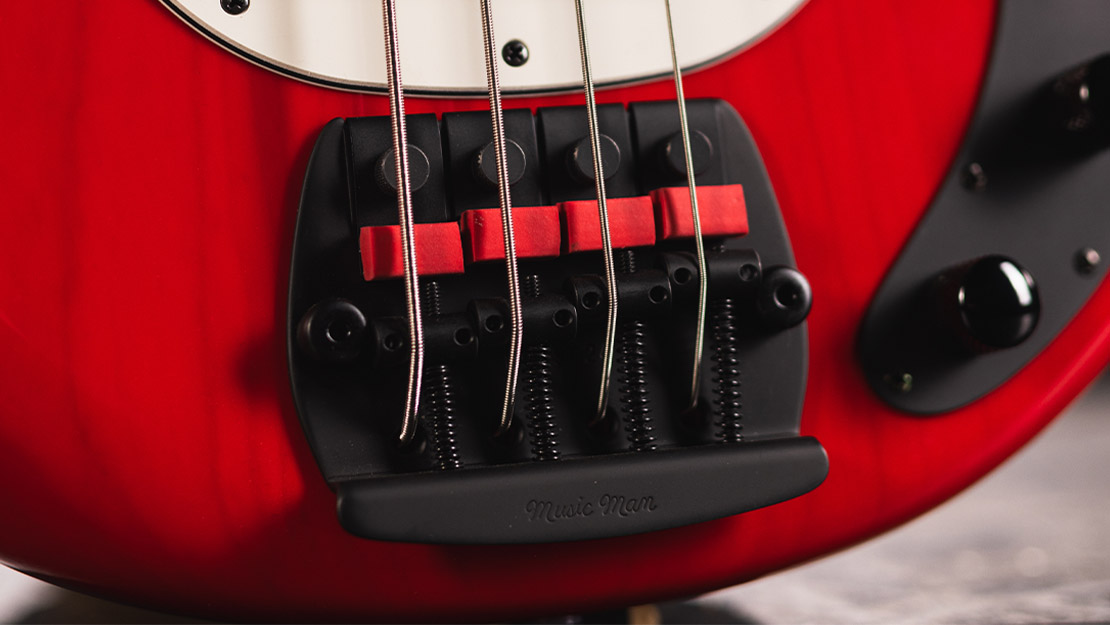

Adjustable Mute Pads

The classic string thru bridge is fitted with individual mute pads allowing you to customize the degree of string dampening to suit your tastes.

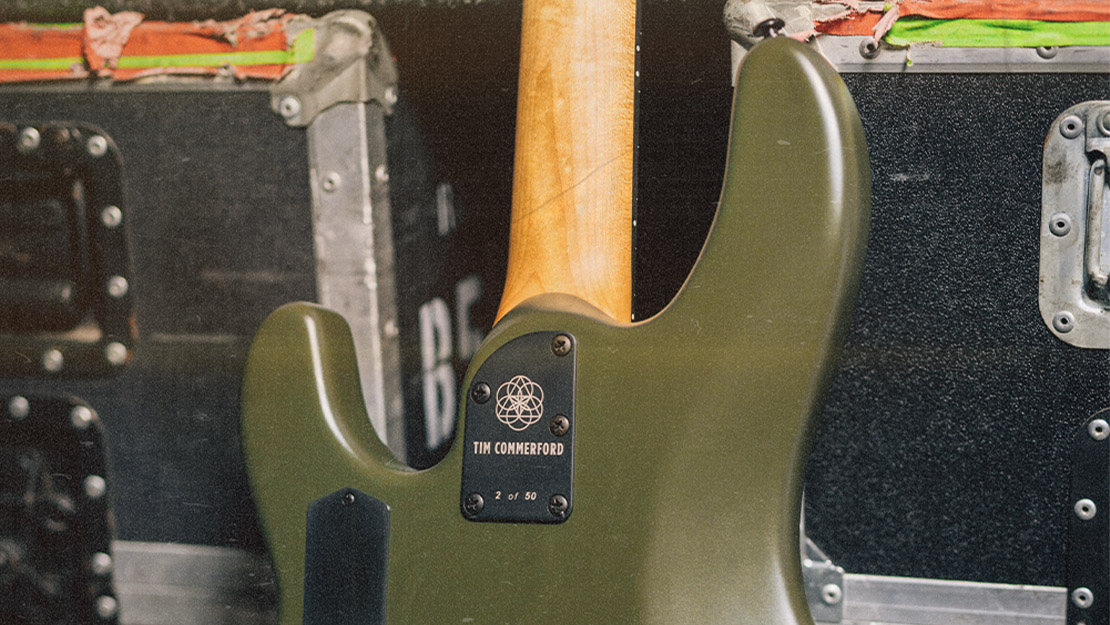

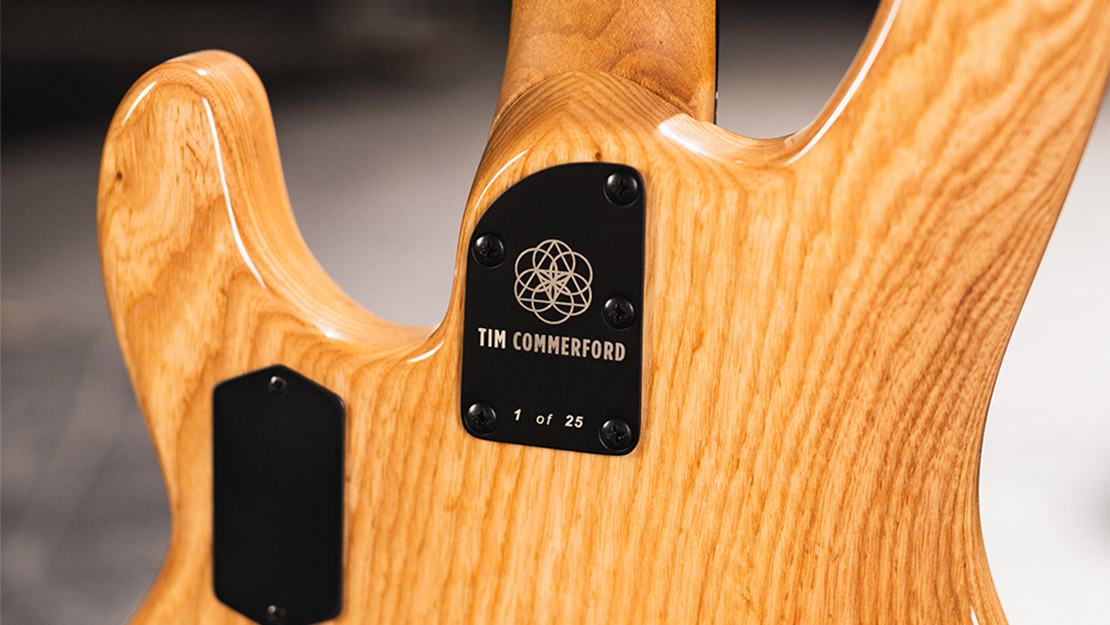

5-bolt Sculpted Neck Joint

All Tim Commerford edition models include popular vintage appointments with updated modern refinements. Oil and wax maple and roasted maple necks are standard, along with a compensated nut and sculpted 5-bolt neck joint for full access to all 22 stainless steel frets.

Specifications, Schematics & More

Specifications Tim Commerford Active Full-Scale
Model Tim Commerford Active Full-Scale
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish Matte polyester
Body Colors Xavier Green
Bridge Music Man® black plated, strings-thru-the-body & hardened steel bridge plate with vintage black plated steel saddles and adjustable mute pads
Pickguard Parchment
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at he last fret
Neck Wood Select Roasted Maple
Fingerboard Ebony
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Matching Headstock
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Black plated aluminum control cover
Controls 3-band active preamp with 18 volts of headroom; vol, treble, mid, bass
Pickups Single Humbucking with Neodymium magnets
Strings 50w-70w-85w-105w (Regular Slinky Bass #2832)

id => 120

iid => 120

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2024-11-18 13:24:29

updated_at => 2024-11-18 13:24:29

Specifications Tim Commerford Active Full-Scale
Model Tim Commerford Active Full-Scale
Order 0
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish Matte polyester
Body Colors Xavier Green
Body Bindings
Bridge Music Man® black plated, strings-thru-the-body & hardened steel bridge plate with vintage black plated steel saddles and adjustable mute pads
Pickguard Parchment
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at he last fret
Neck Wood Select Roasted Maple
Fingerboard Ebony
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Matching Headstock
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Black plated aluminum control cover
Controls 3-band active preamp with 18 volts of headroom; vol, treble, mid, bass
Switching
Pickups Single Humbucking with Neodymium magnets
Left Handed
Strings 50w-70w-85w-105w (Regular Slinky Bass #2832)
