The Retro ‘70s StingRay bass honors Music Man's American craftsmanship of the 1970s with an abundance of vintage-inspired features. The four color options available on the StingRay retro edition—black, white, vintage sunburst, and heritage natural—replicate the look and feel of Music Man's flagship 4-string bass and are each finished with a gloss polyester topcoat. This throwback edition bass is a faithful reproduction of the StingRay's original specifications, with a 21-fret 3-bolt maple neck with micro-tilt adjustment, bullet truss rod adjustment, a strings-through-the-body bridge with adjustable mute pads, and an alnico-loaded humbucking pickup. Overall, this vintage-inspired instrument exudes that 1970s tone and feel while combining the greatest qualities of traditional craftsmanship with contemporary playability and dependability.

Retro '70s StingRay Bass Logo

オプション

Vintage Sunburst

Black

White

Heritage Natural

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

Retro '70s StingRay Bass Highlights

Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Slide
Retro '70s StingRay Bass Highlight

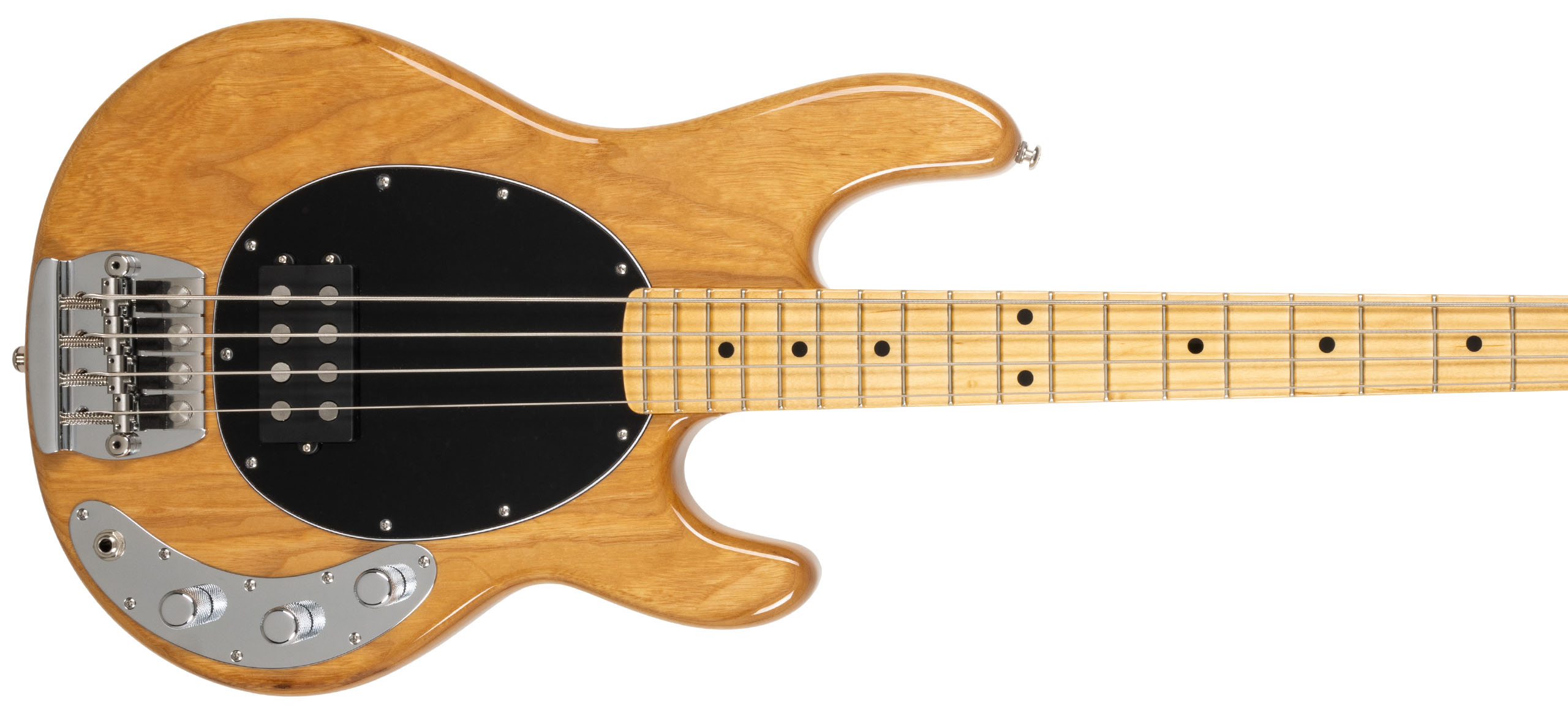

Gloss Polyester Finish
Ash body with a polyester finish.
Retro '70s StingRay Bass Highlight
Vintage Style Alnico Pickup
Humbucking pickup with longer alnico 5 magnets wound with original single poly-nylon wire.
Retro '70s StingRay Bass Highlight
1970s Music Man Logo
Period-correct gold Music Man decal.

The Original

Honoring Music Man's American Craftsmanship of the 1970's with an abundance of vintage-inspired features.

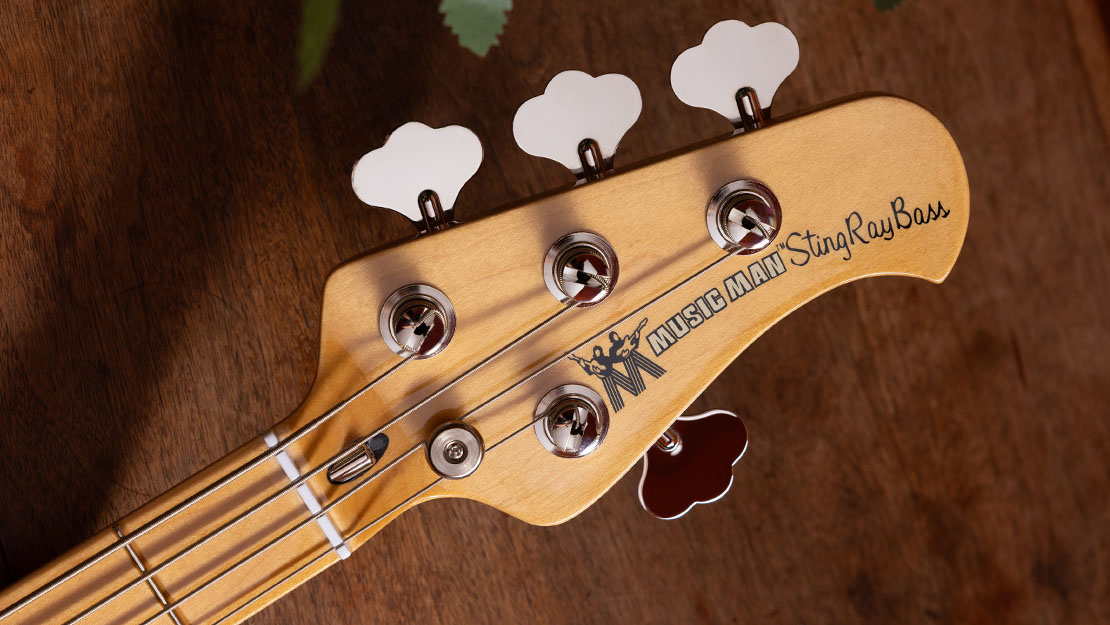

Bullet truss rod

Original pre-EB StingRay bullet truss rod adjustment for proper neck action.

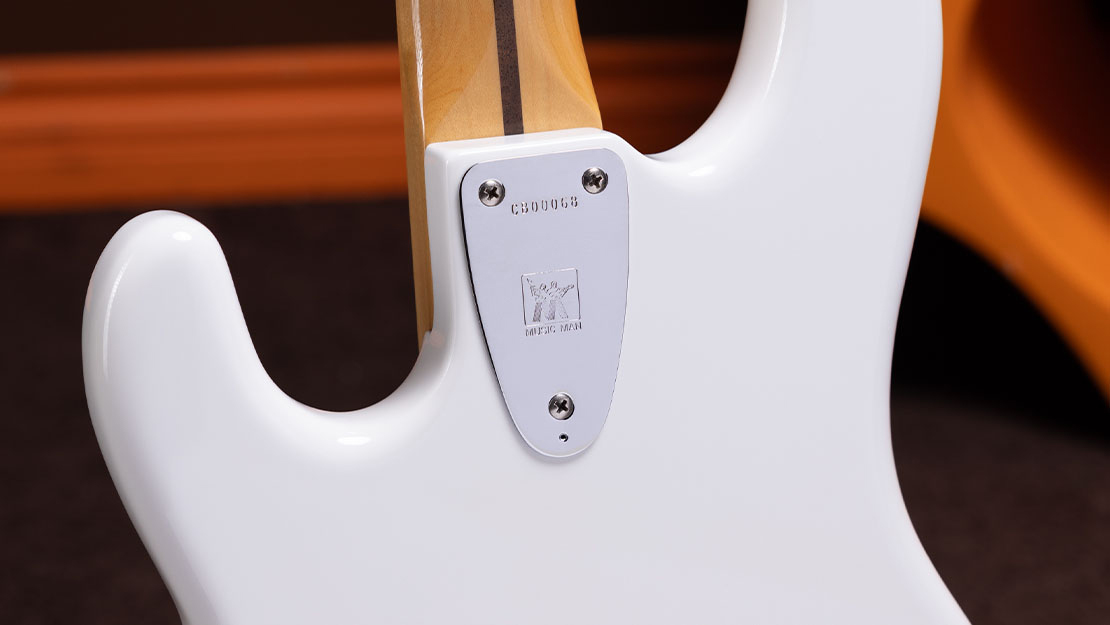

3-bolt neckplate with micro-tilt adjustment

A 3-bolt chrome-plated neck attachment with micro-tilt provides neck angle adjustment without the need for shims. Firm neck and neck pocket tolerances ensure a tight fit with no shifting.

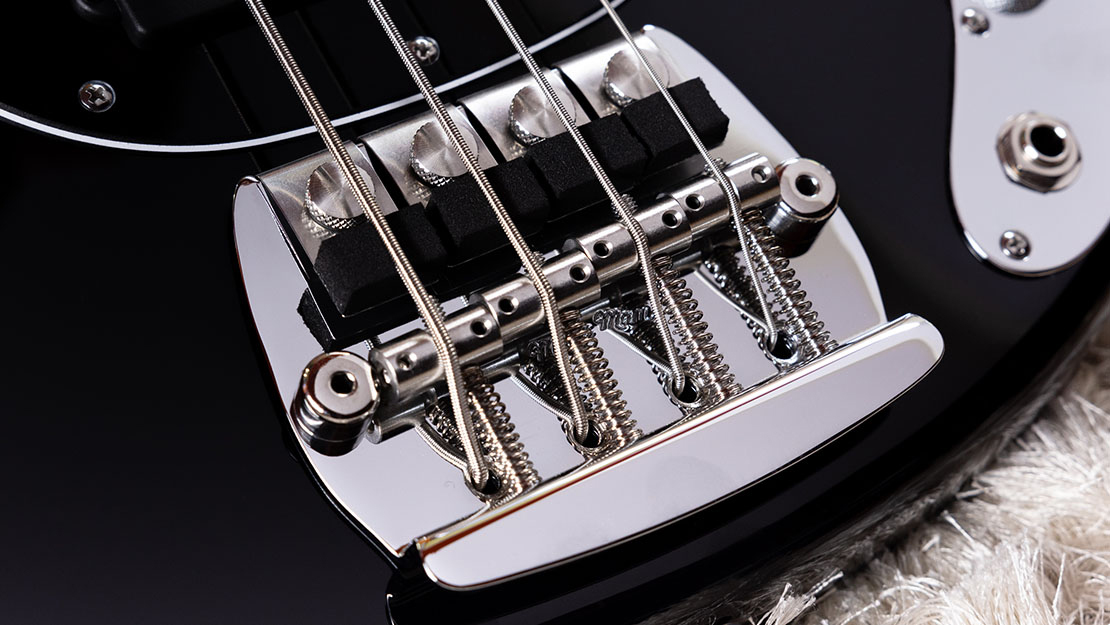

Strings through the body bridge

String-through body bridge with stainless steel saddles replicates the early StingRay design. The original rubber mute pads have been added for a desired muted tone on demand.

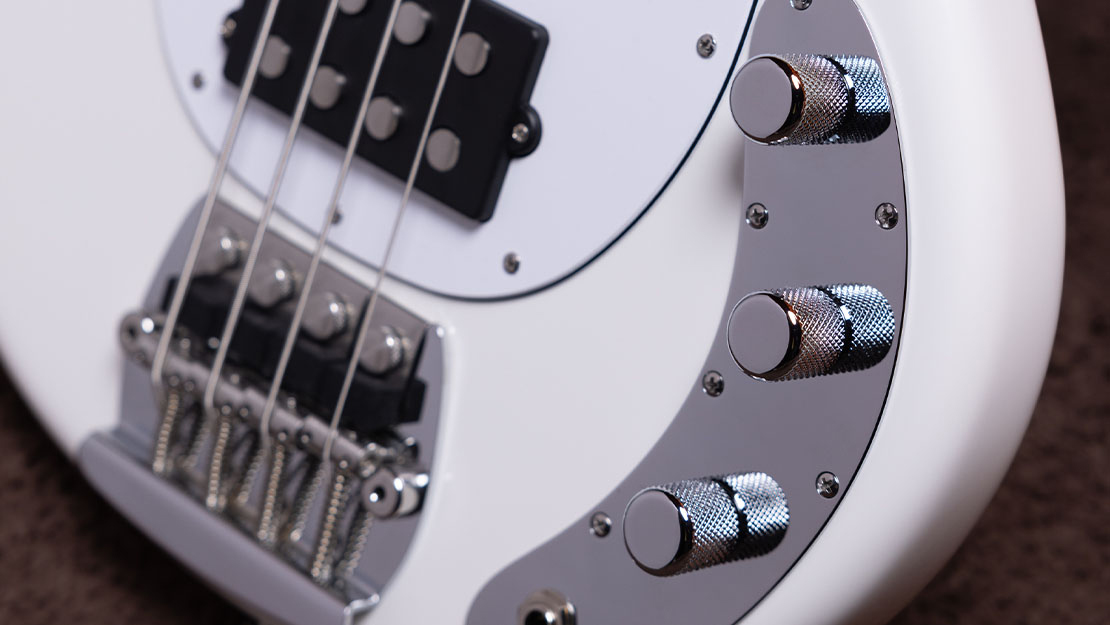

Micropowered preamp

The 2-eq preamp is a hand-soldered circuit board constructed with high-quality components using vintage-correct ceramic disc capacitors.

Specifications, Schematics & More

Specifications Retro '70s StingRay Bass
Model Retro '70s StingRay Bass
Body Wood Ash
Body Finish High Gloss Polyester
Bridge Pre-EB Geometry Music Man® chrome plated, steel bridge plate with vintage stainless steel saddles
Scale Length 34
Neck Radius 7.5"
Frets 21 Nickel Silver
Neck Width 1-11/16" (42.86 mm) at nut 2-1/2" (63.5 mm) at last fret
Neck Wood Maple
Fingerboard Maple
Fret Markers Black Dot
Neck Finish High Gloss Polyester
Neck Colors Slight yellow tint
Tuning Machines Schaller Bass
Neck Attachment 3-Bolt Neckplate With Microtilt Adjustment
Controls Volume, treble and bass
Pickups Vintage style alnico humbucking pickup with long alnico 5 magnets and wound with original single poly-nylon wire.
Left Handed No
Strings 45w-65w-80w-100w (Super Slinky Bass #2834)

id => 114

iid => 114

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2023-10-27 10:52:08

updated_at => 2023-10-27 10:52:08

Specifications Retro '70s StingRay Bass
Model Retro '70s StingRay Bass
Order 0
Size
Body Wood Ash
Body Finish High Gloss Polyester
Body Colors
Body Bindings
Bridge Pre-EB Geometry Music Man® chrome plated, steel bridge plate with vintage stainless steel saddles
Pickguard
Scale Length 34
Neck Radius 7.5"
Headstock Size
Frets 21 Nickel Silver
Neck Width 1-11/16" (42.86 mm) at nut 2-1/2" (63.5 mm) at last fret
Neck Wood Maple
Fingerboard Maple
Fret Markers Black Dot
Neck Finish High Gloss Polyester
Neck Colors Slight yellow tint
Neck Binding
Tuning Machines Schaller Bass
Truss Rod
Neck Attachment 3-Bolt Neckplate With Microtilt Adjustment
Electronic Shielding
Controls Volume, treble and bass
Switching
Pickups Vintage style alnico humbucking pickup with long alnico 5 magnets and wound with original single poly-nylon wire.
Left Handed No
Strings 45w-65w-80w-100w (Super Slinky Bass #2834)
